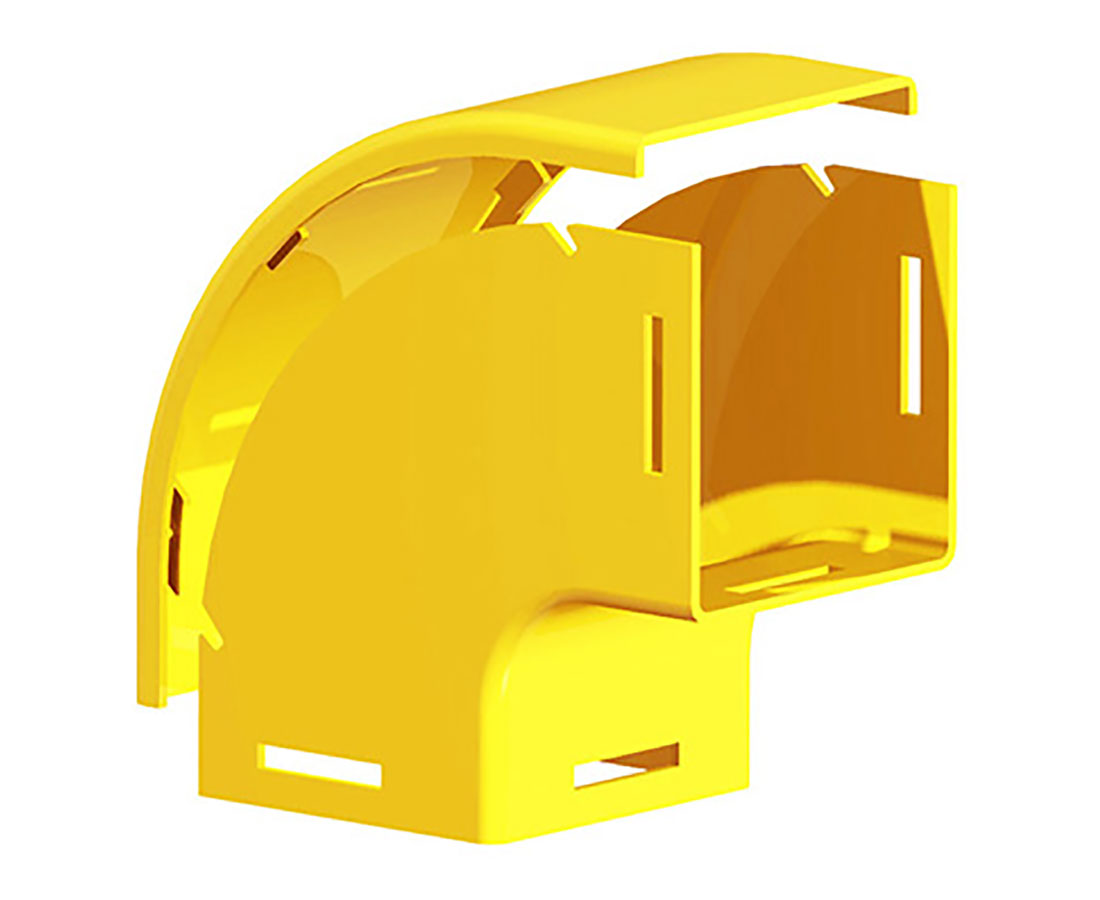

Fiber Raceway Elbow, 4x4, 90 Degree Down, Lid
Fiber Raceway Elbow, 4x4, 90 Degree Down, with Lid, Yellow
- Availability
- EMEA | Americas
- Status
- Active
- Orderable items
- 1
Part numbers
FRCE3YL9D is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| FRCE3YL9D | Yellow | 4.330 in | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|
Construction
| Weight | 0.683 lbs |
|---|---|
| Overall Height | 6.692 in (169.977 mm |
| Overall Width | 6.692 in |
| Overall Length | 4.330 in |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Material | Fire retardant plastic, Halogen free, UL94-VO rated |
|---|
Product Notes
| Notes | The 90-degree down elbow is a 100mm vertical drop off with an external lid, so that optical fibre cords within the elbow can be accessed. This is usually installed where optical fibre cords are to be dropped off below. There are two 100mm outlets, which use either: a standard joiner or a slotless joiner. |
|---|
History
| Update and Revision | Revision Number: 0.72 Revision Date: 03-28-2024 |
|---|
