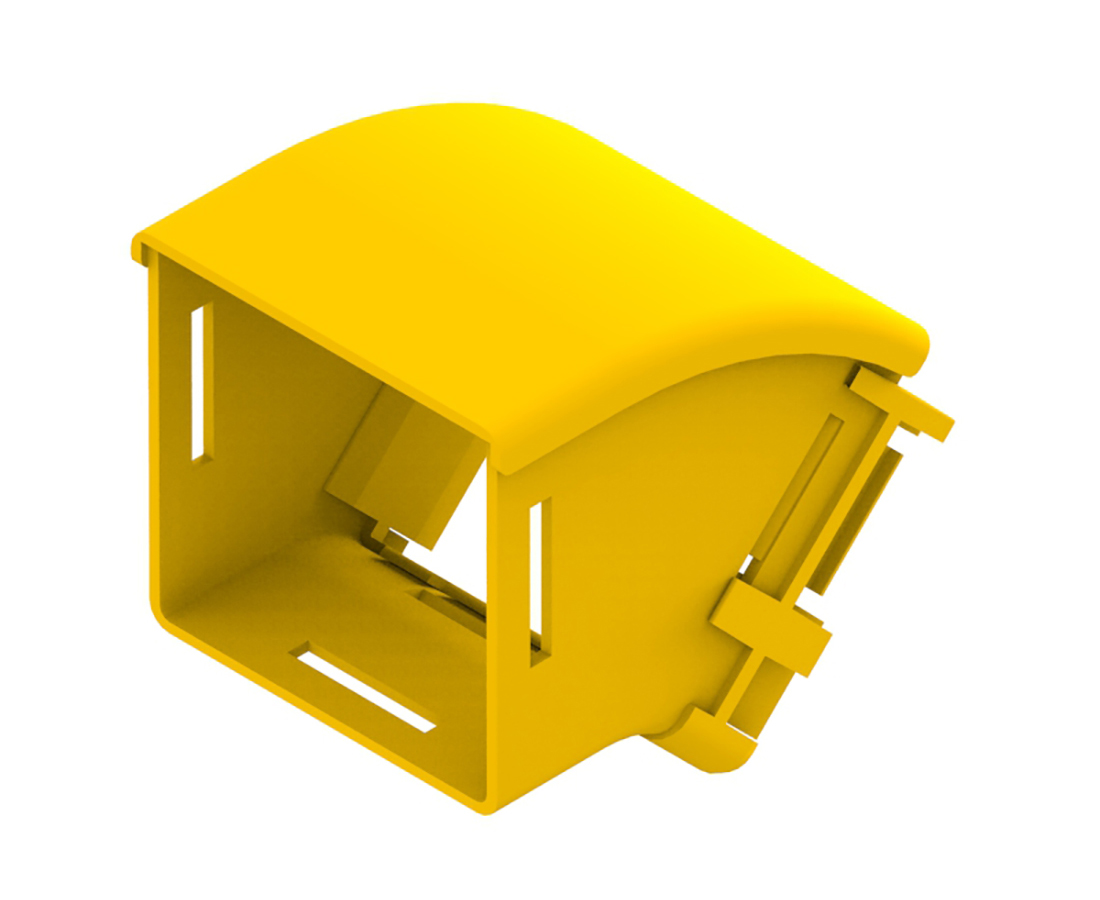

Fiber Raceway Elbow, 4x4, 45 Degree Down
Fiber Raceway Elbow, 4x4, 45 Degree Down, with Lid, Yellow
- Availability
- EMEA | Americas
- Status
- Active
- Orderable items
- 1
Part numbers
FRCE3YL4D is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| FRCE3YL4D | Yellow | 5.393 in | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|
Construction
| Weight | 0.388 lbs |
|---|---|
| Overall Height | 4.527 in (114.986 mm |
| Overall Width | 4.409 in |
| Overall Length | 5.393 in |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Material | Fire retardant plastic, Halogen free, UL94-VO rated |
|---|
Product Notes
| Notes | This 100-mm down elbow is a 45-degree angled lead off with an external lid, so that new optical fibre cords can be installed within the elbow and existing optical fibre cords removed, where necessary. It is usually used where an angular duct feed off or an alignment adjustment is needed. There are two 100-mm outlets. One is equipped with a modified slotless joiner. (The special joiner provides a smooth internal curve for optical fibre cords.) The other side uses either a: standard joiner or a slotless joiner; that are available separately. |
|---|
History
| Update and Revision | Revision Number: 0.72 Revision Date: 03-28-2024 |
|---|
