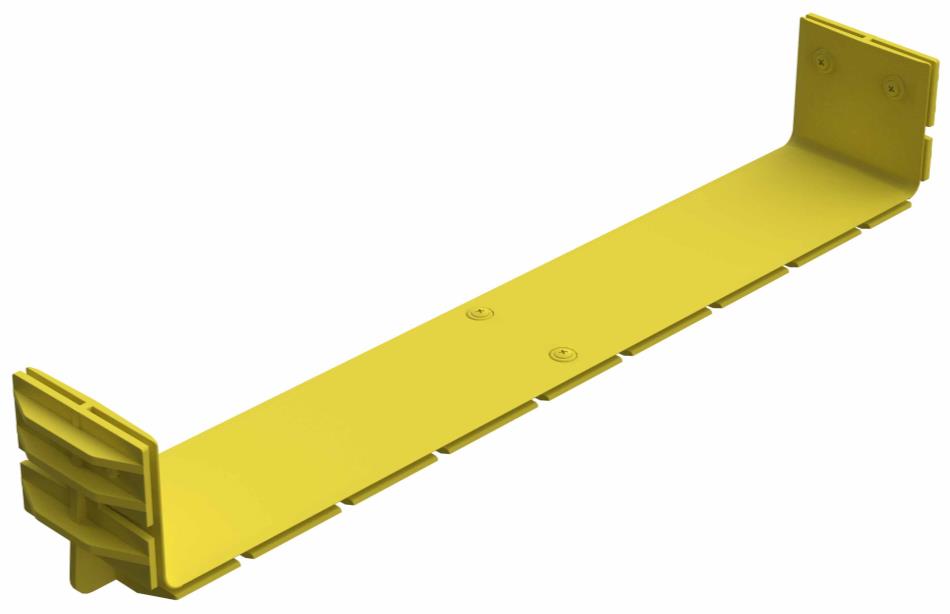

SLOTLESS JOINER, 600 mm DUCT
Fiber Raceway Slotless Joiner, 4x24 (100mm x 600mm), Standard, Yellow
- Availability
- EMEA | Americas
- Status
- Active
Specifications
Product Overview
| Environmental Space | Indoor |
|---|
Construction
| Weight | 1.852 lbs |
|---|---|
| Overall Height | 4.094 in |
| Overall Width | 3.937 in |
| Overall Length | 25.354 in |
Inner Jacket
| Inner Jacket | Inner Jacket |
|---|
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Material | Fire retardant plastic, Halogen free, UL94-VO rated |
|---|
Product Notes
| Notes | This joiner is used to link standard 600mm straight ducting with any duct components. It provides a smooth & strong joint. Typical other components are; horizontal elbows and 600mm to 300mm reducers etc.; which require a joiner at each interface. The joiner is first fitted to the square ends of adjacent 600mm duct (or components) and 6 x Ø8mm holes are drilled through both duct sides and ends, matching the holes in the joiner. Then a small Ø8mm screw rivet (supplied) is inserted in each hole. The end of the screw rivet expands to make a mechanically strong and permanent joint. |
|---|
History
| Update and Revision | Revision Number: 0.2 Revision Date: 11-05-2025 |
|---|
