EDAV1xx2-Series

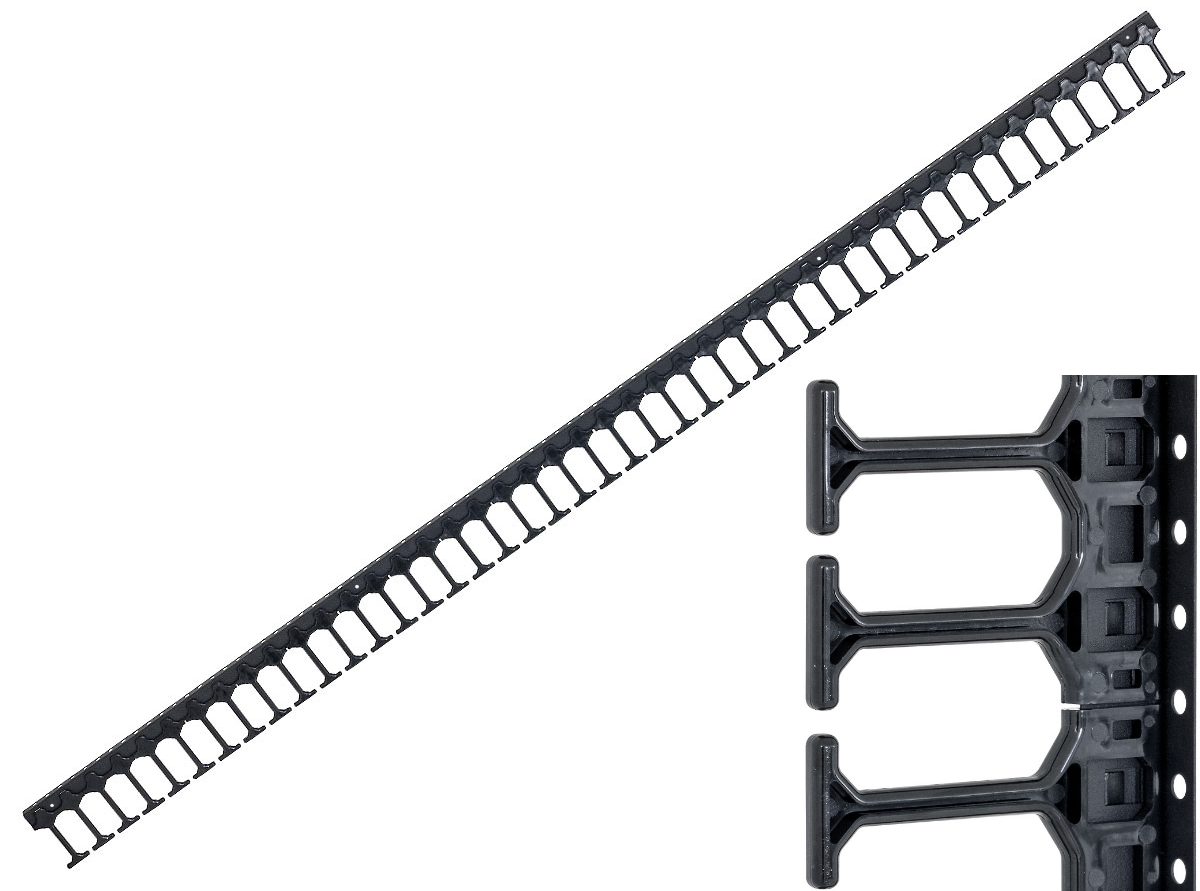

Vertical Cable Management Single finger strip for E-Series.
- Availability
- EMEA
- Status
- Active
- Orderable items
- 9
Part numbers
CABLE MAN VERT SINGLE E-SERIES is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Height | Depth | EDC / ESN / ESH Application Min. cabinet size | Order |
|---|---|---|---|---|
| EDAV1152 | 531 mm | 105 mm | 15U | Order online |
| EDAV1182 | 620 mm | 105 mm | 18U | Order online |
| EDAV1222 | 884 mm | 105 mm | 22U | Order online |
| EDAV1272 | 1062 mm | 105 mm | 27U | Order online |
| EDAV1322 | 1240 mm | 105 mm | 32U | Order online |
| EDAV1372 | 1504 mm | 105 mm | 37U | Order online |
| EDAV1422 | 1681 mm | 105 mm | 42U | Order online |
| EDAV1452 | 1858 mm | 105 mm | 45U | Order online |
| EDAV1472 | 1954 mm | 105 mm | 47U | Order online |
Specifications
Application
| Environmental Space | Indoor |
|---|
Construction and Dimensions
| Overall Width | 20 mm |
|---|---|
| Overall Depth | 105 mm |
Environmental and Overall Characteristics
| Color | Black |
|---|---|
| Material | Metal and plastic moulded fingers on one side |
Standards
| EU Directive 2011/65/EU (RoHS 2) | Yes |
|---|---|
| MII Order #39 (China RoHS) | EUP 50 |
Related Part Numbers
| Included Parts | cable manager and bolts for installation |
|---|---|
| Packaging | Individually packaged |
| Update and Revision | Revision Number: 0.168 Revision Date: 08-05-2025 |
