EDAV5xx0-Series
Vertical Lacing Panel For E-Series END, ESN and ESH.
- Availability
- EMEA
- Status
- Active
- Orderable items
- 5
Part numbers

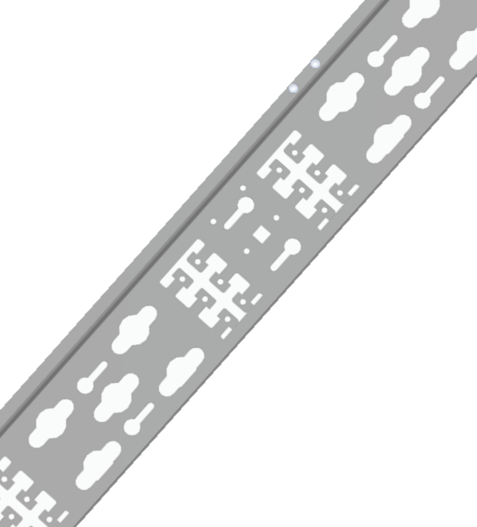

CABLE MAN VERT LACING E-SERIES is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Height | Min. cabinet size ESN / ESH / END 800 wide | Min. cabinet size END 600 wide | Order |
|---|---|---|---|---|
| EDAV5320 | 1225 mm | 32U | 37U | Order online |
| EDAV5370 | 1450 mm | 37U | 42U | Order online |
| EDAV5420 | 1695 mm | 42U | 47U | Order online |
| EDAV5450 | 1805 mm | 45U | N/A | Order online |
| EDAV5470 | 1895 mm | 47U | N/A | Order online |
Specifications
Application
| Environmental Space | Indoor |
|---|
Construction and Dimensions
| Overall Width | 85 mm |
|---|
Environmental and Overall Characteristics
| Color | Metallic |
|---|---|
| Material | Steel |
Standards
| EU Directive 2011/65/EU (RoHS 2) | Yes |
|---|---|
| MII Order #39 (China RoHS) | EUP 50 |
Related Part Numbers
| Included Parts | The package comes with screws for installation |
|---|---|
| Packaging | Individually packed. |
| Update and Revision | Revision Number: 0.173 Revision Date: 10-28-2025 |
