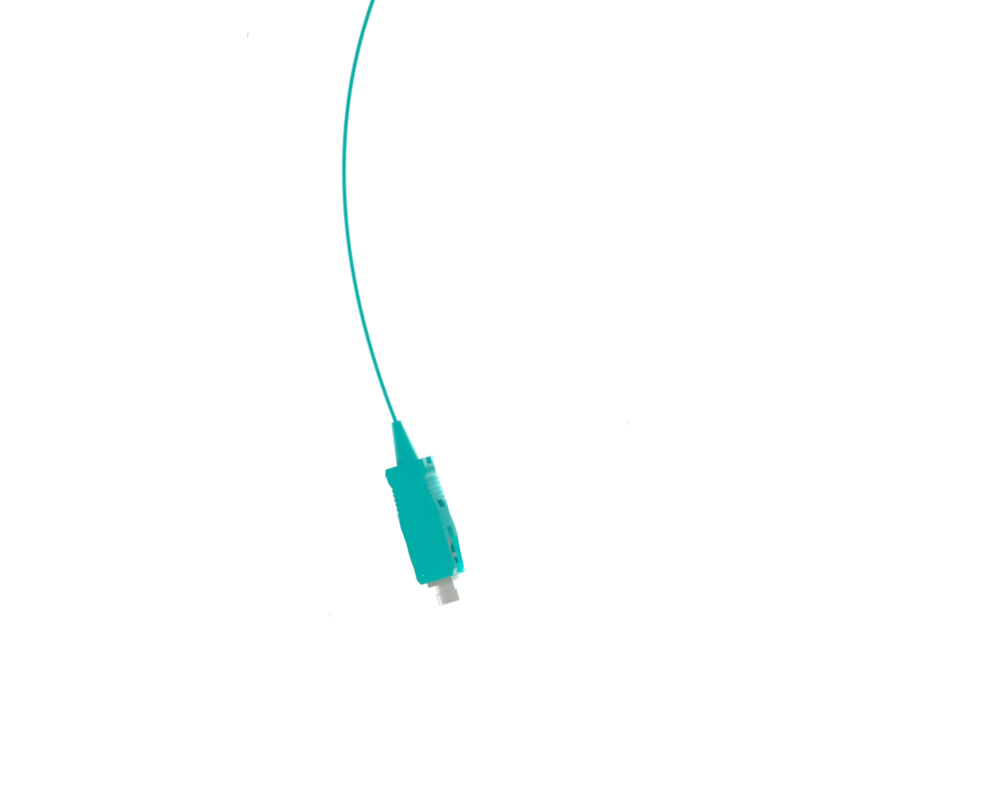

FX FIELD-TERMINATION PIGTAIL, OM3, SC SIMPLEX
FX FIELD-TERMINATION PIGTAIL, OM3, SC SIMPLEX, TIGHT BUFFER 900 UM, SINGLE-ENDED, 2M, AQUA BUFFER, AQUA CONNECTOR
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Data Centers, Main Equipment Rooms and Telecommunications Rooms |
|---|
Fiber Specifications
| Fiber Type | OM3 |
|---|---|
| Fiber Core Diameter | 50 μm |
| Fiber Count | 01 |
| Fiber Color Code | TIA-598-D |
Physical Specifications
Connectors
| Description | Connector A (Inside End) |
|---|---|
| Type | SC Simplex |
| Housing Material | Plastic |
| Housing Color | Aqua |
| Ferrule | Zirconia Ceramic |
| Boot Material | Rubber |
| Boot Color | Aqua |
Assembly Cable
| Cable Nominal OD | 0.9 mm |
|---|
Measurement
| Overall Assembly Length | 2 meters |
|---|---|
| Packaging | Individually packaged in a plastic bag. |
Overall Length Tolerances
| Range | Tolerance |
|---|---|
| 0 to 2 meters | +0.2 / -0 meter |
| 2.1 to 4.9 meters | +0.3 / -0 meter |
| 5 to 40 meters | +0.4 / -0 meter |
| over 40 meters | +1.0% / -0% |
Armor Specifications
| Armor Type and Material | No Armor |
|---|
Optical Characteristics
Fiber Connector Performance
| Description | Connector A (Inside End) |
|---|---|
| Connector Type | SC Simplex |
| Max. Insertion Loss | 0.25 dB |
| Min. Return Loss | -30 dB |
Temperature Range
| Operating Temperature Range | -10°C to +60°C |
|---|---|
| Storage Temperature Range | -10°C to +60°C |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| UL Rating | Non Rated |
| TIA/EIA Compliance | TIA/EIA 568.3 |
| European Directive Compliance | EU Directive 2011/65/EU (RoHS 2) |
| MII Order #39 (China RoHS) | EUP 50 |
| Other Standard Compliance(s) | ACMA |
Product Notes
| Related Parts | FiberExpress Adapter Strips, FiberExpress Manager Modules and FiberExpress Ultra Frames |
|---|
History
| Update and Revision | Revision Number: 0.82 Revision Date: 02-27-2026 |
|---|
