FMT OS2 MPO12(M-M) B 48F VARIOUS LENGTH OFNP MD_2.0 1.0xINLINE YL

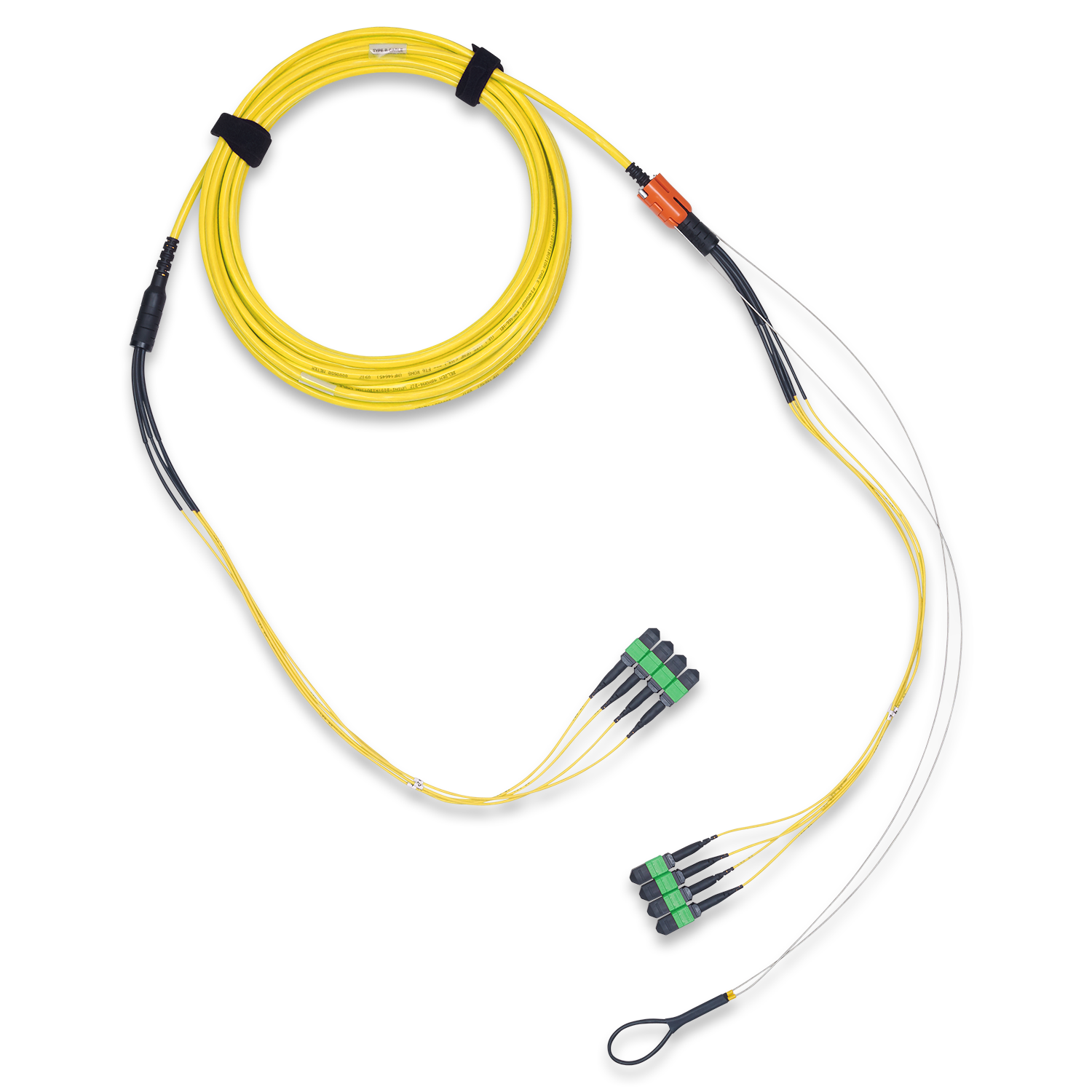

FX MPO TRUNK, OS2, MPO-12(MALE TO MALE), TYPE-B, 4 MPO (48 FIBERS), VARIOUS LENGTH, OFNP, MINI-DISTRIBUTION (2.0MM SUB-UNITS), FAN-OUT: 1.0M x IN-LINE, YELLOW JACKET
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Data Center, LAN, Equipment Room, Telecommunication room, Workstation Area |
|---|
Fiber Specifications
| Fiber Type | OS2 |
|---|---|
| Fiber Color Code | TIA-598-D |
Physical Specifications
Connectors
| Description | Type | Boot Material | Boot Color |
|---|---|---|---|
| Connector A (Inside End) | MPO-12 Male | Rubber | Black |
| Connector B (Outside End) | MPO-12 Male | Rubber | Black |
Fan-out (Legs)
| Description | Transition | Length (m) | Geometry |
|---|---|---|---|
| Connector A (Inside End) | LPM | 1.0 m | In-Line |
| Connector B (Outside End) | LPM | 1.0 m | In-Line |
Assembly Cable
| Cable Nominal OD | 2.0 mm |
|---|---|
| Jacket Color | Yellow |
Measurement
| Overall Assembly Length | xxx meters |
|---|
Overall Length Tolerances
| Range | Tolerance |
|---|---|
| 0 to 2 meters | +0.2 / -0 meter |
| 2.1 to 4.9 meters | +0.3 / -0 meter |
| 5 to 40 meters | +0.4 / -0 meter |
| over 40 meters | +1.0% / -0% |
Inner Jacket
| Inner Jacket | Inner Jacket |
|---|
Optical Characteristics
| Polarity Identification | Type-B |
|---|
Fiber Connector Performance
| Description | Connector Type | Max. Insertion Loss | Min. Return Loss |
|---|---|---|---|
| Connector A (Inside End) | MPO-12 Male | 0.35 dB | 60 dB |
| Connector B (Outside End) | MPO-12 Male | 0.35 dB | 60 dB |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 15x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 10x Cable OD |
Mechanical Tests
| Description | Requirement/Value |
|---|---|
| Cable Min. Bend Radius Installation (Short Term) | 15x Cable OD |
| Cable Min. Bend Radius Operation (Long Term) | 10x Cable OD |
Temperature Range
| Operating Temperature Range | -10°C to +60°C |
|---|---|
| Storage Temperature Range | -10°C To +60°C |
Armor Specifications
| Armor Type and Material | No Armor |
|---|
Standards and Compliance
| UL Flammability | OFNP |
|---|---|
| UL Rating | Plenum |
| TIA/EIA Compliance | TIA/EIA 568.3 |
| MII Order #39 (China RoHS) | EUP 50 |
| Safety Listing | ACMA |
Product Notes
| Related Parts | DCX system, FX UHD Patch Panels, ECX Patch Panels, FX Patch cords, FX MPO Trunks, FX Multi-fiber Trunks |
|---|
History
| Update and Revision | Revision Number: 0.25 Revision Date: 10-21-2025 |
|---|
