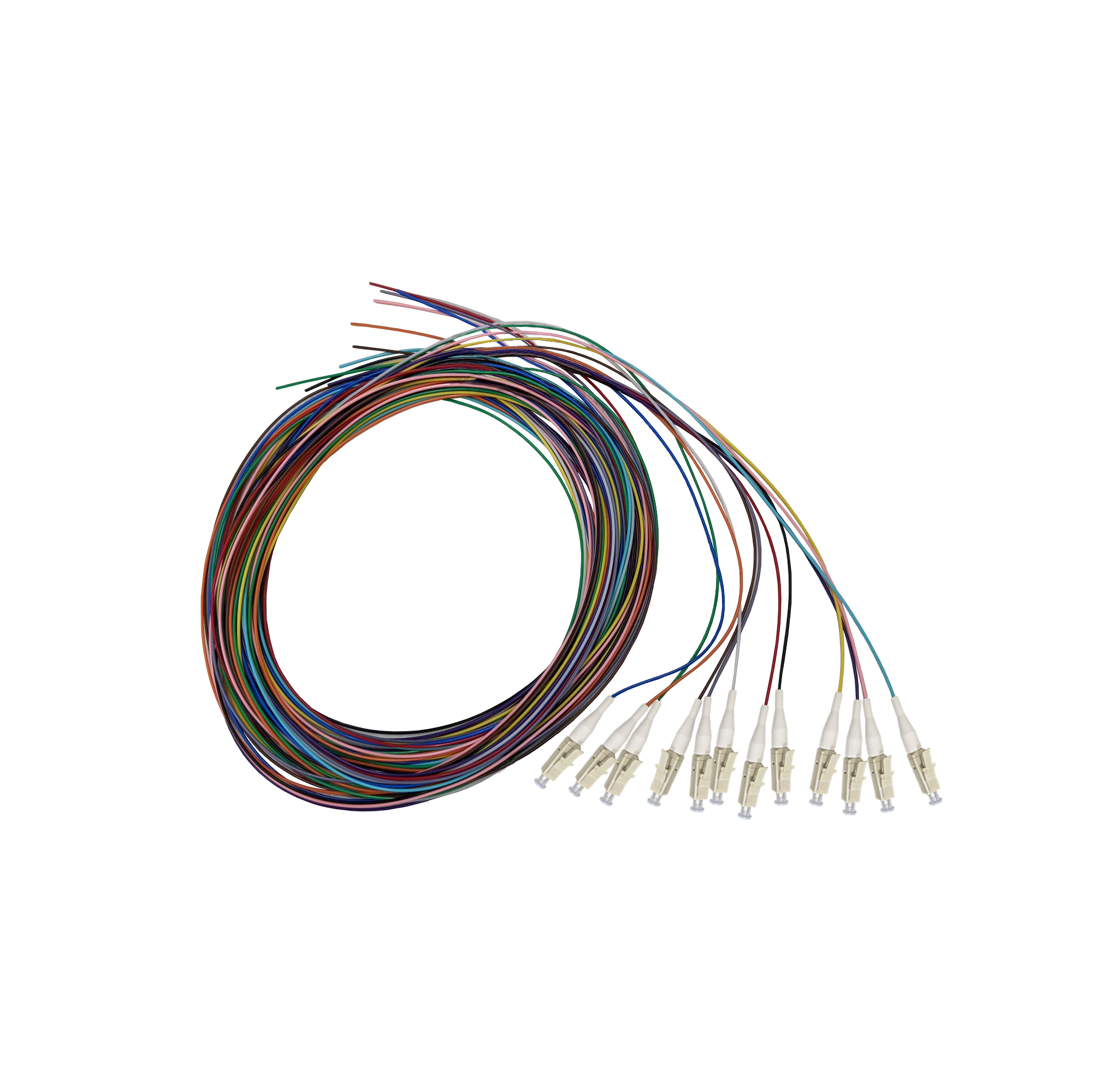

FiberExpress Pigtails, OM3, LC Simplex, 900μm Tight buffer (PVC), Fusion Pigtails, Rainbow 12 Pack, 2 Meter
FiberExpress Pigtails, OM3, LC Simplex, 900μm Tight buffer (PVC), Fusion Pigtails, Rainbow 12 Pack, 2 Meter
- Availability
- Asia Pacific
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Data Centers, Main Equipment Rooms, Telecommunications Rooms and Work Area |
|---|
Fiber Specifications
| Fiber Type | OM3 |
|---|---|
| Fiber Color Code | TIA-598-D |
Physical Specifications
Connectors
| Description |
|---|
Measurement
| Packaging | Packaged 12 units per bag |
|---|
Optical Characteristics
Fiber Connector Performance
| Description | LC Simplex |
|---|---|
| Max. Insertion Loss | 0.25 dB |
| Min. Return Loss | 25 dB |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Standards and Compliance
| TIA/EIA Compliance | TIA 604-10, TIA 568.3-D |
|---|---|
| ISO/IEC Compliance | IEC 61754-20, IEC 60793-2-10 |
Product Notes
| Related Parts | FiberExpress Adapter Strips, FiberExpress Manager Modules and FiberExpress Ultra Frames and Cassettes, Workstation Outlets |
|---|---|
| Notes | Connector Polish Type : PC, Fiber color code : Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
History
| Update and Revision | Revision Number: 0.62 Revision Date: 12-07-2023 |
|---|
