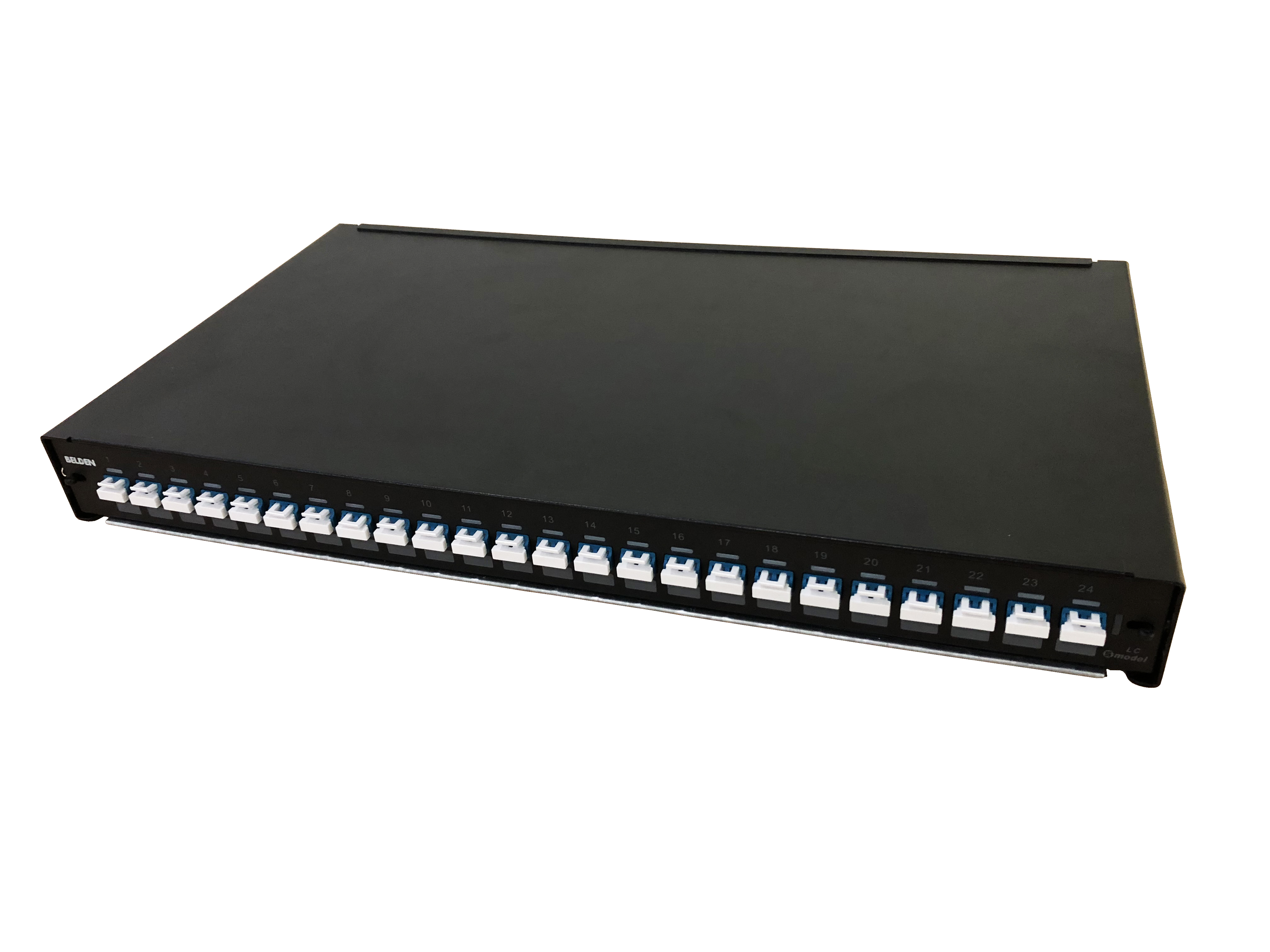

ProRMS - 24 Ports, Single-Mode, Fiber Patch Panel
ProRMS - Single Mode Fiber Patch Panel, LC Duplex adapter preloaded
- Availability
- Asia Pacific
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Horizontal and building cabling for Intelligent Patching. Backbone, Telecommunications Room, Main Distribution Room, Workstation Area. |
|---|
Physical Characteristics (Overall)
| Overall Height | 44.5 mm |
|---|---|
| Overall Width | 483 mm |
| Overall Depth | 240 mm |
| Packaging | Individually packaged in a cardboard box |
Construction and Dimensions
| Max Capacity | 24 ports (48 fibers) |
|---|
Related Part Numbers
| Related Parts | RJ45 to RJ45 copper patch cord for the control purpose; |
|---|
Product Notes
| Included Parts | 2 Brackets 12 Cable Ties; 4 M6 cage nuts and 4 M6 screws; 2 PG19 cable glands 3 PG9 cable glands; 1 splice tray |
|---|---|
| Notes | Adapter type: Single mode; Adapter color: Blue; Adapter sleeve material: Split Zirconia Ceramic sleeves |
History
| Update and Revision | Revision Number: 0.23 Revision Date: 10-16-2022 |
|---|
