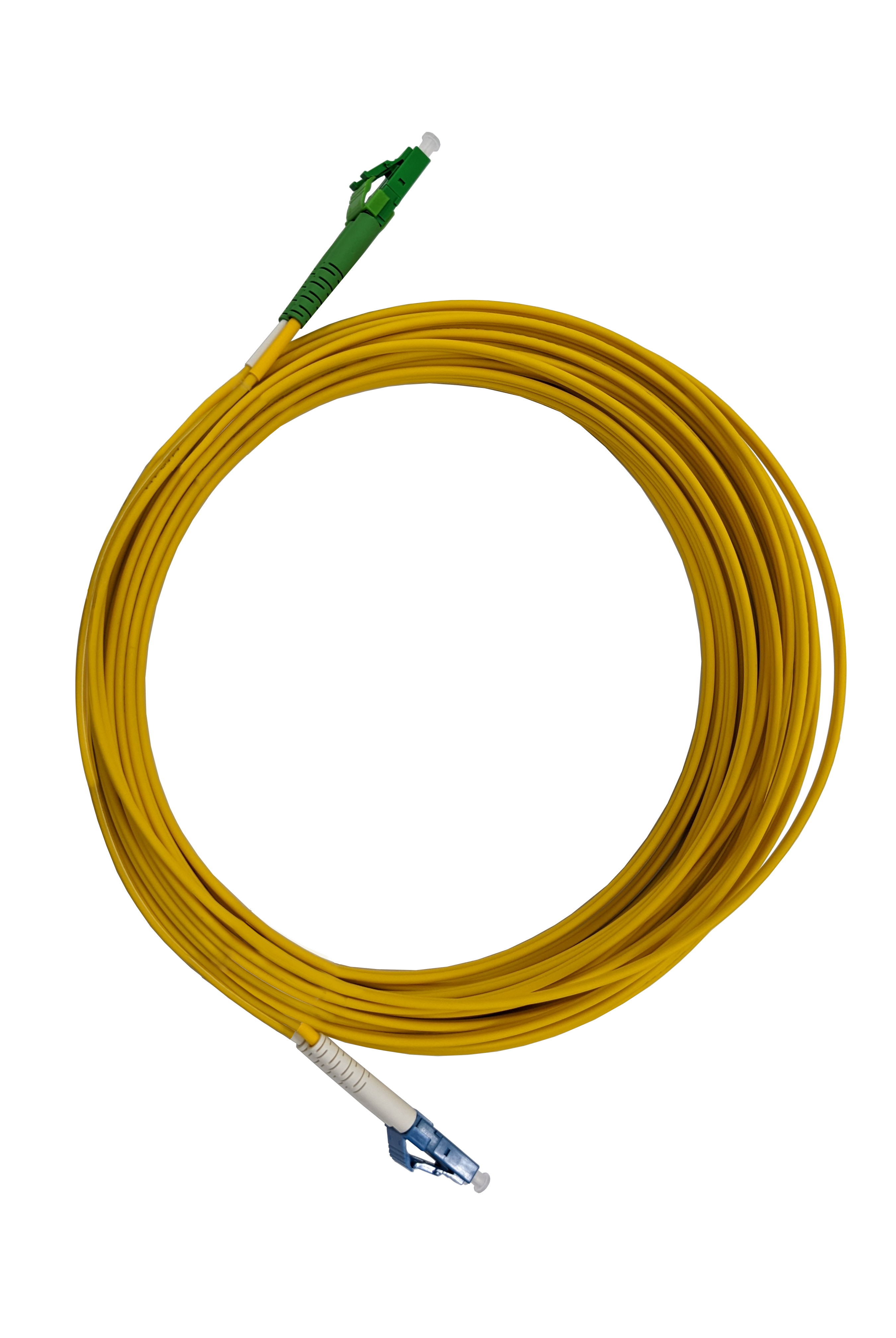

FiberExpress Fiber Patch Cord, OS2, LC Duplex - LC/APC Duplex, LSZH, Duplex Zipcord 2.0mm, A/B, Yellow Jacket
FiberExpress Fiber Patch Cord, OS2, LC Duplex - LC/APC Duplex, LSZH, Duplex Zipcord 2.0mm, A/B, Yellow Jacket
- Availability
- Asia Pacific
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Data Centers, Main Equipment Rooms,Telecommunications Rooms and Work Area |
|---|
Fiber Specifications
| Fiber Type | OS2 |
|---|---|
| Fiber Core Diameter | 9 μm |
| Fiber Count | 2 |
Physical Specifications
Connectors
| Description | Type | Boot Color |
|---|---|---|
| Connector A (Inside End) | LC Duplex | White |
| Connector B (Outside End) | LC Duplex/APC | Green |
Assembly Cable
| Jacket Color | Yellow |
|---|
Optical Characteristics
| Polarity Identification | A/B |
|---|
Fiber Connector Performance
| Description | Connector Type | Max. Insertion Loss | Min. Return Loss |
|---|---|---|---|
| Connector A (Inside End) | LC Duplex | 0.25 dB | 55 dB |
| Connector B (Outside End) | LC Duplex/APC | 0.25 dB | 65 dB |
Mechanical Characteristics
| Crush Resistance | 500N/100mm |
|---|
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-1-2 |
| TIA/EIA Compliance | TIA 604-10, TIA-568.3-D |
| ISO/IEC Compliance | IEC 61754-20 IEC 60793-2-50 IEC 60794-2-50 |
| European Halogen Free Standards | IEC 60754-1 - Halogen Amount = IEC 60754 |
| European Directive Compliance | EU Directive 2011/65/EU (RoHS 2) |
Product Notes
| Related Parts | FiberExpress Adapter Strips, FiberExpress Manager Modules and FiberExpress Ultra Frames and Cassettes, Workstation Outlets |
|---|---|
| Notes | Insertion and Return Loss values are for individual connectors on each side, Packaging: Individually packaged in a clear plastic bag (put up length from 001M to 029M), Individually packaged on a reel (put up length from 030M to 500M) |
History
| Update and Revision | Revision Number: 0.48 Revision Date: 01-07-2026 |
|---|
