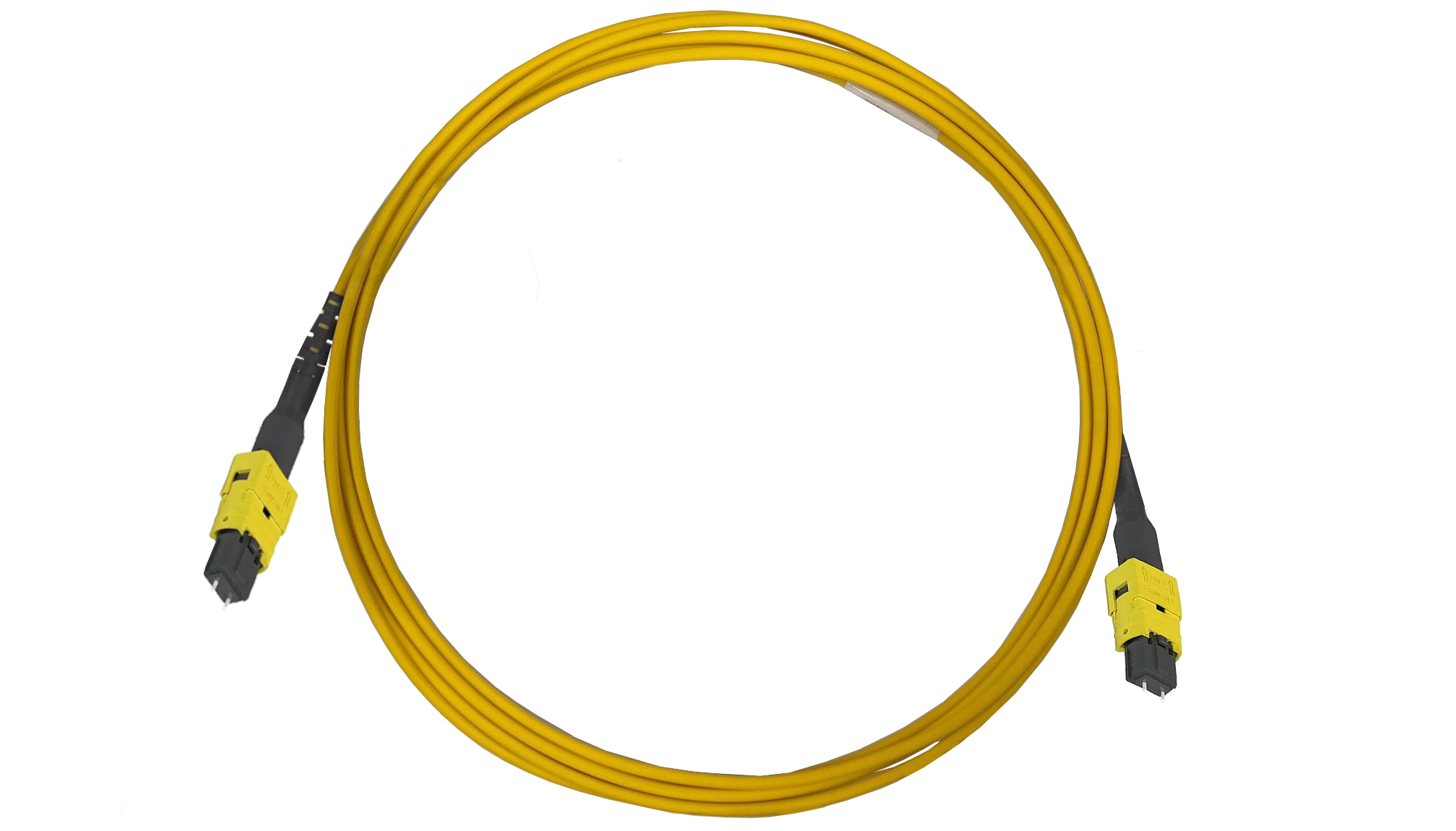

FiberExpress MPO-16 Assembly, Male To Male (MTP Connector), Single Mode, LSZH IEC 60332-1, No Pulling Eye, Yellow Jacket, Ultra Low Loss
FiberExpress MPO-16 Assembly, Male To Male (MTP Connector), Single Mode, LSZH IEC 60332-1, No Pulling Eye, Yellow Jacket, Ultra Low Loss
- Availability
- Asia Pacific
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Data Centers, Main Equipment Rooms, Telecommunications Rooms |
|---|
Fiber Specifications
| Fiber Type | OS2, G.657.A2 |
|---|
Physical Specifications
Connectors
| Description | Housing Color | Boot Color |
|---|---|---|
| Connector A (Inside End) | Yellow | Black |
| Connector B (Outside End) | Yellow | Black |
Assembly Cable
| Jacket Color | Yellow |
|---|
Optical Characteristics
Fiber Connector Performance
| Max. Insertion Loss | 0.35 dB |
|---|---|
| Min. Return Loss | 65 dB |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 20 x OD |
|---|---|
| Minimum Bend Radius During Operation | 10 x OD |
Temperature Range
| Operating Temperature Range | -20°C to +60°C |
|---|---|
| Storage Temperature Range | -20°C to +60°C |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-1-2 |
| TIA/EIA Compliance | TIA 568.3-D |
| ISO/IEC Compliance | ISO/IEC 11801 IEC 61754-7 |
| European Directive Compliance | EU Directive 2011/65/EU (RoHS 2) |
Product Notes
| Related Parts | FiberExpress Adapter Strips, FiberExpress Manager Modules and FiberExpress Ultra Frames and Cassettes, Workstation Outlets |
|---|---|
| Notes | The sixth letter x represents polarity: A: Type-A, B: Type-B, C: Type-C; The seventh letter y represents numbers of connector on both side: 1: 1 Connector, 2: 2 Connectors, 3: 3 Connectors, 4: 4 Connectors, 6: 6 Connectors, 8: 8 Connectors, D: 12 Connectors; The eighth to the tenth letters zzz represents length |
History
| Update and Revision | Revision Number: 0.8 Revision Date: 09-22-2025 |
|---|
