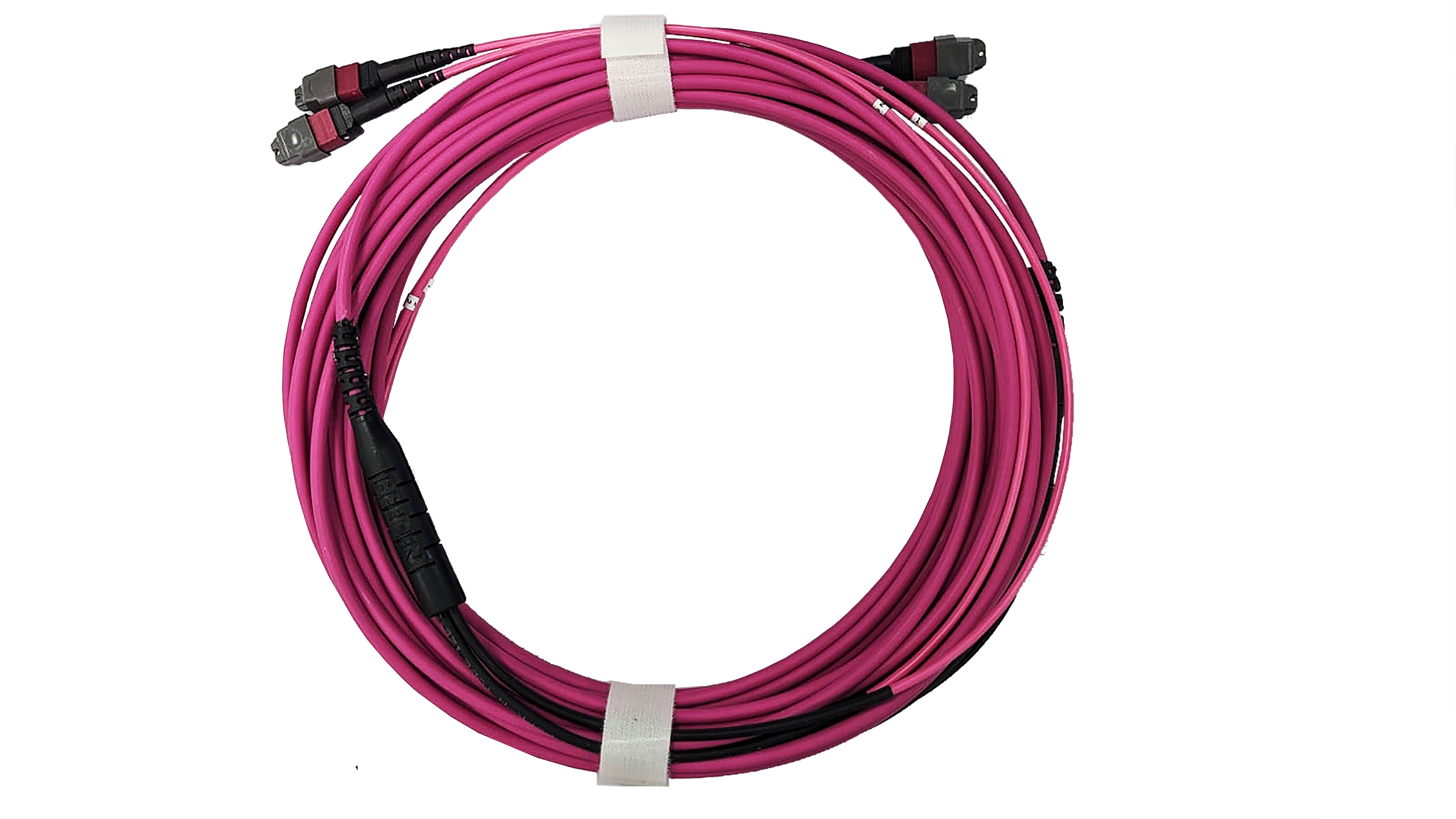

FiberExpress MPO Trunk Assembly,MPO 12(Male To Male), Multi Mode OM4(BI), Type B, 2 MPO (24 Fibers), LSZH, 12 Meter, No Pulling Eye, Erika Violet Jacket
FiberExpress MPO Trunk Assembly,MPO 12(Male To Male), Multi Mode OM4(BI), Type B, 2 MPO (24 Fibers), LSZH, 12 Meter, No Pulling Eye, Erika Violet Jacket
- Availability
- Asia Pacific
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Data Centers, Main Equipment Rooms, Telecommunications Rooms |
|---|
Fiber Specifications
| Fiber Type | OM4 |
|---|---|
| Fiber Count | 24 |
Physical Specifications
Connectors
| Description | Housing Color | Boot Color |
|---|---|---|
| Connector A (Inside End) | Erika Violet | Black |
| Connector B (Outside End) | Erika Violet | Black |
Fan-out (Legs)
| Description | Transition | Length (m) | Diameter |
|---|---|---|---|
| Connector A (Inside End) | LPM | 0.5 m | 3.0 mm |
| Connector B (Outside End) | LPM | 0.5 m | 3.0 mm |
Assembly Cable
| Cable Nominal OD | 4.5 mm |
|---|---|
| Jacket Color | Erika Violet |
Optical Characteristics
Fiber Connector Performance
| Description | Max. Insertion Loss | Min. Return Loss |
|---|---|---|
| Connector A (Inside End) | 0.20 dB | 30 dB |
| Connector B (Outside End) | 0.20 dB | 30 dB |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 20 x OD |
|---|---|
| Minimum Bend Radius During Operation | 10 x OD |
| Crush Resistance | 1000 N/100mm (Short Term), 300 N/100mm (Long Term) |
Temperature Range
| Operating Temperature Range | -20°C to +60°C |
|---|---|
| Storage Temperature Range | -20°C to +60°C |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-1-2 |
| TIA/EIA Compliance | TIA 568.3-D |
| ISO/IEC Compliance | ISO/IEC 11801 IEC 61754-7 |
| European Directive Compliance | EU Directive 2011/65/EU (RoHS 2) |
Product Notes
| Related Parts | FiberExpress Adapter Strips, FiberExpress Manager Modules and FiberExpress Ultra Frames and Cassettes, Workstation Outlets |
|---|---|
| Notes | Outer Jacket Material: LSZH - Low Smoke Zero Halogen (Flame Retardant), Tensile Strength : 660 N (Short Term), 200 N (Long Term) |
History
| Update and Revision | Revision Number: 0.4 Revision Date: 07-11-2024 |
|---|
