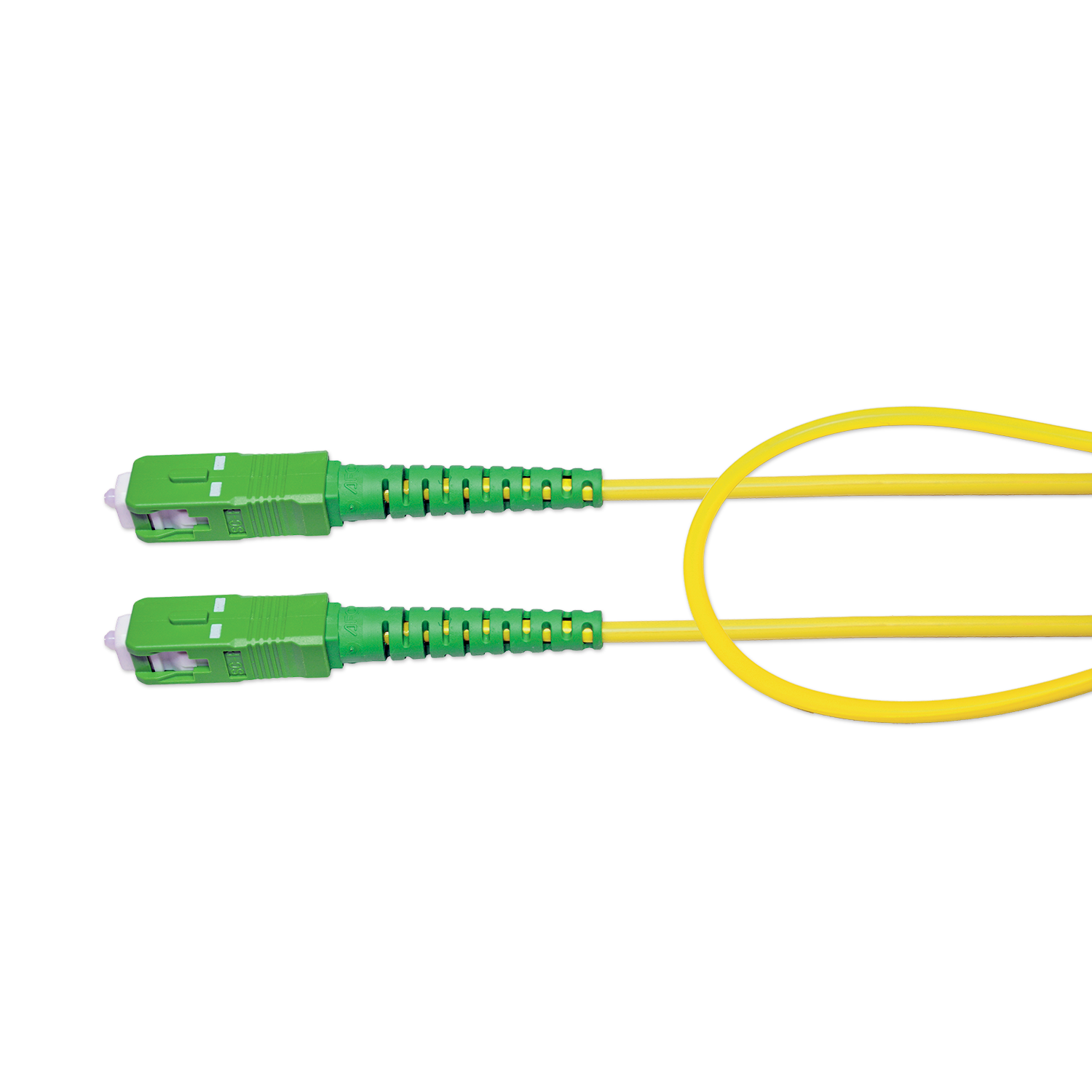

SC APC Simplex OS2 1M Patch Cord
FX PATCH CORD, OS2, SC SIMPLEX/APC - SC SIMPLEX/APC, 1 M, OFNR, SIMPLEX 2.0 MM, A-TO-A, YELLOW JACKET
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Data Centers, Main Equipment Rooms,Telecommunications Rooms and Work Area |
|---|
Fiber Specifications
| Fiber Type | OS2 |
|---|---|
| Fiber Core Diameter | 8.2/125 μm |
| Fiber Count | 1 |
| Fiber Color Code | TIA-598-D |
Physical Specifications
Connectors
| Description | Type | Housing Material | Housing Color | Ferrule | Boot Material | Boot Color |
|---|---|---|---|---|---|---|
| Connector A (Inside End) | SC/APC Simplex | Plastic | Green | Zirconia Ceramic | Rubber | Green |
| Connector B (Outside End) | SC/APC Simplex | Plastic | Green | Zirconia Ceramic | Rubber | Green |
Measurement
| Overall Assembly Length | 1 m |
|---|---|
| Packaging | Individually packaged in a clear plastic bag |
Overall Length Tolerances
| Range | Tolerance |
|---|---|
| 0 to 2 meters | +0.2 / -0 meter |
| 2.1 to 4.9 meters | +0.3 / -0 meter |
| 5 to 40 meters | +0.4 / -0 meter |
| over 40 meters | +1.0% / -0% |
Optical Characteristics
| Polarity Identification | A-to-A |
|---|
Fiber Connector Performance
| Connector Type | Max. Insertion Loss | Min. Return Loss |
|---|---|---|
| SC/APC Simplex | 0.25 dB | 65 dB |
| SC/APC Simplex | 0.25 dB | 65 dB |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -40°C To +75°C |
|---|---|
| Storage Temperature Range | -40°C To +75°C |
Standards and Compliance
| Environmental Space | Indoor |
|---|---|
| UL Flammability | OFNR |
| UL Rating | Riser |
| TIA/EIA Compliance | TIA 568.3 |
| MII Order #39 (China RoHS) | EUP 50 |
| Safety Listing | ACMA |
Product Notes
| Related Parts | FiberExpress Adapter Strips, FiberExpress Manager Modules and FiberExpress Ultra Frames and Cassettes. Workstation Outlets |
|---|
History
| Update and Revision | Revision Number: 0.126 Revision Date: 08-25-2025 |
|---|
