FXPC OS2 LC_DX LC_DX 8M OFNP DX_2.0 A-B YL_JKT

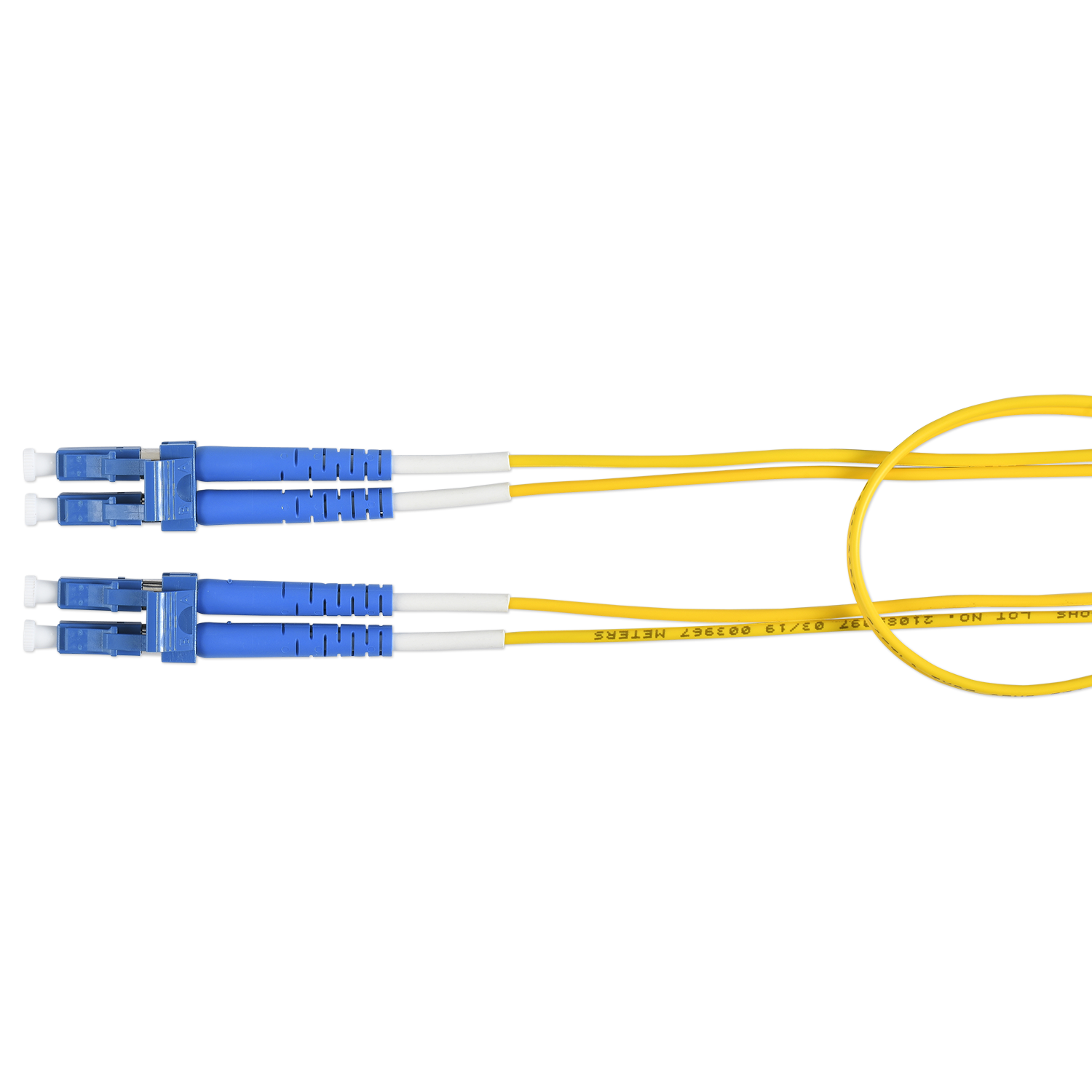

FX PATCH CORD, OS2, LC DUPLEX - LC DUPLEX, 8 M, OFNP, DUPLEX ZIP 2.0 MM, A-TO-B, YELLOW JACKET
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Data Centers, Main Equipment Rooms,Telecommunications Rooms and Work Area |
|---|
Fiber Specifications
| Fiber Type | OS2 |
|---|
Physical Specifications
Connectors
| Description |
|---|
Measurement
| Packaging | Individually packaged in a clear plastic bag |
|---|
Inner Jacket
| Inner Jacket | Inner Jacket |
|---|
Mechanical Characteristics
| Maximum Insertion Loss | 0.25 dB |
|---|---|
| Return Loss | 55 dB |
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -40°C To +75°C |
|---|---|
| Storage Temperature Range | -40°C To +75°C |
Product Material
Materials
| Description | Material | Color | Type |
|---|---|---|---|
| Connectors | Plastic | Blue | LC Duplex |
| Boots | Rubber | Black | |
| Ferrules | Zirconia-Ceramic | 1.25mm |
Standards and Compliance
| Environmental Space | Indoor |
|---|---|
| TIA/EIA Compliance | TIA 568.3 |
| MII Order #39 (China RoHS) | EUP 50 |
| Safety Listing | ACMA |
Product Notes
| Related Parts | FiberExpress Adapter Strips, FiberExpress Manager Modules and FiberExpress Ultra Frames and Cassettes. Workstation Outlets |
|---|
History
| Update and Revision | Revision Number: 0.13 Revision Date: 08-25-2025 |
|---|
