FXPC OM4 LC_DX LC_DX 30M, OFNR DX_2.0 A-B EV_JKT

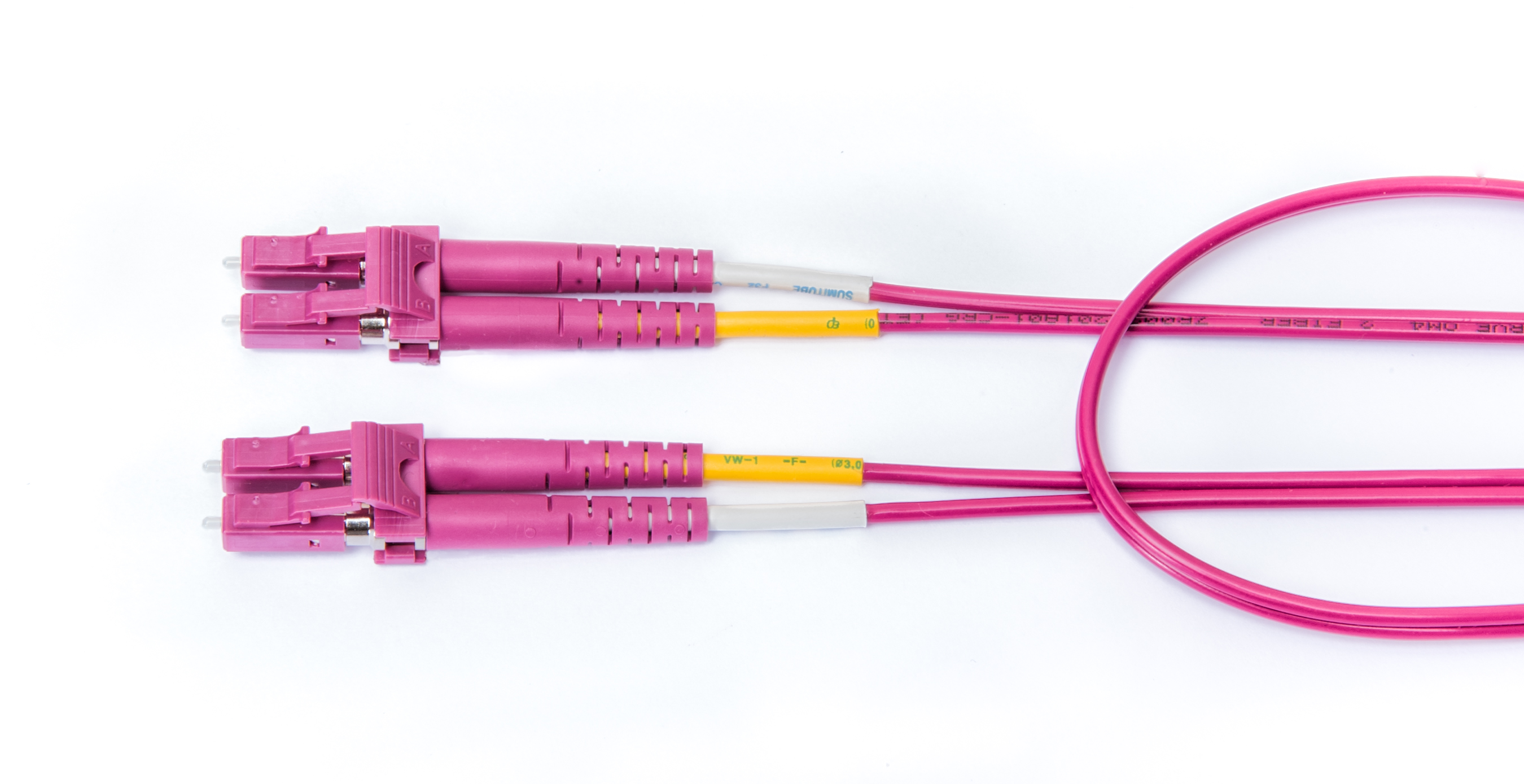

FX PATCH CORD, OM4, LC DUPLEX - LC DUPLEX, 30 M, OFNR, DUPLEX ZIP 2.0 MM, A-TO-B, ERIKA VIOLET JACKET
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Data Centers, Main Equipment Rooms,Telecommunications Rooms and Work Area |
|---|
Fiber Specifications
| Fiber Type | OM4 |
|---|
Physical Specifications
Connectors
| Description |
|---|
Measurement
| Packaging | Individually packaged |
|---|
Inner Jacket
| Inner Jacket | Inner Jacket |
|---|
Mechanical Characteristics
| Maximum Insertion Loss | 0.15 dB |
|---|---|
| Return Loss | 30 dB |
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -40°C to 75°C |
|---|---|
| Storage Temperature Range | -40°C to 75°C |
Product Material
Materials
| Description | Material | Color | Type |
|---|---|---|---|
| Connectors at both ends | Plastic | Erika Violet | LC-Duplex |
| Boots at both ends | Rubber | Erika Violet | |
| Ferrules at both ends | Zirconia-Ceramic | 1.25mm |
Standards and Compliance
| Environmental Space | Indoor |
|---|---|
| UL Rating | Riser |
| TIA/EIA Compliance | TIA 568.3 |
| MII Order #39 (China RoHS) | EUP 50 |
| Safety Listing | ACMA |
Product Notes
| Related Parts | FiberExpress Adapter Strips, FiberExpress Manager Modules and FiberExpress Ultra Frames and Cassettes. Workstation Oultlets |
|---|---|
| Notes | For additional information about this product, please contact our Technical Support group ( [email protected] ) or your local sales representative. |
History
| Update and Revision | Revision Number: 0.5 Revision Date: 02-28-2024 |
|---|
