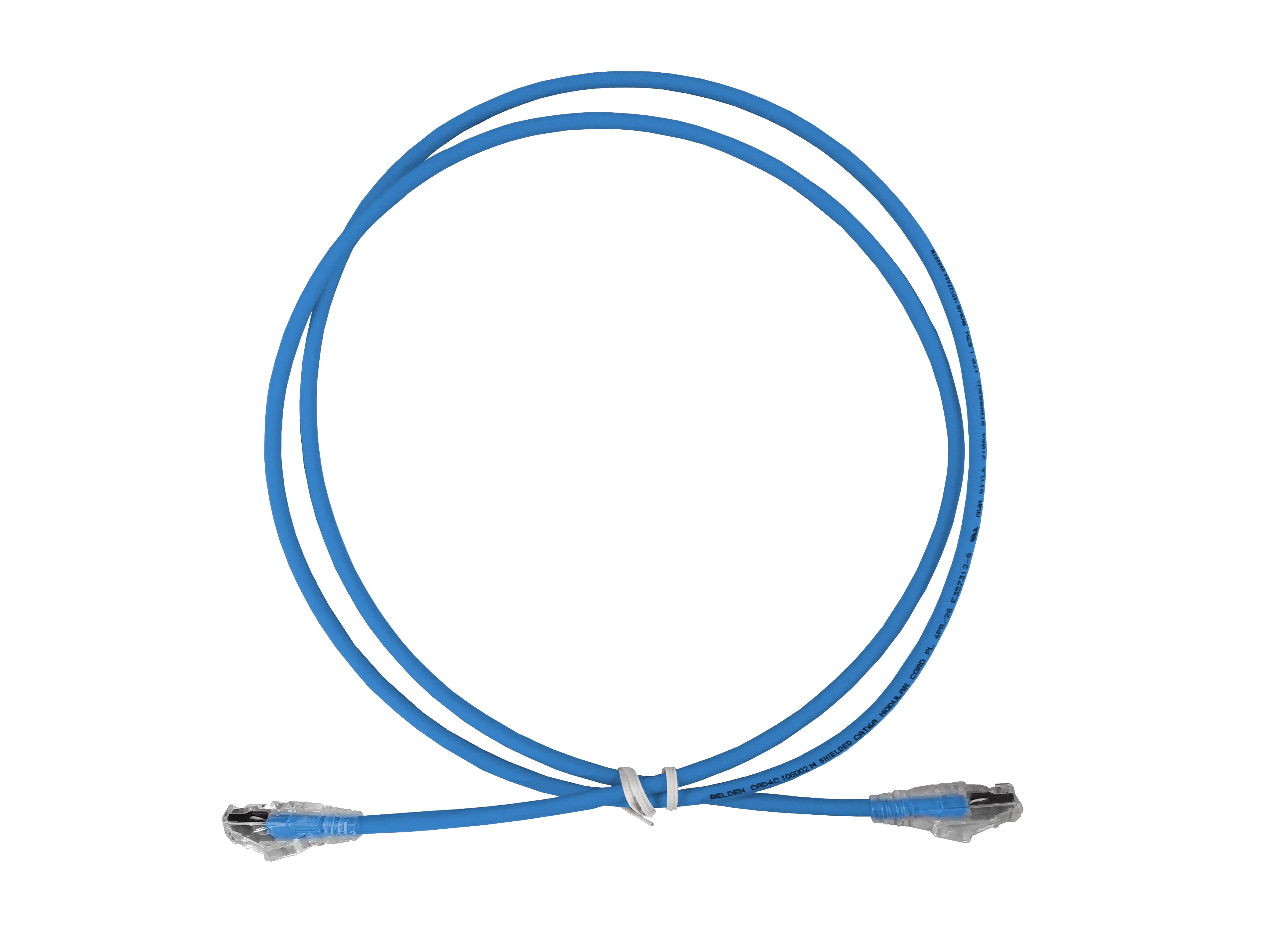

CAT 6A Shielded Copper Patch Cord, 28 AWG, F/UTP, LSZH Shielded
CAT 6A Shielded Copper Patch Cord, 28 AWG, F/UTP, LSZH Shielded
- Availability
- Asia Pacific
- Status
- Active
- Orderable items
- 45
Part numbers
CAD4CxyyzzzM is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| CAD4C1100D5M | Black | 0.5 m | Order online |
| CAD4C110001M | Black | 1 m | Order online |
| CAD4C110002M | Black | 2 m | Order online |
| CAD4C110003M | Black | 3 m | Order online |
| CAD4C110005M | Black | 5 m | Order online |
| CAD4C1060D5M | Blue | 0.5 m | Order online |
| CAD4C106001M | Blue | 1 m | Order online |
| CAD4C106002M | Blue | 2 m | Order online |
| CAD4C106003M | Blue | 3 m | Order online |
| CAD4C106005M | Blue | 5 m | Order online |
| CAD4C1050D5M | Green | 0.5 m | Order online |
| CAD4C105001M | Green | 1 m | Order online |
| CAD4C105002M | Green | 2 m | Order online |
| CAD4C105003M | Green | 3 m | Order online |
| CAD4C105005M | Green | 5 m | Order online |
| CAD4C1080D5M | Grey | 0.5 m | Order online |
| CAD4C108001M | Grey | 1 m | Order online |
| CAD4C108002M | Grey | 2 m | Order online |
| CAD4C108003M | Grey | 3 m | Order online |
| CAD4C108005M | Grey | 5 m | Order online |
| CAD4C1080D3M | Grey | 0.3 m | Order online |
| CAD4C103001M | Orange | 1 m | Order online |
| CAD4C103002M | Orange | 2 m | Order online |
| CAD4C103003M | Orange | 3 m | Order online |
| CAD4C103005M | Orange | 5 m | Order online |
| CAD4C1070D5M | Purple | 0.5 m | Order online |
| CAD4C107001M | Purple | 1 m | Order online |
| CAD4C107002M | Purple | 2 m | Order online |
| CAD4C107003M | Purple | 3 m | Order online |
| CAD4C107005M | Purple | 5 m | Order online |
| CAD4C1030D5M | Red | 0.5 m | Order online |
| CAD4C102001M | Red | 1 m | Order online |
| CAD4C102002M | Red | 2 m | Order online |
| CAD4C102003M | Red | 3 m | Order online |
| CAD4C102005M | Red | 5 m | Order online |
| CAD4C1090D5M | White | 0.5 m | Order online |
| CAD4C109001M | White | 1 m | Order online |
| CAD4C109002M | White | 2 m | Order online |
| CAD4C109003M | White | 3 m | Order online |
| CAD4C109005M | White | 5 m | Order online |
| CAD4C1040D5M | Yellow | 0.5 m | Order online |
| CAD4C104001M | Yellow | 1 m | Order online |
| CAD4C104002M | Yellow | 2 m | Order online |
| CAD4C104003M | Yellow | 3 m | Order online |
| CAD4C104005M | Yellow | 5 m | Order online |
Specifications
Product Overview
| Suitable Applications | Horizontal and building cabling. Support current and future Category 6A, 10GX, Category6A & 5e applications, such as: 10Base-T, 100Base-TX, 1000Base-T and 10G-Base-T |
|---|
Physical Characteristics (Overall)
| Wiring Scheme | T568A/B-T568A/B |
|---|---|
| Packaging | Individually packaged in a clear plastic bag. |
Conductor
| AWG | 28 |
|---|---|
| Stranding | Stranded |
| Material | BC - Bare Copper |
| No. of Pairs | 4 |
Insulation
| Material | PE - Polyethylene |
|---|
Outer Shield
| Drainwire Material | Stranded Tinned Copper |
|---|
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nominal Diameter | 4.8 mm |
Connectors
Materials
| Description | Material | Type |
|---|---|---|
| Plug | Shielded Polycarbonate | RJ45 |
| Boot | Polycarbonate | Snagless |
| Front Connection | Phosphor bronze plated with 1.27μm gold over 2.54μm nickel undercoat | Blades |
Electrical Characteristics
| Dielectric Strength | 750 V AC (RMS) |
|---|---|
| Current Rating | 1.5 A |
| Insulation Resistance | 5 G ohm*km |
| Max Contact Resistance | 20 mOhm |
| Voltage Rating | 120 V DC |
Temperature Range
| Installation Temperature Range | 0°C To +55°C |
|---|---|
| Operating Temperature Range | -20°C To +75°C |
Mechanical Characteristics
| Plug /Jack Compatibility | RJ45 |
|---|
Termination Interface
| Termination | RJ45 |
|---|---|
| Connection | Mated Connection |
| Durabilities | 750 Cycles |
Standards
| ISO/IEC Compliance | ISO/IEC 11801-1 |
|---|---|
| Data Category | Category 6A |
| TIA/EIA Compliance | TIA-568.2-D |
Applicable Environmental and Other Programs
| Environmental Space | Indoor |
|---|---|
| EU Directive 2002/95/EC (RoHS) | Yes |
Suitability
| Suitability - Indoor | Yes |
|---|
Related Part Numbers
| Related Parts | CAT6A Modular Jacks, CAT6A Patch Panels |
|---|
Product Notes
| Notes | Power over Ethernet (PoE) applications, including PoE++ (IEEE 802.3bt). For 28 AWG patch cords, cable bundling and installation practices shall follow ANSI/TIA TSB-184-A-1 (2019) to manage temperature rise. |
|---|
History
| Update and Revision | Revision Number: 0.11 Revision Date: 06-08-2026 |
|---|
