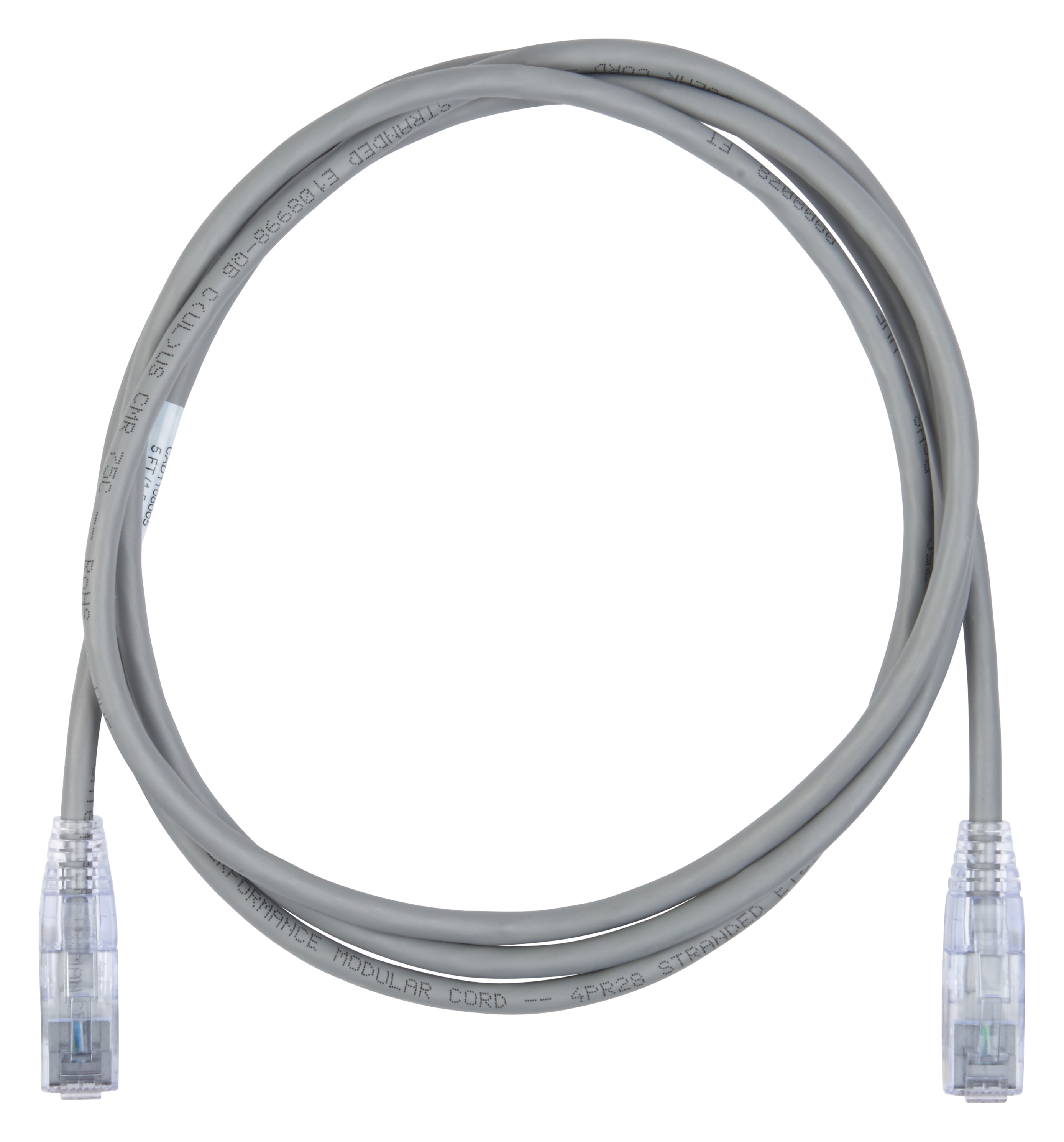

Cable Assemblies - CAT6A Performance Modular Cord, 4 ft. (1.2 m)
CAT6A Performance Patch Cord UTP, 4-Pair, 28 AWG Stranded, CMR, T568A/B-T568A/B, Gray, 4 ft. (1.2 m)
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
CAD1108004 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| CAD1108004 | Gray | 4 ft | Order online |
Specifications
Product Overview
| Suitable Applications | TIA Category 6A, ISO Class EA, 10GBASE-T, Support Power over Ethernet (up to 100W), Cisco UPOE (up to 60W) and Power over HDBase-T (up to 100W) |
|---|
Physical Characteristics (Overall)
| Overall Nominal Diameter | 0.186 in |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Wiring Scheme | T568A/B-T568A/B |
| Packaging | Individually packaged in a clear plastic bag |
Conductor
| AWG | 28 |
|---|---|
| Stranding | Stranded |
| Material | TC - Tinned Copper |
| No. of Pairs | 4 |
Insulation
| Material | PE - Polyethylene |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|
Connectors
Materials
| Description | Material | Type |
|---|---|---|
| Plug | Polycarbonate - UL94V-0 | RJ45 |
| Boot | Polycarbonate - UL94V-0 | |
| Front Connection | Phosphor Bronze with 50u inch Gold over Nickel Plating | Blades |
Electrical Characteristics
| Dielectric Strength | 1,000 V RMS @ 60 Hz for 1 minute |
|---|---|
| Current Rating | 1.500 A |
| Insulation Resistance | 500 M-Ohm Minimum |
| Max Contact Resistance | 20 mOhm |
Voltage
| UL Voltage Rating | 300 V RMS |
|---|
Temperature Range
| Installation Temperature Range | -10°C To +60°C |
|---|---|
| Storage Temperature Range | -40°C To +70°C |
| Operating Temperature Range | -10°C To +60°C |
Mechanical Characteristics
| Maximum Recommended Pulling Tension | 11.250 lbs |
|---|---|
| Min Bend Radius (Overall Cable) | 0.744 in |
| Plug /Jack Compatibility | RJ45 |
Termination Interface
| Termination | RJ45 |
|---|---|
| Connection | Mated Connection |
| Durabilities | 750 Cycles |
Standards
| UL Rating | Riser |
|---|---|
| TIA/EIA Compliance | Category 6A - TIA-568.2-D ISO/IEC 11801-1 |
| Other Standards | IEC 60603-7, ANSI/TIA 1096-A (formerly FCC Part 68-F) |
Applicable Environmental and Other Programs
| Environmental Space | Indoor |
|---|---|
| EU Directive 2002/95/EC (RoHS) | Yes |
| MII Order #39 (China RoHS) | EUP 50 |
Suitability
| Suitability - Indoor | Yes |
|---|
Flammability, LS0H, Toxicity Testing
| UL voltage rating | 300 V RMS |
|---|---|
| Safety Listing | c(UL)us Listed |
Related Part Numbers
| Related Parts | 10GX Modular Jacks, 10GX RJ45 Couplers, 10GX Patch Panels |
|---|
Product Notes
| Notes | Insulation Material: High Density Polyethylene Cable Weight: 0.0152 lbs/ft. This product may be protected by one or more patents. For further information, please visit: https://www.belden.com/patents . |
|---|---|
| Labeling | Labeling: Belden Part Number and Cord Length |
History
| Update and Revision | Revision Number: 0.201 Revision Date: 10-24-2025 |
|---|
