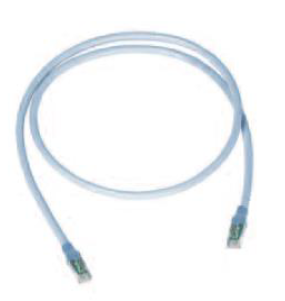

26AWG Category 6A Shielded Patch Cord
26AWG Category 6A Shielded Patch Cord
- Availability
- Asia Pacific
- Status
- Active
- Orderable items
- 35
Part numbers
CACxxxx is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| CAC41100D5F | Black | 0.5 ft | Order online |
| CAC4106007F | Blue | 7 ft | Order online |
| CAC9106007F | Blue | 7 ft | Order online |
| CAC4106010F | Blue | 10 ft | Order online |
| CAC9106010F | Blue | 10 ft | Order online |
| CAC41060D5F | Blue | 0.5 ft | Order online |
| CAC4106006F | Blue | 6 ft | Order online |
| CAC4108007F | Gray | 7 ft | Order online |
| CAC9108007F | Gray | 7 ft | Order online |
| CAC4108010F | Gray | 10 ft | Order online |
| CAC9108010F | Gray | 10 ft | Order online |
| CAC4105007F | Green | 7 ft | Order online |
| CAC9105007F | Green | 7 ft | Order online |
| CAC4105010F | Green | 10 ft | Order online |
| CAC9105010F | Green | 10 ft | Order online |
| CAC41080D5F | Grey | 0.5 ft | Order online |
| CAC4119007F | Pink | 7 ft | Order online |
| CAC9119007F | Pink | 7 ft | Order online |
| CAC4119010F | Pink | 10 ft | Order online |
| CAC9119010F | Pink | 10 ft | Order online |
| CAC4102007F | Red | 7 ft | Order online |
| CAC9102007F | Red | 7 ft | Order online |
| CAC4102010F | Red | 10 ft | Order online |
| CAC9102010F | Red | 10 ft | Order online |
| CAC4109007F | White | 7 ft | Order online |
| CAC9109007F | White | 7 ft | Order online |
| CAC4109010F | White | 10 ft | Order online |
| CAC9109010F | White | 10 ft | Order online |
| CAC4109002F | White | 2 ft | Order online |
| CAC4109006F | White | 6 ft | Order online |
| CAC4104007F | Yellow | 7 ft | Order online |
| CAC9104007F | Yellow | 7 ft | Order online |
| CAC4104010F | Yellow | 10 ft | Order online |
| CAC9104010F | Yellow | 10 ft | Order online |
| CAC41040D5F | Yellow | 0.5 ft | Order online |
Specifications
Product Overview
| Suitable Applications | IBDN System 10GX, TIA Category 6A, ISO Class EA, 10GBASE-T. |
|---|
Physical Characteristics (Overall)
| Total Number of Pairs | 4 |
|---|---|
| Overall Nominal Diameter | 6.2mm |
| Packaging | Individually packaged in a clear plastic bag. |
Conductor
| AWG | 26 |
|---|---|
| Material | BC - Bare Copper |
Construction and Dimensions
| Cable Type | S/FTP Cat6A |
|---|
Electrical Characteristics
| Dielectric Strength | 1000 VAC (RMS) |
|---|---|
| Current Rating | 1.5 A |
| Insulation Resistance | 100 M-Ohm Minimum |
| Max Contact Resistance | 20 mOhm |
| Voltage Rating | 72VDC |
Temperature Range
| UL Temperature Rating | -25°C To +70°C |
|---|
Mechanical Characteristics
| Min Bend Radius (Overall Cable) | 1.040 in |
|---|
Standards
| Data Category | Category 6A |
|---|---|
| TIA/EIA Compliance | Category 6A - TIA-568.2-D ISO/IEC 11801-1 |
| Other Standards | FCC Part 68, Subpart F, IEC 60603-7 |
Applicable Environmental and Other Programs
| Environmental Space | Indoor |
|---|---|
| MII Order #39 (China RoHS) | EUP 50 |
Related Part Numbers
| Related Parts | 10GX Modular Jacks and Couplers, 10GX Patch Panels |
|---|
Product Notes
| Notes | Belden guarantees the patch cord performance in accordance with “Annex - Modeling configurations and length scaling” in the latest ANSI/TIA-568 standard. The fourth letter represents jacket material: 9 - PVC and 4 - LSZH. |
|---|
History
| Update and Revision | Revision Number: 0.12 Revision Date: 07-08-2026 |
|---|
