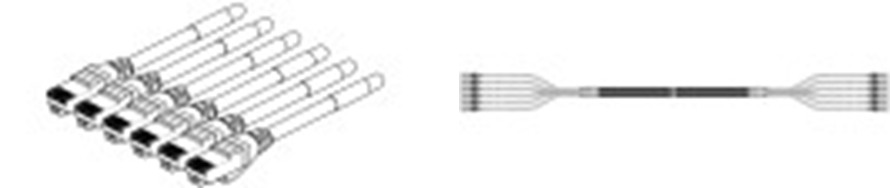

Product Number: CA211xx000A06

Cable Assemblies - 10GX Pre-Terminated Cable Assembly

10GX Pre-Terminated Cable Assembly, Bonded-Pair, 4-Pair, 24 AWG Solid, T568A/B-T568A/B, 6 Cables, CMR, (See Product Family for colors & lengths)

Availability: Global
Status: Active

Ships from and sold by A5 IT.

Specifications

Product Overview

Suitable Applications	IBDN System 10GX, TIA Category 6A, 10GBASE-T, Support Power over Ethernet (up to 100W), Cisco UPOE (up to 60W) and Power over HDBase-T (up to 100W)

Physical Characteristics (Overall)

Overall Nominal Diameter	0.85 in
Material	PVC - Polyvinyl Chloride
Wiring Scheme	T568A/B-T568A/B
Packaging	Individually packaged in a box

Conductor

AWG	24
Stranding	Solid
Material	BC - Bare Copper
No. of Pairs	4

Insulation

Material	PO - Polyolefin

Inner Jacket

Material	PVC - Polyvinyl Chloride

Outer Jacket

Material	PVC - Polyvinyl Chloride

Connectors

Materials

Description	Material	Type
Plug	Polycarbonate	RJ45
Boot	Elastomer
Front Connection	Phosphor Bronze with 50u inch Gold over Nickel Plating	Blades
Sleeve	Engineered Polymer Riser Rated

Electrical Characteristics

Dielectric Strength	1,000 V RMS @ 60 Hz for 1 minute
Current Rating	1.500 A
Insulation Resistance	500 M-Ohm Minimum
Max Contact Resistance	20 mOhm
High Frequency Table Notes	100 meter Cable Specifications - * TIA/EIA-568.2-D Category 6 Standard

Voltage

UL Voltage Rating	300 V RMS

Mated Connection

Frequency (MHz)	Max. Insertion Loss Belden** (dB)	Min. Return Loss Belden** (dB)	Min. PSANEXT TIA* (dB)	Min. PSANEXT Belden** (dB)	Min. PSAACRF TIA* (dB)	Min. PSAACRF Belden** (dB)	Min. Balanced TCL TIA* (dB)	Min. Balanced TCL Belden** (dB)
1 MHz	2.4 dB	20 dB	67 dB	87 dB	67 dB	75 dB	40 dB	48 dB
4 MHz	4.5 dB	23 dB	67 dB	87 dB	66.2 dB	75 dB	40 dB	48 dB
8 MHz	6.3 dB	24.5 dB	67 dB	87 dB	60.1 dB	75 dB	40 dB	48 dB
10 MHz	7 dB	25 dB	67 dB	87 dB	58.2 dB	75 dB	40 dB	48 dB
16 MHz	8.9 dB	25 dB	67 dB	87 dB	54.1 dB	70.9 dB	38 dB	46 dB
20 MHz	10 dB	25 dB	67 dB	87 dB	52.2 dB	69 dB	37 dB	45 dB
25 MHz	11.1 dB	25 dB	67 dB	87 dB	50.2 dB	67 dB	36 dB	44 dB
31.25 MHz	12.5 dB	25 dB	67 dB	87 dB	48.3 dB	65.1 dB	35.1 dB	43.1 dB
62.5 MHz	17.9 dB	25 dB	65.6 dB	85.6 dB	42.3 dB	59.1 dB	32 dB	40 dB
100 MHz	22.8 dB	25 dB	62.5 dB	82.5 dB	38.2 dB	55 dB	30 dB	38 dB
200 MHz	33 dB	21 dB	58 dB	78 dB	32.2 dB	49 dB	27 dB	35 dB
250 MHz	37.2 dB	20.5 dB	56.5 dB	76.5 dB	30.2 dB	47 dB	26 dB	34 dB
300 MHz	41 dB	20.1 dB	55.3 dB	75.3 dB	28.7 dB	43.8 dB	25.2 dB	33.2 dB
400 MHz	48 dB	19.5 dB	53.5 dB	73.5 dB	26.2 dB	38.8 dB	24 dB	32 dB
500 MHz	54.3 dB	18.4 dB	52 dB	72 dB	24.2 dB	35 dB	23 dB	31 dB
625 MHz	61.5 dB	17.4 dB		65 dB		31.1 dB

Temperature Range

Installation Temperature Range	-10°C To +60°C
Storage Temperature Range	-40°C To +70°C
Operating Temperature Range	-10°C To +60°C

Mechanical Characteristics

Maximum Recommended Pulling Tension	11.250 lbs
Min Bend Radius (Overall Cable)	1.040 in
Plug /Jack Compatibility	RJ45

Termination Interface

Termination	RJ45
Connection	Mated Connection
Durabilities	750 Cycles

Standards

UL Rating	Riser
TIA/EIA Compliance	Category 6A - TIA-568.2-D ISO/IEC 11801-1
IEEE Compliance	IEEE 802.3at type 1 and 2 (PoE) up to 30W, IEEE 802.3bt type 3 and 4 (PoE) up to 100W, CISCO (UPOE) up to 60W, Power over HDBaseT TM (POH) up to 100W
Other Standards	ANSI/TIA 1096-A (formerly FCC Part 68-F), IEC 60603-7

Applicable Environmental and Other Programs

Environmental Space	Indoor
EU Directive 2002/95/EC (RoHS)	Yes
MII Order #39 (China RoHS)	EUP 50

Suitability

Suitability - Indoor	Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating	300 V RMS
Safety Listing	c(UL)us Listed

Related Part Numbers

Related Parts	10GX RJ45 Couplers, 10GX Coupler Patch Panels

Product Notes

Notes

CA21xyyzzzA06 is subdivided as following CA-21-x-yy-zzz-A-06 where CA stands for performance, 21 stands for jacket type, x stands for termination type, yy stands for color, zzz stands for length, A stands for assembly, and 06 stands for number of cables Use "zzz" part of the code to specify length in feet - 006-100 ft in increments of 1 ft - 105-265 ft in increments of 5 ft. Cable Weight: 0.029 lbs/ft. x 6 cables. Cable with EquiBlockTM Barrier Technology.

Labeling

Labeled at both ends: Part Number, Serial Number, Termination Scheme, Length, Individual cable identification. Customized Labeling for cable assemblies optional upon request.
