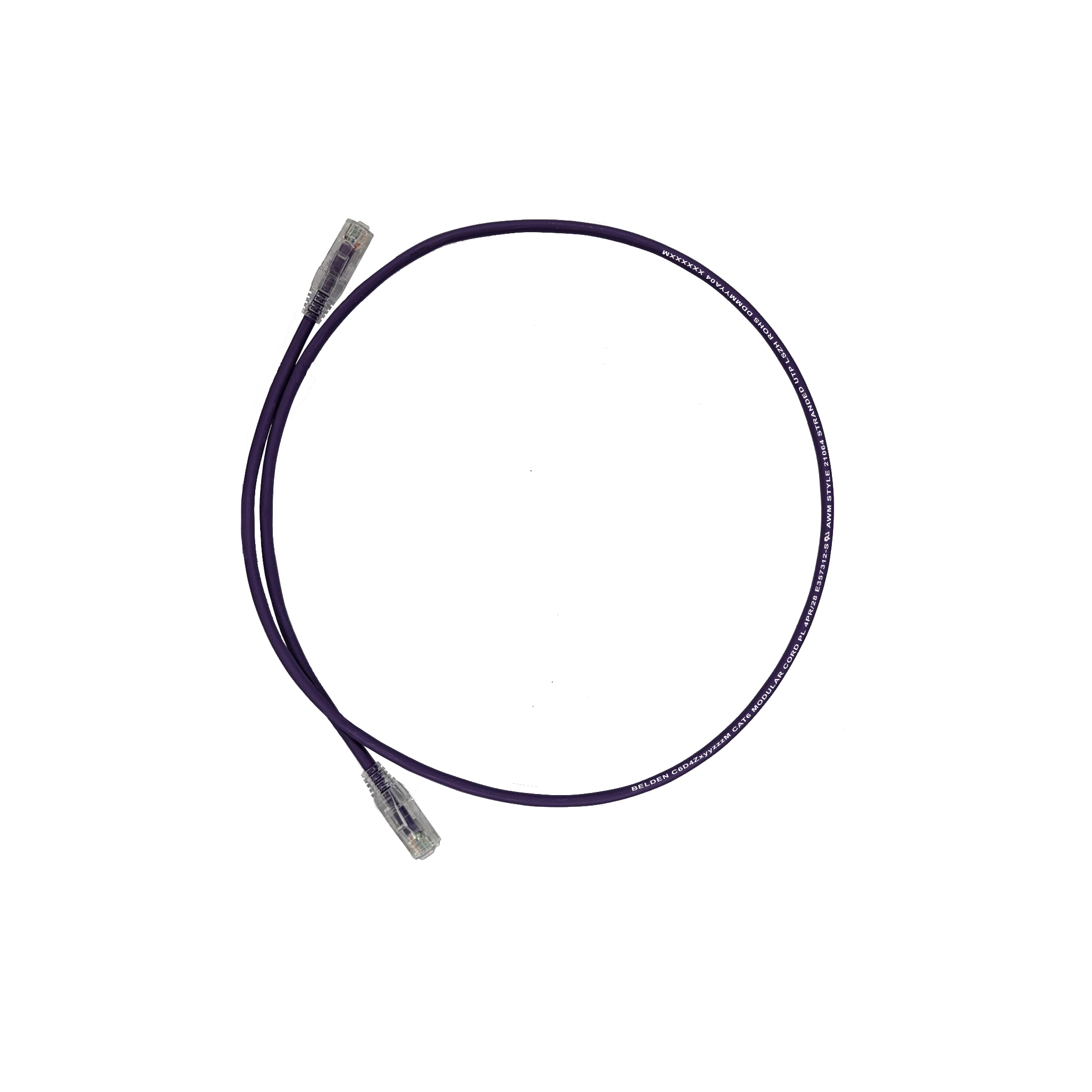

CAT6 28AWG Small diameter Copper Patch Cord, UTP, LSZH
CAT6 28AWG Small diameter Copper Patch Cord, UTP, LSZH
- Availability
- Asia Pacific
- Status
- Active
- Orderable items
- 50
Part numbers
C6D4ZxyyzzzM is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| C6D4Z1100D5M | Black | 0.5 m | Order online |
| C6D4Z110001M | Black | 1 m | Order online |
| C6D4Z110002M | Black | 2 m | Order online |
| C6D4Z110003M | Black | 3 m | Order online |
| C6D4Z110005M | Black | 5 m | Order online |
| C6D4Z1060D5M | Blue | 0.5 m | Order online |
| C6D4Z106001M | Blue | 1 m | Order online |
| C6D4Z106002M | Blue | 2 m | Order online |
| C6D4Z106003M | Blue | 3 m | Order online |
| C6D4Z106005M | Blue | 5 m | Order online |
| C6D4Z1010D5M | Brown | 0.5 m | Order online |
| C6D4Z101001M | Brown | 1 m | Order online |
| C6D4Z101002M | Brown | 2 m | Order online |
| C6D4Z101003M | Brown | 3 m | Order online |
| C6D4Z101005M | Brown | 5 m | Order online |
| C6D4Z1050D5M | Green | 0.5 m | Order online |
| C6D4Z105001M | Green | 1 m | Order online |
| C6D4Z105002M | Green | 2 m | Order online |
| C6D4Z105003M | Green | 3 m | Order online |
| C6D4Z105005M | Green | 5 m | Order online |
| C6D4Z1080D5M | Grey | 0.5 m | Order online |
| C6D4Z108001M | Grey | 1 m | Order online |
| C6D4Z108002M | Grey | 2 m | Order online |
| C6D4Z108003M | Grey | 3 m | Order online |
| C6D4Z108005M | Grey | 5 m | Order online |
| C6D4Z1030D5M | Orange | 0.5 m | Order online |
| C6D4Z103001M | Orange | 1 m | Order online |
| C6D4Z103002M | Orange | 2 m | Order online |
| C6D4Z103003M | Orange | 3 m | Order online |
| C6D4Z103005M | Orange | 5 m | Order online |
| C6D4Z1070D5M | Purple | 0.5 m | Order online |
| C6D4Z107001M | Purple | 1 m | Order online |
| C6D4Z107002M | Purple | 2 m | Order online |
| C6D4Z107003M | Purple | 3 m | Order online |
| C6D4Z107005M | Purple | 5 m | Order online |
| C6D4Z1020D5M | Red | 0.5 m | Order online |
| C6D4Z102001M | Red | 1 m | Order online |
| C6D4Z102002M | Red | 2 m | Order online |
| C6D4Z102003M | Red | 3 m | Order online |
| C6D4Z102005M | Red | 5 m | Order online |
| C6D4Z1090D5M | White | 0.5 m | Order online |
| C6D4Z109001M | White | 1 m | Order online |
| C6D4Z109002M | White | 2 m | Order online |
| C6D4Z109003M | White | 3 m | Order online |
| C6D4Z109005M | White | 5 m | Order online |
| C6D4Z1040D5M | Yellow | 0.5 m | Order online |
| C6D4Z104001M | Yellow | 1 m | Order online |
| C6D4Z104002M | Yellow | 2 m | Order online |
| C6D4Z104003M | Yellow | 3 m | Order online |
| C6D4Z104005M | Yellow | 5 m | Order online |
Specifications
Product Overview
| Suitable Applications | Horizontal and building cabling. Support current and future Category6 & 5e applications, such as: 10Base-T, 100Base-TX and 1000Base-T. |
|---|
Physical Characteristics (Overall)
| Wiring Scheme | T568A/B-T568A/B |
|---|---|
| Packaging | Individually packaged in a clear plastic bag. |
Conductor
| AWG | 28 |
|---|---|
| Stranding | Stranded |
| Material | BC - Bare Copper |
| No. of Pairs | 4 |
Insulation
| Material | PE - Polyethylene |
|---|
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nominal Diameter | 3.8 mm |
Connectors
Materials
| Description | Material | Type |
|---|---|---|
| Plug | Unshielded Polycarbonate | RJ45 |
| Boot | Polycarbonate | Snagless |
| Front Connection | Phosphor bronze plated with 1.27μm gold over 2.54μm nickel undercoat | Blades |
Electrical Characteristics
| Dielectric Strength | 750 V AC (RMS) |
|---|---|
| Current Rating | 1.5 A |
| Insulation Resistance | 5 G ohm*km |
| Voltage Rating | 30 V DC |
Conductor DCR
| Max. Conductor DCR | 236 Ohm/km |
|---|
Temperature Range
| Installation Temperature Range | 0°C To +75°C |
|---|---|
| Operating Temperature Range | -20°C To +75°C |
Mechanical Characteristics
| Plug /Jack Compatibility | RJ45 |
|---|
Termination Interface
| Termination | RJ45 |
|---|---|
| Connection | Mated Connection |
| Durabilities | 750 Cycles |
Standards
| ISO/IEC Compliance | ISO/IEC 11801-1 |
|---|---|
| Data Category | Category 6 |
| TIA/EIA Compliance | TIA-568.2-D |
Applicable Environmental and Other Programs
| Environmental Space | Indoor |
|---|---|
| EU Directive 2002/95/EC (RoHS) | Yes |
Suitability
| Suitability - Indoor | Yes |
|---|
Related Part Numbers
| Related Parts | CAT6 Modular Jacks, CAT6 Patch Panels |
|---|
Product Notes
| Notes | Power over Ethernet (PoE) applications, including PoE++ (IEEE 802.3bt). For 28 AWG patch cords, cable bundling and installation practices shall follow ANSI/TIA TSB-184-A-1 (2019) to manage temperature rise. |
|---|
History
| Update and Revision | Revision Number: 0.16 Revision Date: 06-08-2026 |
|---|
