Product Number: C6D1108004

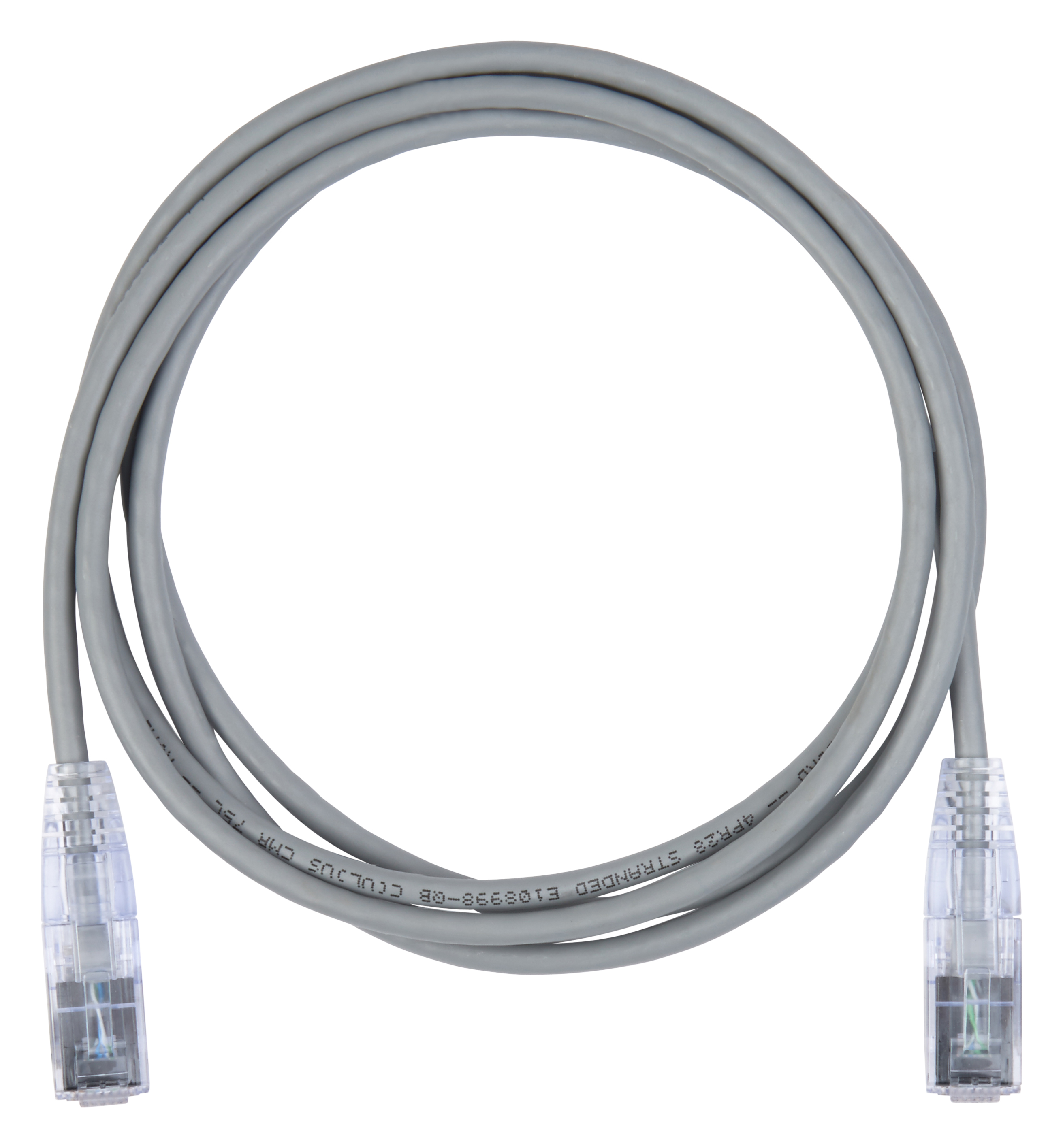

Cable Assemblies - CAT6 Performance Modular Cord, 4 ft. (1.2 m)

Name: Belden C6D1108004
Brand: Belden
SKU: C6D1108004

CAT6 Performance Patch Cord UTP, 4 Pair, 28 AWG Stranded, CMR, T568A/B-T568A/B, Gray, 4 ft. (1.2 m)

Ships from and sold by A5 IT.

Specifications

Suitable Applications	TIA Category 6, ISO Class E, 1000BASE-T, Support Power over Ethernet (up to 100W), Cisco UPOE (up to 60W) and Power over HDBase-T (up to 100W)

Overall Nominal Diameter	0.15 in
Wiring Scheme	T568A/B-T568A/B
Packaging	Individually packaged in a clear plastic bag

Material	PE - Polyethylene

Material	PVC - Polyvinyl Chloride

Description	Material	Type
Plug	Polycarbonate - UL94V-0	RJ45
Boot	Polycarbonate - UL94V-0
Front Connection	Phosphor Bronze with 50u inch Gold over Nickel Plating	Blades

UL Voltage Rating	300 V RMS

Installation Temperature Range	-10°C To +60°C
Storage Temperature Range	-40°C To +70°C
Operating Temperature Range	-10°C To +60°C

Maximum Recommended Pulling Tension	11.250 lbs
Min Bend Radius (Overall Cable)	0.580 in
Plug /Jack Compatibility	RJ45

UL Rating	Riser
TIA/EIA Compliance	Category 6 - TIA-568.2-D ISO/IEC 11801-1
IEEE Compliance	IEEE 802.3at type 1 and 2 (PoE) up to 30W, IEEE 802.3bt type 3 and 4 (PoE) up to 100W, CISCO (UPOE) up to 60W, Power over HDBaseT TM (POH) up to 100W
Other Standards	IEC 60603-7, ANSI/TIA 1096-A (formerly FCC Part 68-F)

Suitability - Indoor	Yes

UL voltage rating	300 V RMS
Safety Listing	c(UL)us Listed

Related Parts	CAT6+ Modular Jacks, CAT6+ RJ45 Couplers, CAT6+ Patch Panels

Notes	Belden 28 AWG cords meet TIA performance standards at reduced lengths with an attenuation de-rating value of 1.95. For guidelines and limitations on using 28 AWG cord for power delivery, see TIA-TSB-184-A-1. Cable weight: 0.012 Lbs/ft. This product may be protected by one or more patents. For further information, please visit: https://www.belden.com/patents .
Labeling	Labeling: Belden Part Number and Cord Length
