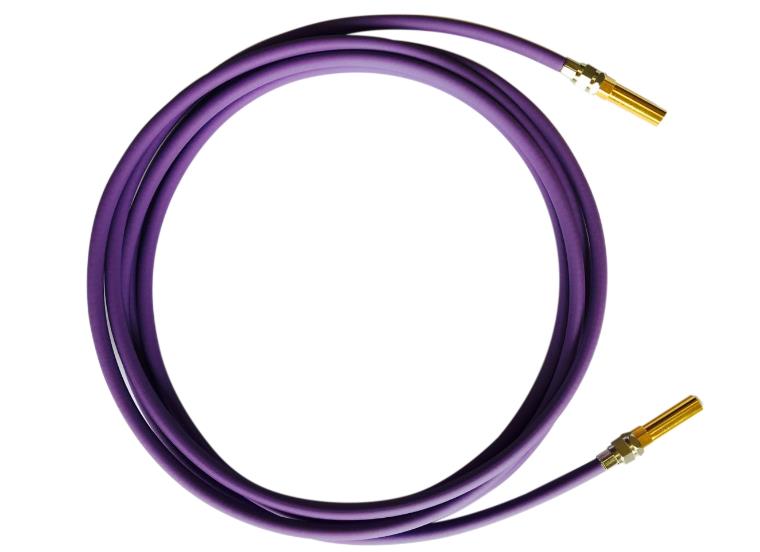

1505F RG59, Mini-WECO Plug to Mini-WECO Plug, Video Patch Cord
1505F RG59, Mini-WECO Plug to Mini-WECO Plug, Video Patch Cord
- Availability
- Asia Pacific
- Status
- Active
- Orderable items
- 4
Part numbers
VPC1505FWW07L01 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| VPC1505FWW07L0D5 | Violet | 0.5 m | Order online |
| VPC1505FWW07L01 | Violet | 1 m | Order online |
| VPC1505FWW07L02 | Violet | 2 m | Order online |
| VPC1505FWW07L03 | Violet | 3 m | Order online |
Specifications
Physical Characteristics (Overall)
| Packaging | Product Individually packaged in a transparent polybag. |
|---|
Inner Shield
| Type | Braid |
|---|---|
| Coverage [%] | 95% |
Connectors
Materials
| Description | Material | Type |
|---|---|---|
| Connector | Mini-WECO plug | |
| Outer Contact | Brass with gold plating | |
| Dielectric & Entry Brusing | PTFE | |
| Inner Contact | Brass with gold plating |
Construction and Dimensions
| Cable Type | 75 Ohm 1505F RG59 Serial Digital Coax cable |
|---|
Electrical Characteristics
| Voltage Rating | 300 V (rms) |
|---|
Impedance
| Nominal Impedance | 75 Ohm |
|---|
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. RL (Return Loss) [dB] |
|---|---|---|
| 5 - 1500 MHz | <3 dB | 15 dB |
| 1500 - 3000 MHz | <3 dB | 10 dB |
Voltage
| Dielectric Withstand Voltage | 1200 V (rms) |
|---|
Temperature Range
| Operating Temperature Range | -35°C to +75°C |
|---|
Mechanical Characteristics
| Maximum Recommended Pulling Tension | 20 lbs |
|---|---|
| Min Bend Radius (Overall Cable) | 63.5 mm |
| Termination Front Connection Durability | 500 |
| Termination Rear Connection Durability | 500 |
Standards
| Military Compliance | MIL STD 202G |
|---|
Applicable Environmental and Other Programs
| EU Directive 2011/65/EU (RoHS 2) | Yes |
|---|
Flammability, LS0H, Toxicity Testing
| UL Flammability | UL CM Flame Rated |
|---|
Related Part Numbers
| Related Parts | Belden’s VPNS1532 and VPNS1032 Video Patch Panel |
|---|
History
| Update and Revision | Revision Number: 0.18 Revision Date: 04-08-2022 |
|---|
