MediaFlex 2-Gang Faceplates
MediaFlex Faceplate, Double Gang
- Availability
- Global
- Status
- Active
- Orderable items
- 6
Part numbers
MEDIAFLEX DG FACEPLATES is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Order |
|---|---|---|
| AX101870 | Almond | Order online |
| AX101872 | Black | Order online |
| AX101871 | Electric White | Order online |
| AX101869 | Gray | Order online |
| AX102570 | Ivory | Order online |
| AX102609 | White | Order online |
Specifications
Product Overview
| Suitable Applications | Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800, 3600, 2400, 1200, Fiber and Coax. |
|---|
Physical Characteristics (Overall)
| Overall Height | 4.5 m |
|---|---|
| Overall Width | 5.18 |
| Overall Depth | 0.77 |
| Front Connection | Flush |
| Packaging | Individually packaged in a plastic bag. |
Connectors
Materials
| Description | Faceplate |
|---|---|
| Material | Plastic - UL94V-0 |
Temperature Range
| Installation Temperature Range | -10 to 60°C |
|---|---|
| Storage Temperature Range | -40 to 70°C |
| Operating Temperature Range | -10 to 60°C |
Mechanical Characteristics
| Connector System Compatibility | Mediaflex |
|---|
Applicable Environmental and Other Programs
| Environmental Space | Indoor |
|---|---|
| EU Directive 2002/95/EC (RoHS) | Yes |
| MII Order #39 (China RoHS) | EUP 50 |
Flammability, LS0H, Toxicity Testing
| Safety Listing | ACA, Bi-national Standard Listed |
|---|
Related Part Numbers
| Related Parts | Compatible with MediaFlex Inserts |
|---|
Product Notes

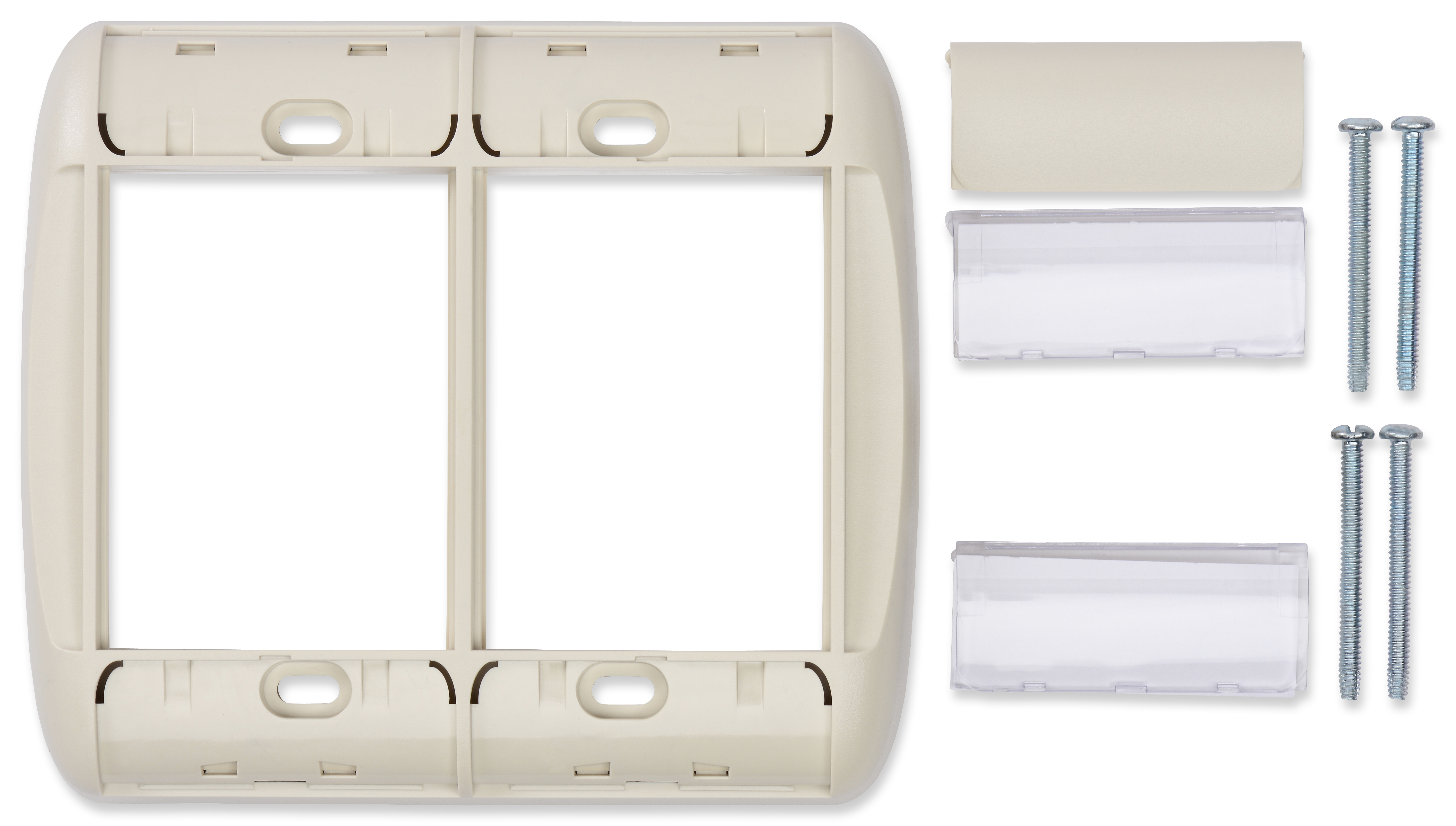

| Included Parts | Windows, paper, 6-32 screws, installation guide |
|---|---|
| Notes | For proper installation refer to Installation Guide PX102063 included with the product or visit our web site at http://www.belden.com |
History
| Update and Revision | Revision Number: 0.169 Revision Date: 02-20-2026 |
|---|
