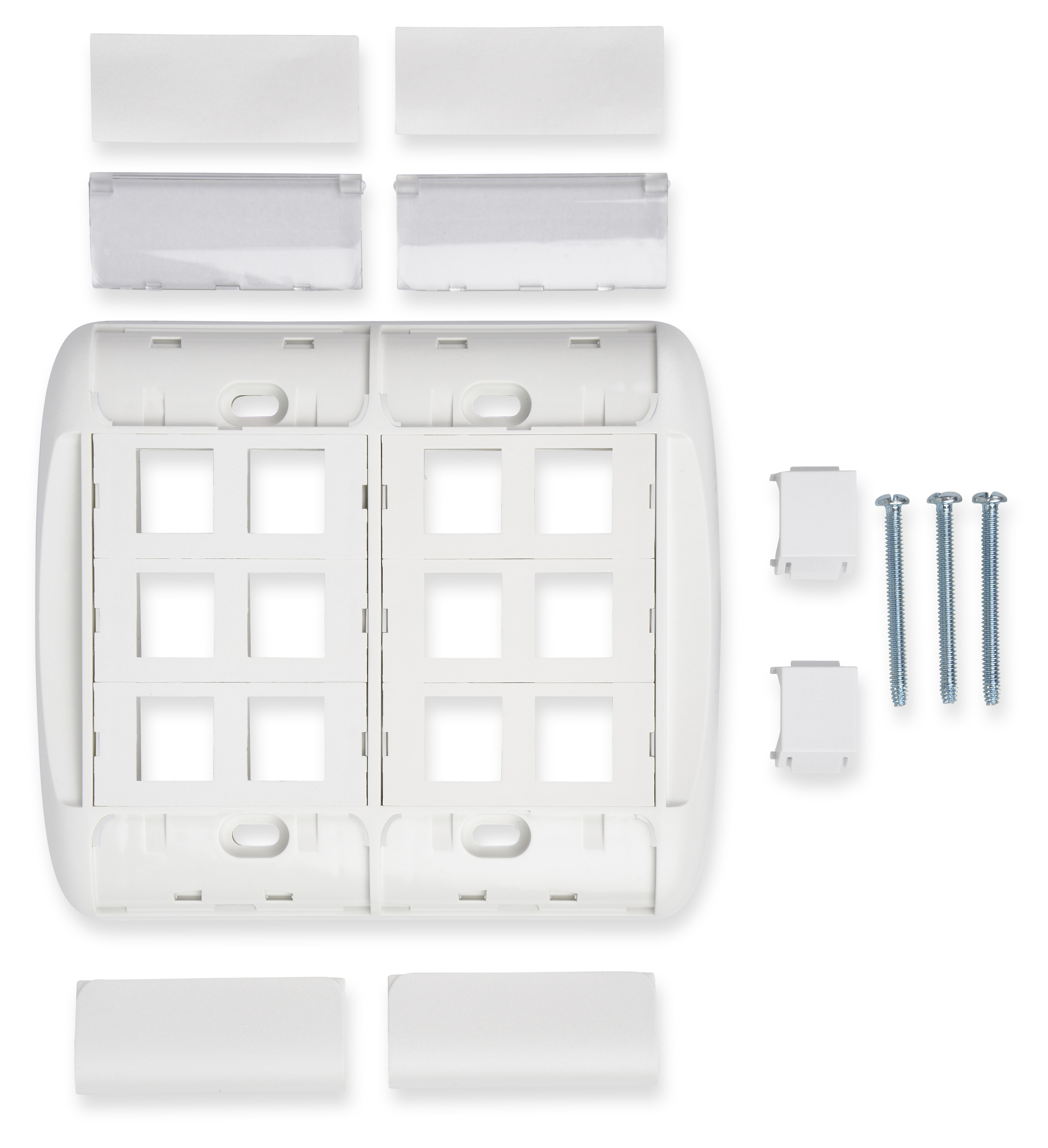

MediaFlex 2-Gang Faceplate Kit
MediaFlex Faceplate Kit, Double Gang. Available in several colors and port counts.
- Availability
- Global
- Status
- Active
- Orderable items
- 25
Part numbers
MEDIAFLEX DG FACEPLATE KITS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Port Count | Order |
|---|---|---|---|
| AX102434 | Almond | 12 Port | Order online |
| AX102436 | Almond | 8 Port | Order online |
| AX102519 | Almond | 8 Port | Order online |
| AX102521 | Almond | 6 Port | Order online |
| AX102523 | Almond | 6 Port | Order online |
| AX104492 | Black | 12 Port | Order online |
| AX105770 | Black | 6 Port | Order online |
| AX105772 | Black | 8 Port | Order online |
| AX105774 | Black | 6 Port | Order online |
| AX105776 | Black | 8 Port | Order online |
| AX102435 | Electric White | 12 Port | Order online |
| AX102437 | Electric White | 8 Port | Order online |
| AX102520 | Electric White | 8 Port | Order online |
| AX102522 | Electric White | 6 Port | Order online |
| AX102524 | Electric White | 6 Port | Order online |
| AX104488 | Gray | 12 Port | Order online |
| AX105769 | Gray | 6 Port | Order online |
| AX105771 | Gray | 8 Port | Order online |
| AX105773 | Gray | 6 Port | Order online |
| AX105775 | Gray | 8 Port | Order online |
| AX105782 | Ivory | 8 Port | Order online |
| AX105783 | Ivory | 8 Port | Order online |
| AX105784 | Ivory | 12 Port | Order online |
| AX105785 | Ivory | 6 Port | Order online |
| AX105786 | Ivory | 8 Port | Order online |
Specifications
Product Overview
| Suitable Applications | Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800,3600, 2400 and 1200 |
|---|
Physical Characteristics (Overall)
| Overall Height | 4.62 m |
|---|---|
| Overall Width | 5.31 |
| Overall Depth | 0.805 |
| Front Connection | Flush |
| Packaging | Individually packaged in a plastic bag. |
| Weight | 0.233 kg |
Connectors
Materials
| Description | Material |
|---|---|
| Faceplate | Plastic - UL94V-0 |
| Insert | Plastic - UL94V-0 |
Temperature Range
| Installation Temperature Range | -10 to 60°C |
|---|---|
| Storage Temperature Range | -40 to 70°C |
| Operating Temperature Range | -10 to 60°C |
Mechanical Characteristics
| Connector System Compatibility | Mediaflex |
|---|---|
| Connector/Hardware Retention | 20 lbs |
Applicable Environmental and Other Programs
| Environmental Space | Indoor |
|---|---|
| EU Directive 2002/95/EC (RoHS) | Yes |
| MII Order #39 (China RoHS) | EUP 50 |
Flammability, LS0H, Toxicity Testing
| Safety Listing | ACA, Bi-national Standard Listed |
|---|
Related Part Numbers
| Related Parts | Compatible with 10GX, CAT6+ and CAT5E KeyConnect Modular Jacks and KeyConnect Multimedia Modules |
|---|
Product Notes
| Included Parts | Windows, paper, 6-32 screws, 2-port insert, blank, installation guide |
|---|---|
| Notes | For proper installation refer to Installation Guide PX102063 included with the product or visit our web site at http://www.belden.com |
History
| Update and Revision | Revision Number: 0.164 Revision Date: 02-20-2026 |
|---|
