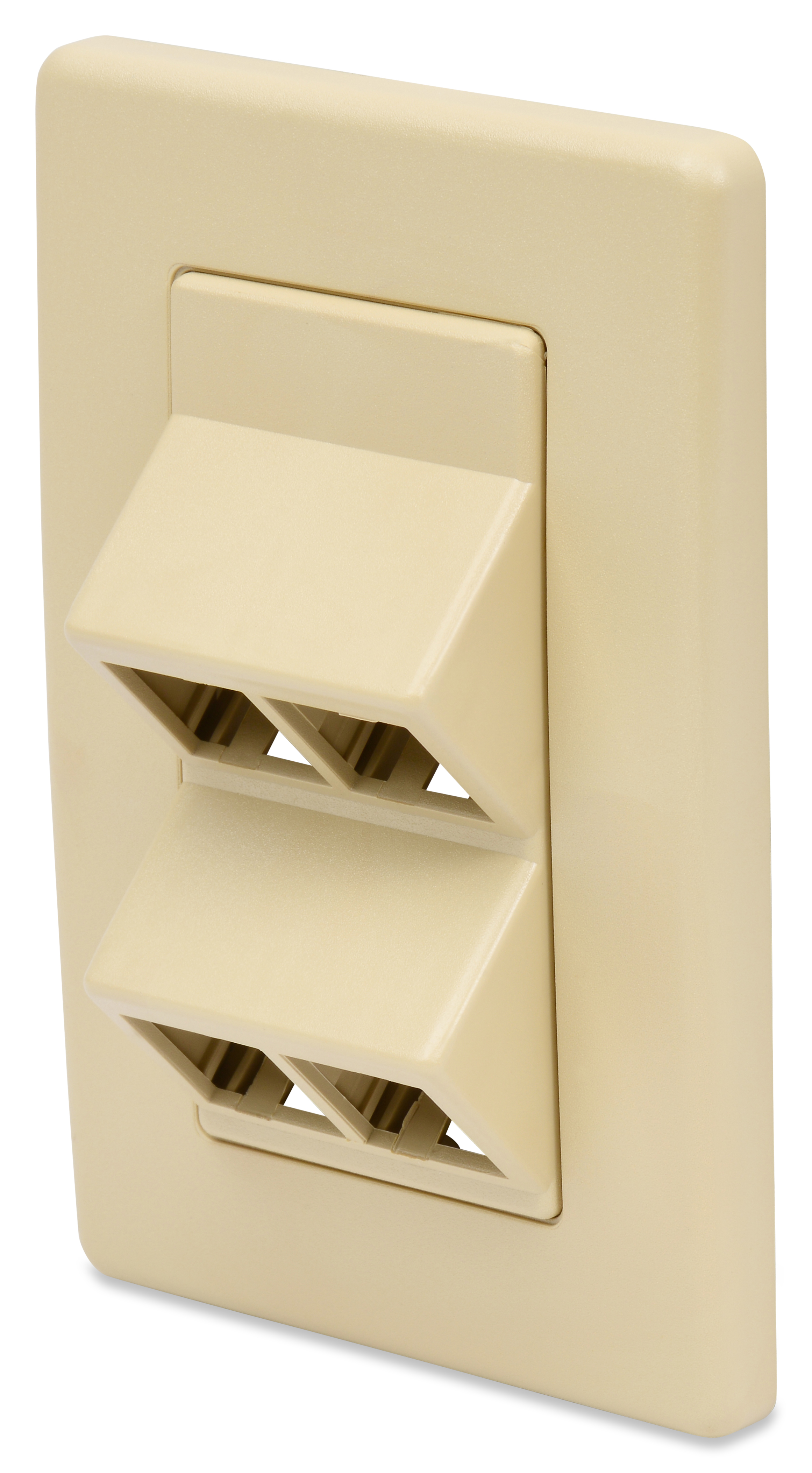

Angled & Flush MDVO Faceplates
Angled and Flush MDVO Faceplates are available in 1, 4, 8, & 12 Port Counts and many colors.
- Availability
- Global
- Status
- Active
- Orderable items
- 20
Part numbers
MDVO FACEPLATES is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Port Count | Order |
|---|---|---|---|
| A0405256 | Almond | 1 Port | Order online |
| A0405295 | Almond | 8 Port | Order online |
| A0620807 | Almond | 12 Port | Order online |
| A0645268 | Almond | 4 Port | Order online |
| A0405258 | Black | 1 Port | Order online |
| A0405298 | Black | 8 Port | Order online |
| A0620809 | Black | 12 Port | Order online |
| A0645270 | Black | 4 Port | Order online |
| A0405255 | Gray | 1 Port | Order online |
| A0405294 | Gray | 8 Port | Order online |
| A0620806 | Gray | 12 Port | Order online |
| A0645267 | Gray | 4 Port | Order online |
| AX102585 | Ivory | 1 Port | Order online |
| AX102586 | Ivory | 8 Port | Order online |
| AX102587 | Ivory | 12 Port | Order online |
| AX102588 | Ivory | 4 Port | Order online |
| A0405296 | White | 8 Port | Order online |
| A0620808 | White | 12 Port | Order online |
| A0645269 | White | 4 Port | Order online |
| A0405257 | White | 1 Port | Order online |
Specifications
Product Overview
| Suitable Applications | Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800,3600, 2400 and 1200 |
|---|
Physical Characteristics (Overall)
| Overall Height | 4.49 m |
|---|---|
| Overall Width | 3 |
| Overall Depth | 107 |
| Front Connection | Flush |
| Packaging | Individually packaged in a plastic bag. |
| Weight | 0.22 kg |
Connectors
Materials
| Material | Plastic - UL94V-0 |
|---|
Temperature Range
| Installation Temperature Range | -10 to 60°C |
|---|---|
| Storage Temperature Range | -40 to 70°C |
| Operating Temperature Range | -10 to 60°C |
Mechanical Characteristics
| Connector System Compatibility | MDVO |
|---|---|
| Connector/Hardware Retention | 20 lbs |
Applicable Environmental and Other Programs
| Environmental Space | Indoor |
|---|---|
| EU Directive 2002/95/EC (RoHS) | Yes |
| MII Order #39 (China RoHS) | EUP 50 |
Flammability, LS0H, Toxicity Testing
| Safety Listing | ACA, Bi-national Standard Listed |
|---|
Related Part Numbers
| Related Parts | Compatible with 10GX, CAT6+ and CAT5E MDVO-style Modular Jacks and MDVO Multimedia Modules |
|---|
Product Notes
| Included Parts | blank, 6-32 screw, installation sheet |
|---|
History
| Update and Revision | Revision Number: 0.189 Revision Date: 02-20-2026 |
|---|
