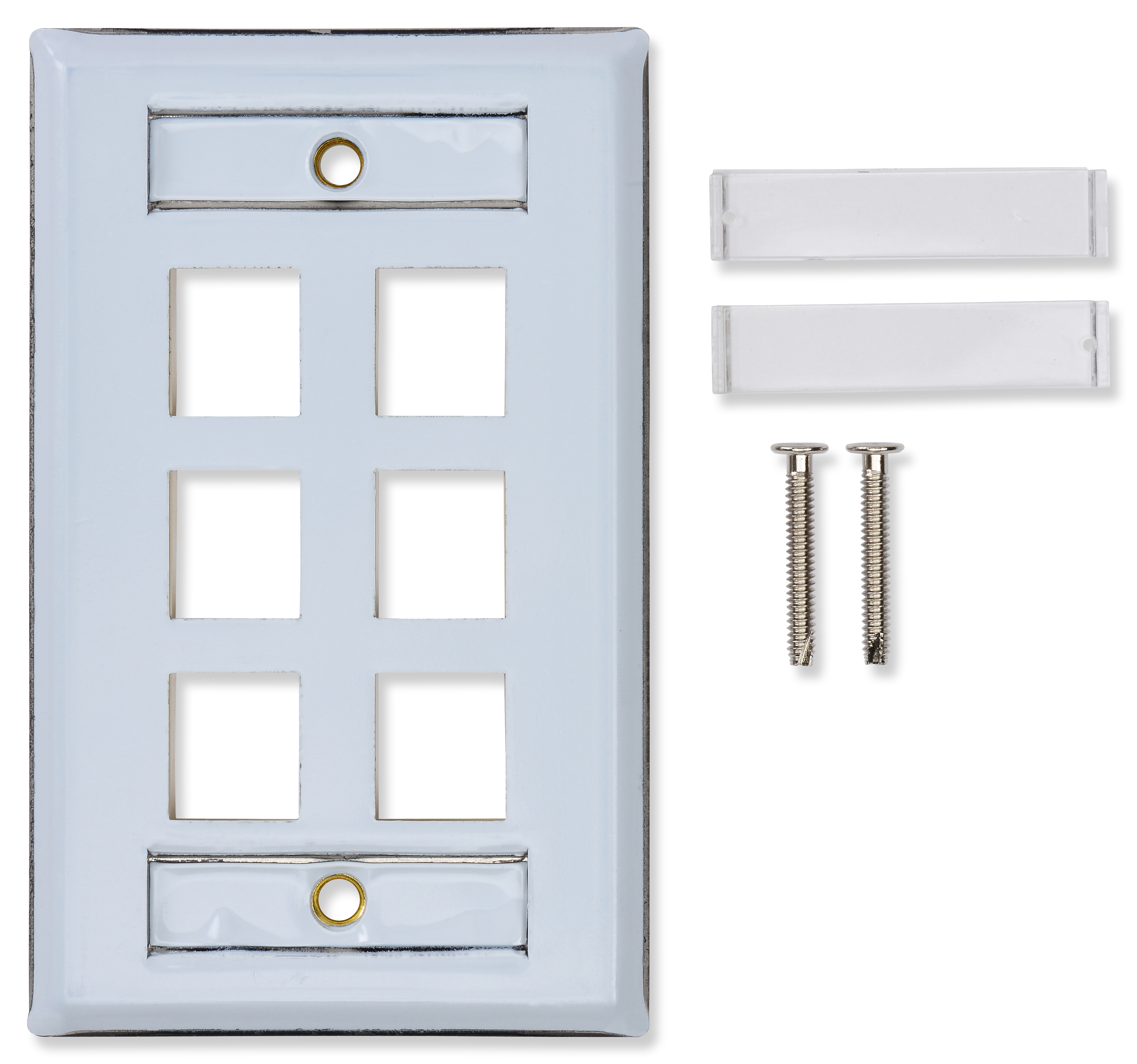

KeyConnect Stainless Steel, Single-Gang Faceplate
KeyConnect Stainless Steel, Single-Gang Faceplate, Compatible with KeyConnect style modular jacks
- Availability
- Global
- Status
- Active
- Orderable items
- 9
Part numbers
KEYCONNECT STAINLESS SG FP is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Port Count | Order |
|---|---|---|---|
| AX102006 | Stainless Steel | 1 Port | Order online |
| AX102007 | Stainless Steel | 2 Port | Order online |
| AX102008 | Stainless Steel | 3 Port | Order online |
| AX102009 | Stainless Steel | 4 Port | Order online |
| AX102010 | Stainless Steel | 6 Port | Order online |
| AX104230 | Stainless Steel | 1-Port with ID Windows | Order online |
| AX104231 | Stainless Steel | 2-Port with ID Windows | Order online |
| AX104232 | Stainless Steel | 4-Port with ID Windows | Order online |
| AX104233 | Stainless Steel | 6-Port with ID Windows | Order online |
Specifications
Product Overview
| Suitable Applications | Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800, 3600, 2400, 1200, fiber and coax |
|---|
Physical Characteristics (Overall)
| Overall Height | 4.51 in |
|---|---|
| Overall Width | 2.78 in |
| Overall Depth | 0.45 in |
| Front Connection | Flush |
| Packaging | Individually packaged in a plastic bag. |
| Weight | 0.06 kg |
Connectors
Materials
| Material | Stainless Steel |
|---|
Temperature Range
| Installation Temperature Range | -10 to 60°C |
|---|---|
| Storage Temperature Range | -40 to 70°C |
| Operating Temperature Range | -10 to 60°C |
Mechanical Characteristics
| Connector System Compatibility | KeyConnect |
|---|---|
| Connector/Hardware Retention | 20 lbs |
Applicable Environmental and Other Programs
| Environmental Space | Indoor |
|---|---|
| EU Directive 2002/95/EC (RoHS) | Yes |
| MII Order #39 (China RoHS) | EUP 50 |
Flammability, LS0H, Toxicity Testing
| Safety Listing | c(UL)us Listed |
|---|
Related Part Numbers
| Related Parts | Compatible with 10GX, CAT6+ and CAT5E KeyConnect Modular Jacks and KeyConnect Multimedia Modules |
|---|
Product Notes
| Included Parts | 6-32 screw |
|---|---|
| Notes | For proper installation refer to Installation Guide PX103826. Visit our web site at http://www.belden.com |
History
| Update and Revision | Revision Number: 0.434 Revision Date: 02-20-2026 |
|---|
