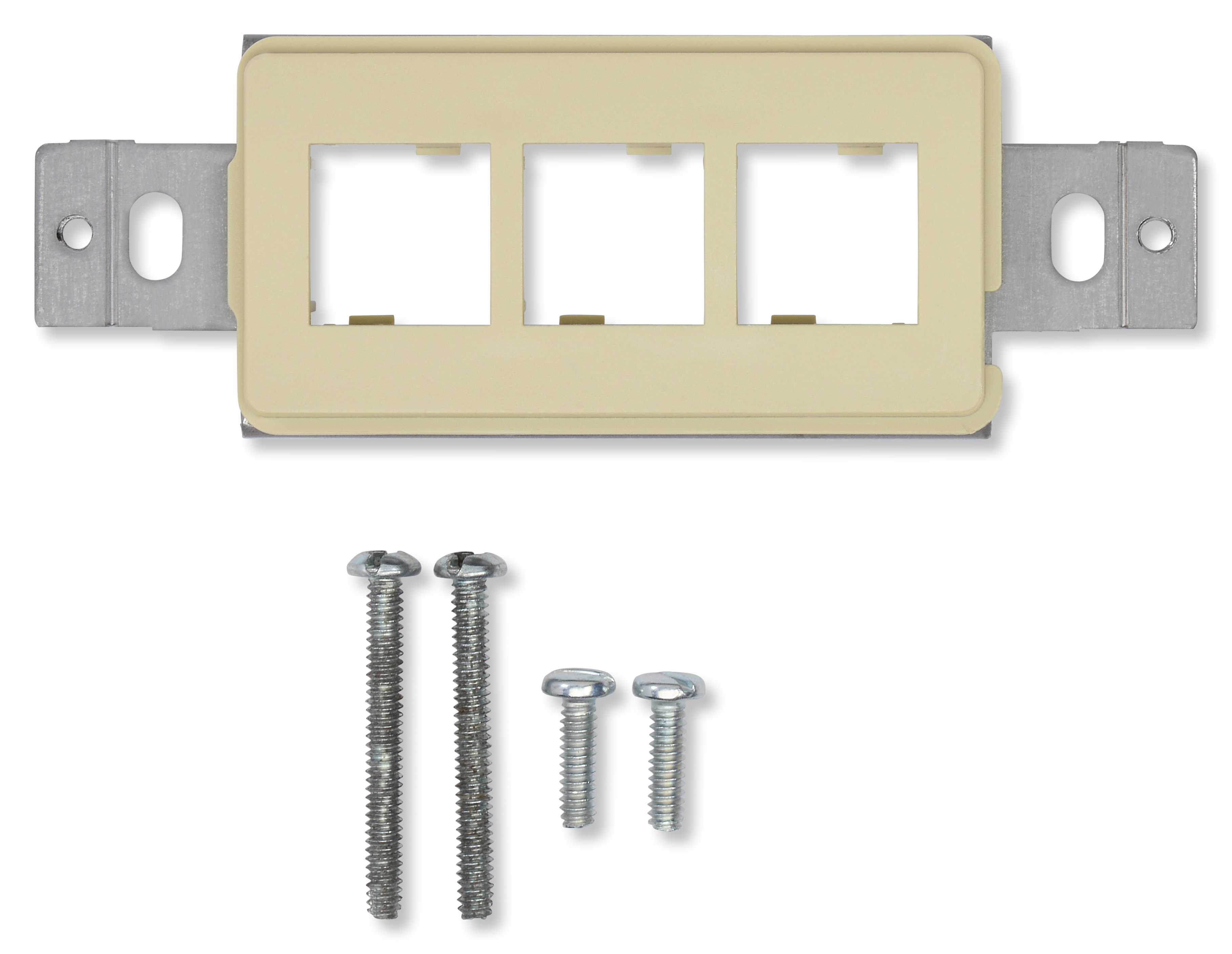

3-Port MDVO Deco Adapters
MDVO Deco Adapters are available in many colors.
- Availability
- Global
- Status
- Active
- Orderable items
- 5
Part numbers
MDVO DECO ADAPTERS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Port Count | Order |
|---|---|---|---|
| A0409652 | Almond | 3 Port | Order online |
| A0409654 | Black | 3 Port | Order online |
| A0409651 | Gray | 3 Port | Order online |
| AX102593 | Ivory | 3 Port | Order online |
| A0409653 | White | 3 Port | Order online |
Specifications
Product Overview
| Suitable Applications | Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800,3600, 2400 and 1200 |
|---|
Physical Characteristics (Overall)
| Overall Height | 4.1 m |
|---|---|
| Overall Width | 1.43 |
| Overall Depth | 0.567 |
| Number of Ports | 3 Port |
| Front Connection | Flush |
| Packaging | Individually packaged in a plastic bag. |
| Weight | 0.11 kg |
Connectors
Materials
| Material | Plastic - UL94V-0 |
|---|
Temperature Range
| Installation Temperature Range | -10 to 60°C |
|---|---|
| Storage Temperature Range | -40 to 70°C |
| Operating Temperature Range | -10 to 60°C |
Mechanical Characteristics
| Connector System Compatibility | MDVO |
|---|---|
| Connector/Hardware Retention | 20 lbs |
Applicable Environmental and Other Programs
| Environmental Space | Indoor |
|---|---|
| EU Directive 2002/95/EC (RoHS) | Yes |
| MII Order #39 (China RoHS) | EUP 50 |
Flammability, LS0H, Toxicity Testing
| Safety Listing | ACA, Bi-national Standard Listed |
|---|
Related Part Numbers
| Related Parts | Compatible with 10GX, CAT6+ and CAT5E MDVO-style Modular Jacks and MDVO Multimedia Modules |
|---|
Product Notes
| Included Parts | installation sheet, #6-32 screws, blank |
|---|---|
| Notes | For proper installation refer to Installation Guide P0749203 included with the product or visit our web site at http://www.belden.com |
History
| Update and Revision | Revision Number: 0.174 Revision Date: 02-20-2026 |
|---|
