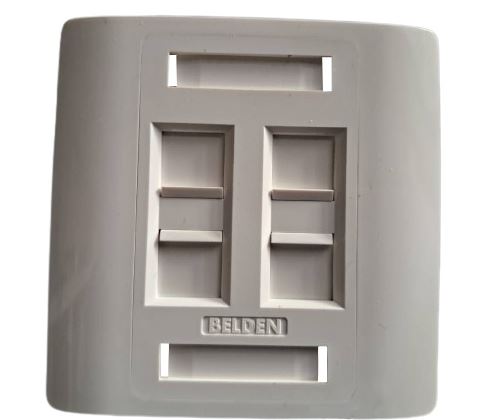

86×86 KeyConnect, Copper, Quad port faceplate, (Ivory white)
86×86 Key Connect Connect, Copper, flat quad port, UK style, premium four piece faceplate, (IVORY WHITE)
- Availability
- Asia Pacific
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Faceplate in work area environments to support current and future Category 5e, 6 and 6a Keystone connectivity |
|---|
Physical Characteristics (Overall)
| Overall Height | 86 mm |
|---|---|
| Overall Width | 86 mm |
| Overall Depth | 14.5 mm |
| Packaging | Individually packaged in a clear plastic bag. |
| Weight | 0.057 kg |
Connectors
Materials
| Material | Flame Retardant Plastic UL-94V0, ABS (Acrylonitrile Butadiene Styrene) |
|---|
Applicable Environmental and Other Programs
| Environmental Space | Indoor |
|---|---|
| EU Directive 2002/95/EC (RoHS) | Yes |
Flammability, LS0H, Toxicity Testing
| UL Flammability | UL-94V0 |
|---|
Product Notes
| Included Parts | Mounting Screws: 2 pcs, M 3.5 x 25 mm, Labels: 2 labels and 2 transparent plastic label cover |
|---|
History
| Update and Revision | Revision Number: 0.10 Revision Date: 09-21-2023 |
|---|
