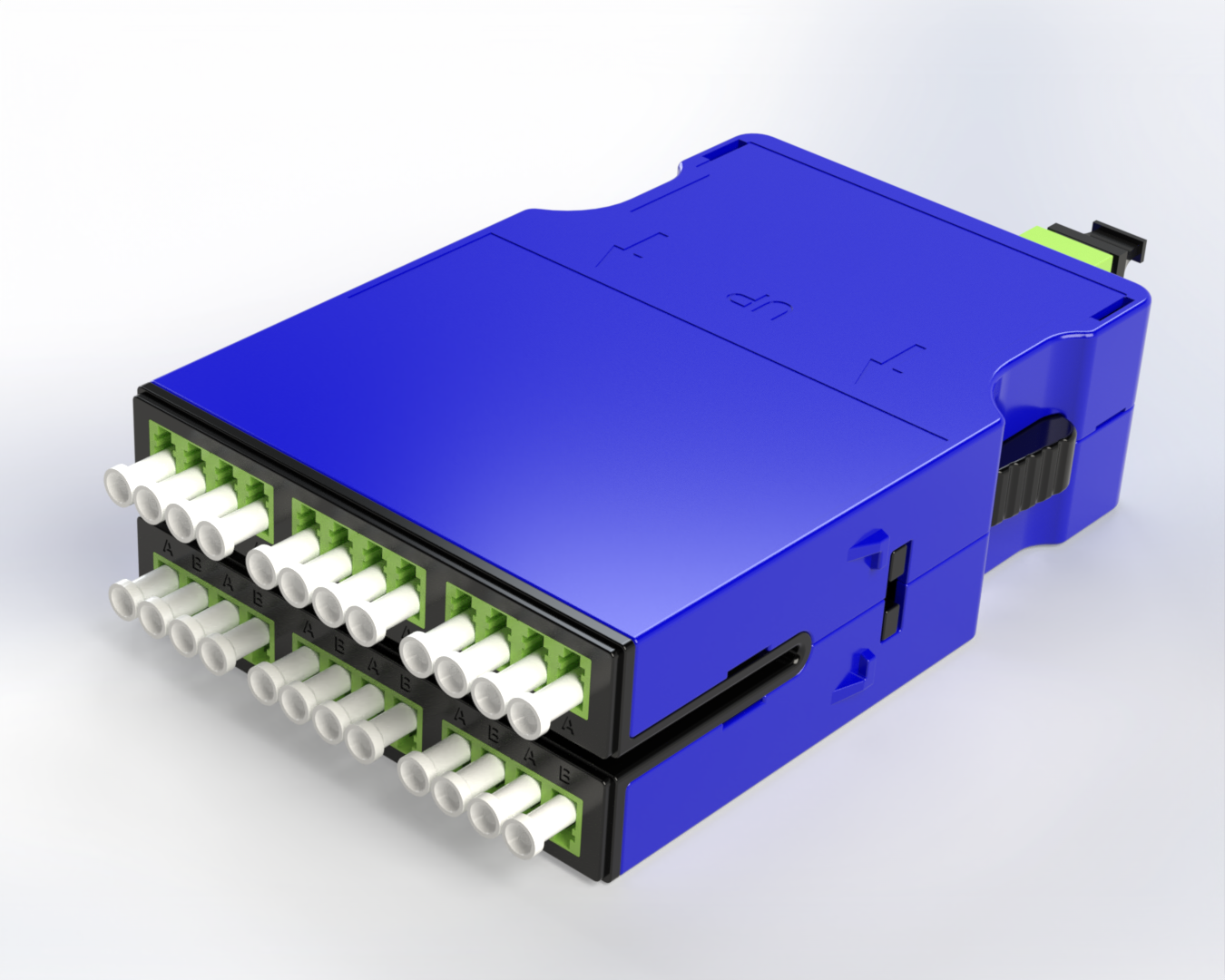

PatchPro 12-Port (24-Fiber) OM5 iPLM Ready LC Double Cassette STD Polarity
PatchPro 12-Port (24-Fiber) OM5 iPLM Ready LC Double Cassette STD Polarity
- Availability
- EMEA | Global
- Status
- Active
Specifications
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | Panel for Intelligent Ready (RFID based) Patching. Support current and future applications, such as: 10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI, ATM |
Construction
| Weight | 330 g |
|---|---|
| Overall Height | 38.0 mm |
| Overall Width | 95.4 mm |
| Overall Length | 146.7 mm |
| Overall Depth | 146.7 mm |
Physical Specifications
| Max Capacity | 12 Duplex LC Ports |
|---|
Mechanical Characteristics
| Maximum Insertion Loss | 0.6 dB |
|---|
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C To +60°C |
|---|---|
| Installation Temperature Range | -10°C To +60°C |
Product Material
Materials
| Description | Material | Type |
|---|---|---|
| LC Double Cassette | CE & RoHS compliant, UL 94 V-0 | Cassette Housing |
| LC Adapter | OM5 PC | 24 x LC Adapter |
| MTP Adapter | OM5 PC | 2 x MTP Adapter |
| Fiber Patch Cord | OM5 50 um multimode Fiber (IEC 60793-2-10 A1a.4) | 2 x LC-MTP patch cords |
Standards
| TIA/EIA Compliance | TIA/EIA-598 |
|---|
Related Part Numbers
| Related Parts | This LC Double Cassette is part of Belden’s PatchPro 96-fiber LC panel system. Please check the accessories section in Belden’s catalog for this item to see other related products you may need for the system. |
|---|
Product Notes
| Packaging | Individually packaged in a box |
|---|
History
| Update and Revision | Revision Number: 0.14 Revision Date: 11-28-2025 |
|---|
