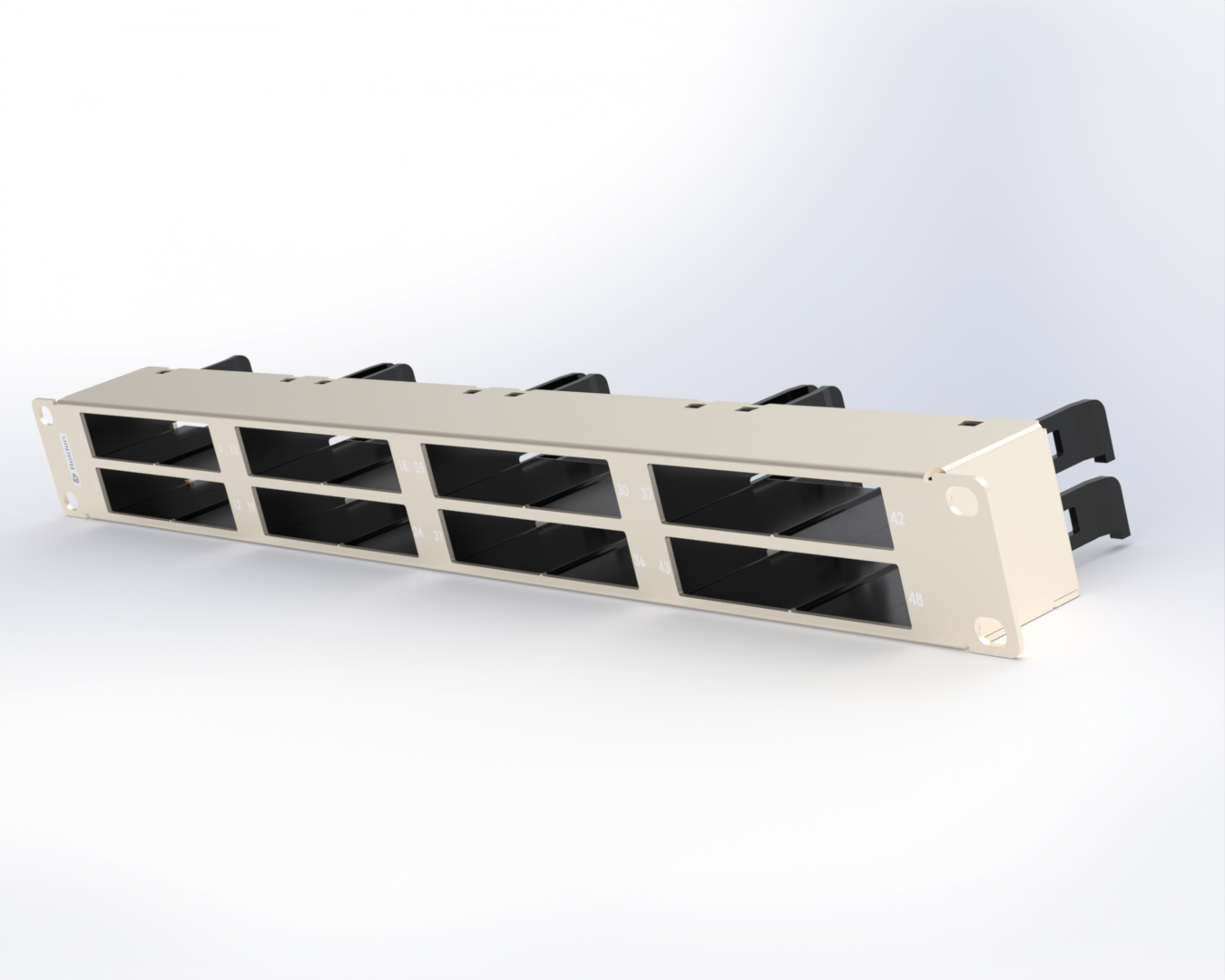

Empty Panel for Belden 96-Fiber PatchPro System
PatchPro® - 48-port 96-fiber iPLM Ready Modular 19" Panel - up to 4 double density cassettes
- Availability
- EMEA
- Status
- Active
Specifications
Physical Specifications
| Max Capacity | 4 LC Double Cassette, each LC Double Casette has 24 Fiber |
|---|
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10 °C to +60 °C |
|---|
Product Material
Materials
| Description | Material | Color | Type |
|---|---|---|---|
| Cold-rolled steel with nickel plating for corrosion resistance and strength | SPCC Steel (1.5 mm) | Metallic Silver (Nickel) | Patch Panel Body |
| Flame-retardant ABS plastic (UL 94V-0), lightweight and impact-resistant | ABS 94V-0 | Black | Port Bracket |
| Standard rack-mounting screws for 19” installation | Steel, Zinc plated | Silver | Mounting Screws |
| Belden logo printed on front panel | Ink/Screen print | White | Front Logo/Marking |
Related Part Numbers
| Included Parts | a. Port numbering label card x 8 b. Head machine screw x 4 c. Installation Guide x 1 |
|---|---|
| Related Parts | PPLSMOM, PPLAMPOM, PPL3MPOM, PPL4MPOM, PPL5MPOM PPLSMPOM-ALT, PPLAMPOM-ALT, PPL3MPOM-ALT, PPL4MPOM-ALT, PPL5MPOM-ALT PPFOUK-D PP range fiber patch cords |
Product Notes
| Packaging | 1 set per package |
|---|
History
| Update and Revision | Revision Number: 0.28 Revision Date: 10-29-2025 |
|---|
