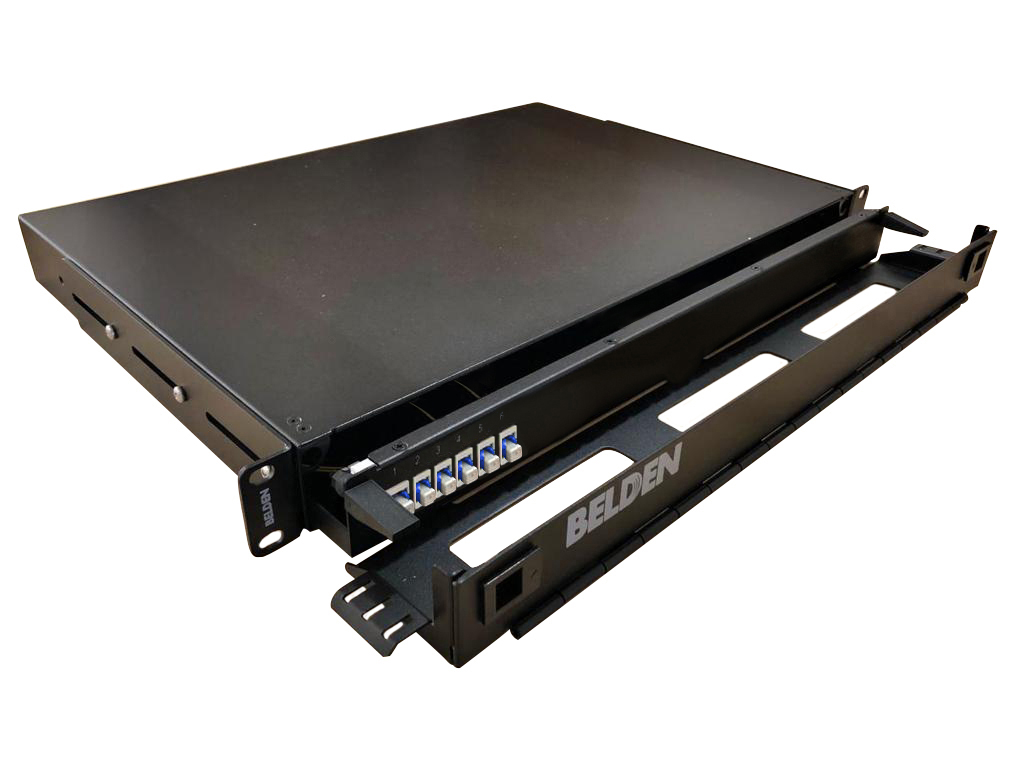

1U 6 Simplex SC-PC (6 Fiber) OS2 Loaded Patch Panel with Splicing Tray- Partially Loaded
1U 6 Simplex SC-PC (6 Fiber) OS2 Loaded Patch Panel with Splicing Tray- Partially Loaded
- Availability
- Asia Pacific
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Fiber Express solution for Backbone, Telecommunication Room, Main Distribution room and Data centers |
|---|
Physical Characteristics (Overall)
| Overall Height | 43.2 ± 0.3 mm |
|---|---|
| Overall Width | 482.6 mm |
| Overall Depth | 370 mm |
| Number of Ports | 6 Port |
| Front Connection | Flush |
| Packaging | Individually packaged in a cardboard box |
| Weight | 4.5000 kg |
Connectors
Materials
| Description | Material | Color |
|---|---|---|
| Panel | Textured powder coated Steel | Black |
| Fiber Adapter | Plastic | Blue |
| Accessories inside panel | ABS injection-molded splice tray pre-loaded in the panel, Velcro Straps, Cable Ties, PG13.5 water joint, Splice tubing, Adapters, 12 nos 2M Pigtails and Blanks |
Construction and Dimensions
| Max Capacity | 6 SC Simplex Adapters (6 Ports) |
|---|
Temperature Range
| Installation Temperature Range | -100C to +600C |
|---|---|
| Storage Temperature Range | -400C to +700C |
| Operating Temperature Range | -100C to +600C |
Mechanical Characteristics
| Connector System Compatibility | SC-PC |
|---|
Applicable Environmental and Other Programs
| Environmental Space | Indoor |
|---|---|
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| MII Order #39 (China RoHS) | EUP 50 |
History
| Update and Revision | Revision Number: 0.8 Revision Date: 04-08-2022 |
|---|
