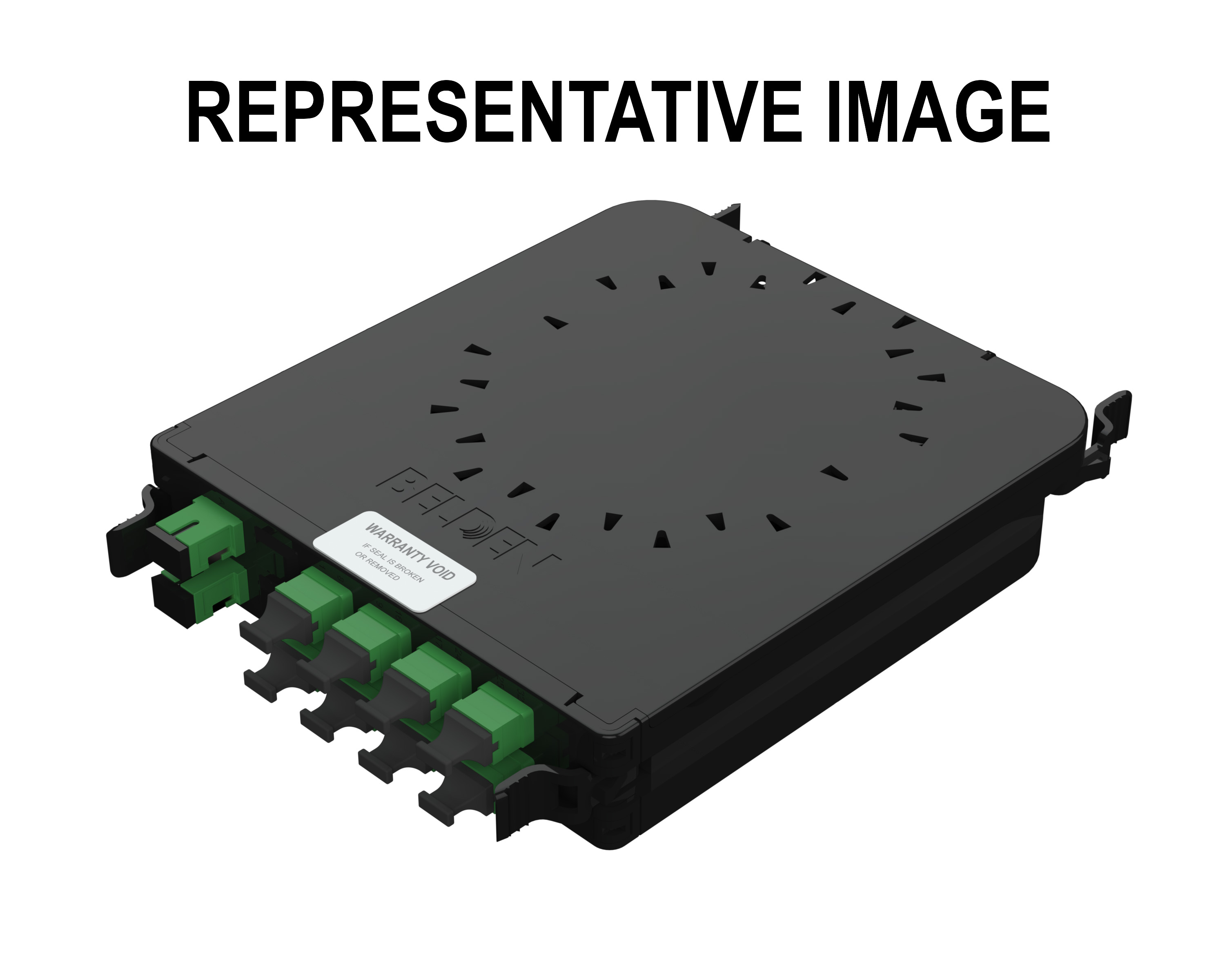

FX ECX Splitter Cassette, OS2, 1x32
FX ECX Splitter Cassette, OS2, 1x32, 2 Splitters, SC/APC Input, MPO/APC Output, Front
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Passive Optical LAN |
|---|
Construction
| Weight | 0.6 lbs |
|---|---|
| Overall Height | 1.3 in |
| Overall Width | 6.34 in |
| Overall Length | 8.74 in |
Fiber Cable Construction
| Fiber Type | OS2, G.657.A1, G.652.D |
|---|
Physical Specifications
| Max Capacity | 64 Fibers (Output) |
|---|
Optical Characteristics
| Wavelength | 1260-1650 Nanometers |
|---|
Mechanical Characteristics
| Front Connection | Static |
|---|---|
| Termination Style | Front |
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C To 60°C |
|---|---|
| Storage Temperature Range | -10°C To 60°C |
Product Material
Materials
| Description | Material | Color | Type |
|---|---|---|---|
| Housing | PC/ABS | Black | |
| Cover | Polycarbonate | Clear-Light Smoke | |
| Frame | PC/ABS | Black | Lead Frame |
| Adapter Output | Plastic - UL94V-0 | Green | MPO Adapter |
| Adapter Input | Plastic - UL94V-0 | Green | SC-Simplex/APC |
Transmission Specifications
| Splitter Configuration | 1 x 32 |
|---|---|
| IL Max (dB) | 17.3 |
| Uniformity Max (dB) | 1.5 |
| PDL Max (dB) | 0.3 |
| Directivity Min (dB) | -55 |
| RL Min (dB) | -55 |
Standards
| TIA/EIA Compliance | Telcordia GR-1209-CORE (splitters only), Telcordia GR-1221-CORE (splitters only) |
|---|---|
| MII Order #39 (China RoHS) | EUP 50 |
Related Part Numbers
| Related Parts | FX ECX Housings (4U, 2U, 1U), ECX Splice Cassettes, Patch Cords |
|---|
Product Notes
| Packaging | Individually packaged in a plastic shell, Shipped in cardboard box (12/box) |
|---|
History
| Update and Revision | Revision Number: 0.45 Revision Date: 10-23-2025 |
|---|
