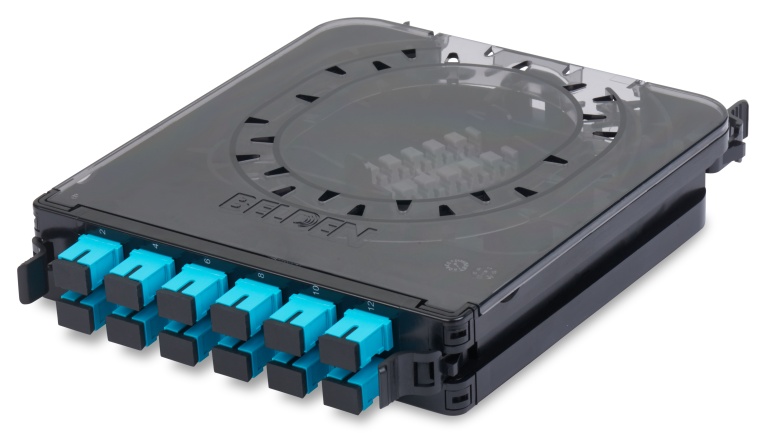

FX ECX Splice Cassette OM3 12 Ports
FX ECX Splice Cassette OM3 12 Ports (12-24 fibers).
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
Construction
| Weight | 0.6 lbs |
|---|---|
| Overall Height | 1.3 in |
| Overall Width | 6.34 in |
| Overall Length | 8.74 in |
Fiber Cable Construction
| Fiber Type | OM3 |
|---|
Mechanical Characteristics
| Front Connection | Static |
|---|
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C To 60°C |
|---|---|
| Storage Temperature Range | -10°C To 60°C |
Product Material
Materials
| Element | Description | Material | Color |
|---|---|---|---|
| Zirconia-Ceramic | Adapter Sleve Material | Zirconia-Ceramic | |
| Plastic - UL94V-0 | Front Connector Body | Plastic - UL94V-0 | Aqua |
| Plastic - UL94V-0 | Cassette Assembly | Plastic - UL94V-0 | Black |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Related Parts | FX ECX panels, FX Pigtails, FX Brilliance |
|---|
Product Notes
| Packaging | Individually packaged in a plastic shell, Shipped in cardboard box (12/box) |
|---|
History
| Update and Revision | Revision Number: 0.66 Revision Date: 03-10-2026 |
|---|
