FX ECX Frame Singlemode SC Duplex APC

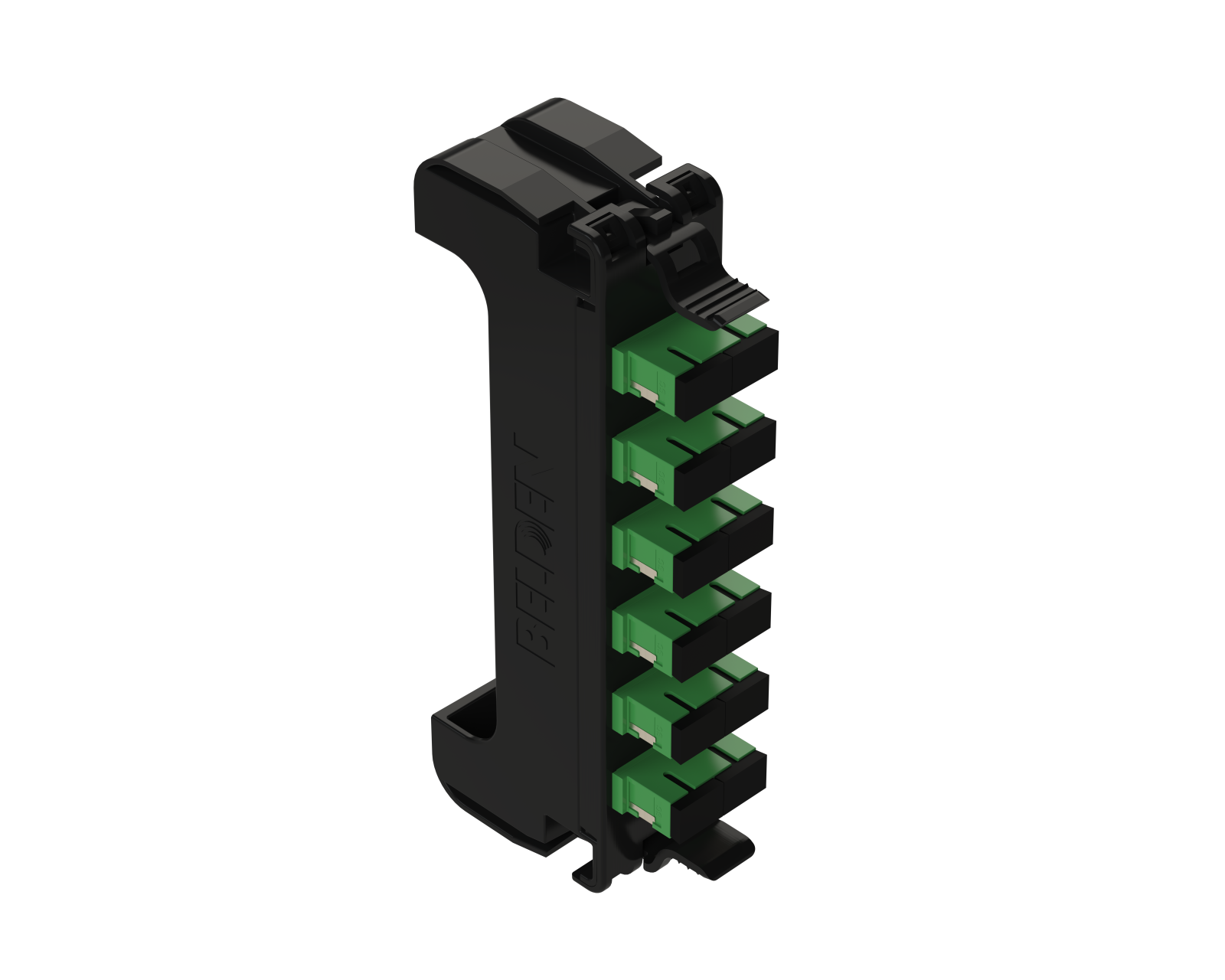

FX ECX FRAME, OS2, 6 PORTS, SC/APC DUPLEX, GREEN ADAPTERS
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
FFSX06SA is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Connector Type | Port Count | Order |
|---|---|---|---|---|
| FFSX06SA | Blue | SC/APC Duplex | 6 Port | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
Construction
| Weight | 0.2 |
|---|---|
| Overall Height | 6.34 in |
| Overall Width | 1.3 in |
| Overall Length | 2.890 in |
| Overall Depth | 2.88 in |
Fiber Cable Construction
| Fiber Type | OS2 |
|---|
Physical Specifications
| Max Capacity | 12 Fibers, 6 SC Duplex APC Ports |
|---|
Inner Jacket
| Inner Jacket | Inner Jacket |
|---|
Mechanical Characteristics
| Front Connection | Static |
|---|
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C To 60°C |
|---|---|
| Storage Temperature Range | -10°C To 60°C |
Product Material
Materials
| Description | Material | Color | Type |
|---|---|---|---|
| Adapter Sleve | Zirconia-Ceramic | ||
| Front Connector Body | Plastic - UL94V-0 | Green/APC | SC-Duplex/APC |
| Frame | Plastic - UL94V-0 | Black | |
| Frame Brace Support | Plastic - UL94V-0 | Black |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Included Parts | Dust Caps |
|---|---|
| Related Parts | FX ECX Panels, FX Pigtails, FX Brilliance |
Product Notes
| Packaging | Individually packaged in a plastic shell, Shipped in cardboard box (12/box) |
|---|---|
| Notes | For additional information about this product, please contact our Technical Support group ( [email protected] ) or your local sales representative. |
History
| Update and Revision | Revision Number: 0.250 Revision Date: 10-23-2025 |
|---|
