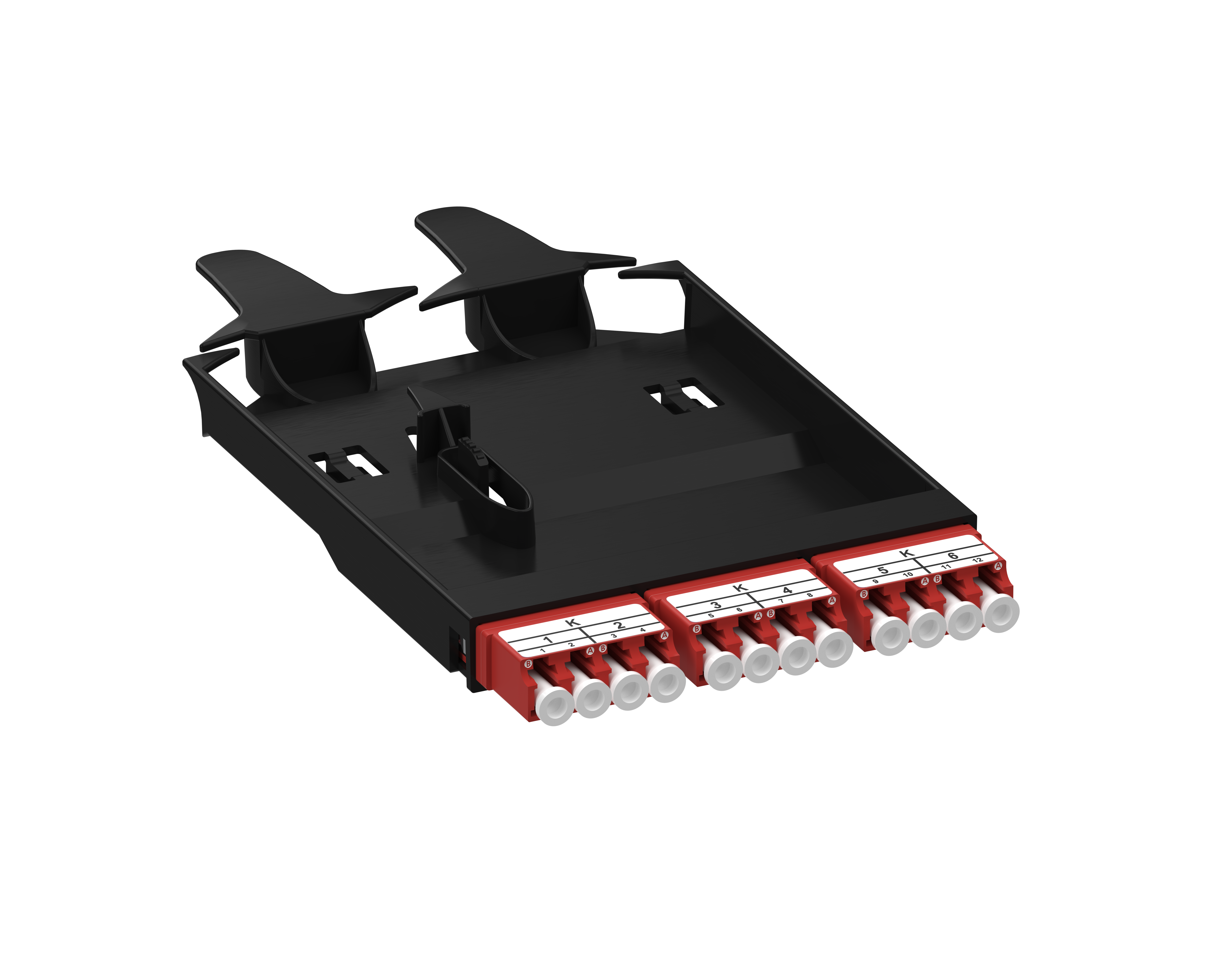

FX DCX FRAME, OS2, 06 PORTS, LC KEYED DUPLEX
FX DCX FRAME, OS2, 06 PORTS, LC KEYED DUPLEX, VARYING ADAPTERS
- Availability
- Global
- Status
- Active
- Orderable items
- 12
Part numbers
FFSD06LKx is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Connector Type | Order |
|---|---|---|
| FFSD06LKA | LC Keyed Duplex Aqua | Order online |
| FFSD06LKB | LC Keyed Duplex Blue | Order online |
| FFSD06LKG | LC Keyed Duplex Green | Order online |
| FFSD06LKM | LC Keyed Duplex Brown | Order online |
| FFSD06LKN | LC Keyed Duplex Black | Order online |
| FFSD06LKO | LC Keyed Duplex Orange | Order online |
| FFSD06LKP | LC Keyed Duplex Rose | Order online |
| FFSD06LKR | LC Keyed Duplex Red | Order online |
| FFSD06LKS | LC Keyed Duplex Gray | Order online |
| FFSD06LKV | LC Keyed Duplex Violet | Order online |
| FFSD06LKW | LC Keyed Duplex White | Order online |
| FFSD06LKY | LC Keyed Duplex Yellow | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | Optical Distribution Frame, Data Centers, Central Equipment Room |
Construction
| Overall Height | 0.448 |
|---|---|
| Overall Width | 3.4 in |
| Overall Depth | 5.7 in |
Inner Jacket
| Inner Jacket | Inner Jacket |
|---|
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C To 60°C |
|---|---|
| Storage Temperature Range | -10°C To 60°C |
Product Material
Materials
| Description | Material | Color |
|---|---|---|
| Frame | Plastic - UL94V-0 | Black |
| Front Connector Body | Plastic - UL94V-0 | Follow Variant table |
Fiber Connector Performance
| Max. Insertion Loss | 0.25 dB |
|---|---|
| Min. Return Loss | -30 dB |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Related Parts | DCX Frame Module & Patch Pannel |
|---|
Product Notes
| Packaging | Individually packaged in a plastic shell, Shipped in cardboard box |
|---|
History
| Update and Revision | Revision Number: 0.11 Revision Date: 10-23-2025 |
|---|
