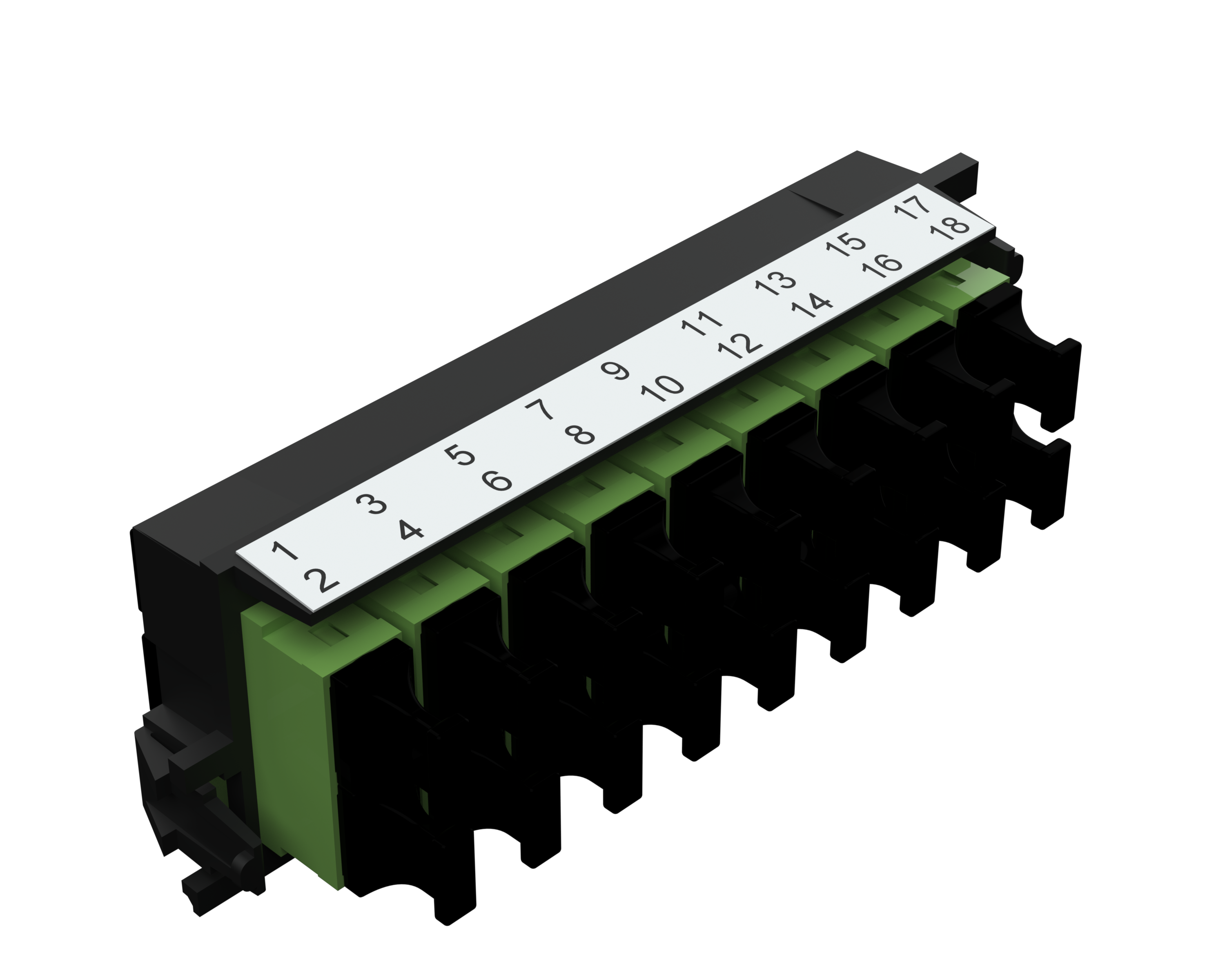

FX UHD Frame OM3 18 Ports
FX UHD FRAME, OM3, 18 PORTS, MPO KEY UP/KEY DOWN, AQUA ADAPTERS
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
FF3H18MP is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Connector Type | Port Count | Order |
|---|---|---|---|---|
| FF3H18MP | Aqua | MPO Up/Down | 18 Port | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
Construction
| Weight | 0.500 lbs |
|---|---|
| Overall Height | 1.5 in |
| Overall Width | 4.460 in |
| Overall Length | 2.200 in |
Fiber Cable Construction
| Fiber Type | OM3 |
|---|
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C To 60°C |
|---|---|
| Storage Temperature Range | -10°C To 60°C |
Product Material
Materials
| Description | Material | Color | Type |
|---|---|---|---|
| Frame | Plastic - UL94V-0 | Black | |
| Front Connector Body | Plastic - UL94V-0 | Aqua | MPO Adapter |
| Adapter Sleeve | Zirconia-Ceramic |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Related Parts | FX ULTRA Rack-Mount and Wall-Mount Patch Panels |
|---|
Product Notes
| Packaging | Individually packaged in a plastic bag, Shipped in cardboard box (60/box) |
|---|---|
| Notes | For additional information please refer to product buletin PB500, or visit our web site at http://www.belden.com |
History
| Update and Revision | Revision Number: 0.27 Revision Date: 10-23-2025 |
|---|
