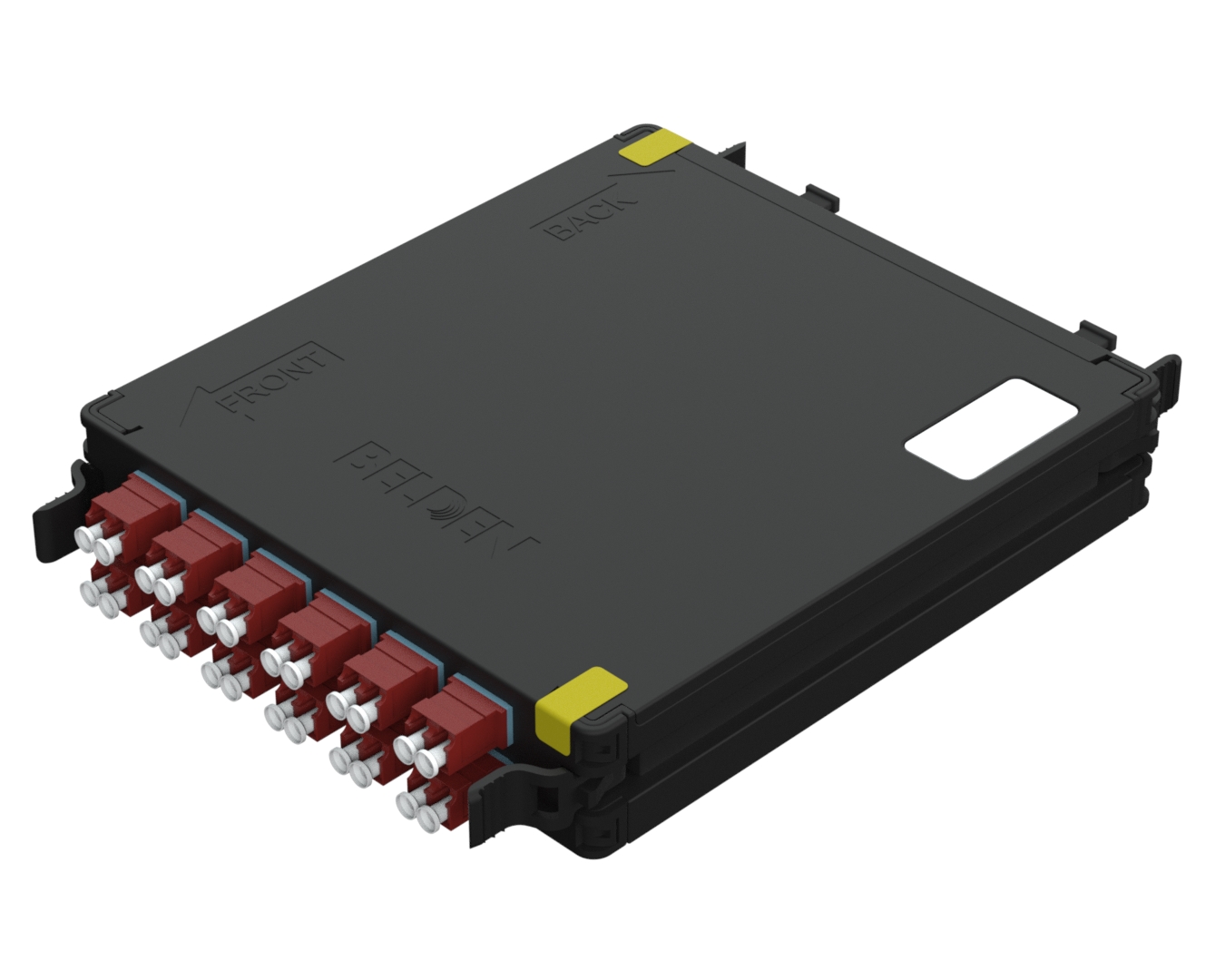

FX ECX CASS OS2 12P MPO12(F) LC KEYED DUPLEX
FX ECX CASSETTE, OS2, 12 PORTS, MPO-12 (FEMALE) TYPE-A, LC KEYED DUPLEX RED ADAPTER
- Availability
- Global
- Status
- Active
- Orderable items
- 12
Part numbers
FCSX12LKMFAx is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Connector Type | Port Count | Order |
|---|---|---|---|
| FCSX12LKMFAA | LC Keyed Aqua | 12 Port | Order online |
| FCSX12LKMFAB | LC Keyed Blue | 12 Port | Order online |
| FCSX12LKMFAG | LC Keyed Green | 12 Port | Order online |
| FCSX12LKMFAM | LC Keyed Brown | 12 Port | Order online |
| FCSX12LKMFAN | LC Keyed Black | 12 Port | Order online |
| FCSX12LKMFAO | LC Keyed Orange | 12 Port | Order online |
| FCSX12LKMFAP | LC Keyed Rose | 12 Port | Order online |
| FCSX12LKMFAR | LC Keyed Red | 12 Port | Order online |
| FCSX12LKMFAS | LC Keyed Gray | 12 Port | Order online |
| FCSX12LKMFAV | LC Keyed Violet | 12 Port | Order online |
| FCSX12LKMFAW | LC Keyed White | 12 Port | Order online |
| FCSX12LKMFAY | LC Keyed Yellow | 12 Port | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
Construction
| Overall Height | 1.290 in |
|---|---|
| Overall Width | 6.340 in |
| Overall Length | 8.790 in |
Fiber Cable Construction
| Fiber Type | OS2 |
|---|
Physical Specifications
| Max Capacity | 24 Fibers, 12 LC Duplex Ports |
|---|
Mechanical Characteristics
| Front Connection | Static |
|---|
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C To 60°C |
|---|---|
| Storage Temperature Range | -10°C To 60°C |
Product Material
Materials
| Description | Material | Color | Type |
|---|---|---|---|
| Front Connector/Adapter | Plastic - UL94V-0 | Follow Variant table | Keyed LC Duplex Red |
| Rear Connector/Adapter | Plastic - UL94V-0 | Green | MPO Female |
| Adapter | |||
| Cassette Assembly | PC/ABS | Black |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Related Parts | FX ECX Patch-pannels/ Wallmount Housings, ECX Splice/Splitter Cassettes, Patch Cords |
|---|
Product Notes
| Packaging | Individually packaged in a plastic shell, Shipped in cardboard box (12/box) |
|---|---|
| Notes | For more information, please refer to our website at http://www.belden.com |
History
| Update and Revision | Revision Number: 0.4 Revision Date: 10-23-2025 |
|---|
