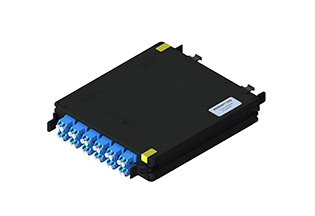

FX ECX CASS OS2 12P MPO12(F) LC_DX TYPE-A BL_ADP
FX ECX CASSETTE, OS2, 12 PORTS, MPO-12 (FEMALE), LC DUPLEX, TYPE-A, BLUE ADAPTERS
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
|---|
Construction
| Weight | 0.500 lbs |
|---|---|
| Overall Height | 1.290 in. |
| Overall Width | 6.340 in |
| Overall Depth | 8.696 in |
Physical Specifications
| Max Capacity | 24 Fibers |
|---|
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C to +60°C |
|---|---|
| Storage Temperature Range | -10°C to +60°C |
Product Material
Materials
| Description | Material | Color | Type |
|---|---|---|---|
| Front Connector/Adapter | Plastic - UL94V-0 | Blue | LC Duplex |
| Rear Connector/Adapter | Plastic - UL94V-0 | Green | MPO Female |
| Cassette Assembly | PC/ABS | Black |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Related Parts | FX ECX Patch Panels, Patch Cords, MPO Trunks |
|---|
Product Notes
| Packaging | Individually packaged in a plastic shell, Shipped in cardboard box |
|---|---|
| Notes | For more information, please refer to our website at http://www.belden.com |
History
| Update and Revision | Revision Number: 0.91 Revision Date: 10-23-2025 |
|---|
