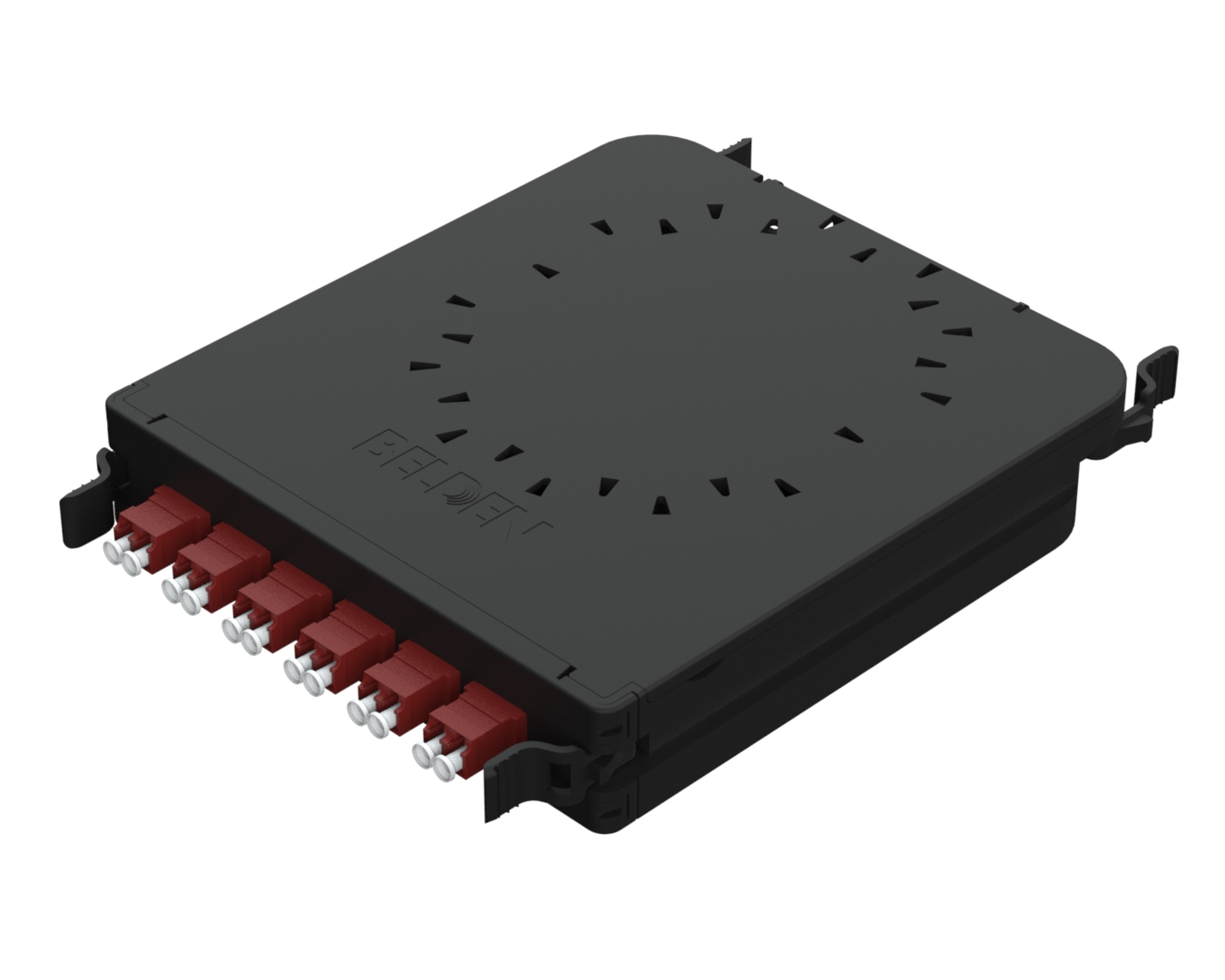

FX ECX CASS OS2 06P W/250 PIGTAIL LC KEYED DUPLEX
FX ECX CASSETTE, OS2, 06 PORTS, WITH 250um COLOR CODED PIGTAILS, LC KEYED DUPLEX, RED ADAPTERS
- Availability
- Global
- Status
- Active
- Orderable items
- 12
Part numbers
FCSX06LKFPNx is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Connector Type | Port Count | Order |
|---|---|---|---|
| FCSX06LKFPNA | LC Keyed Aqua | 6 Port | Order online |
| FCSX06LKFPNB | LC Keyed Blue | 6 Port | Order online |
| FCSX06LKFPNG | LC Keyed Green | 6 Port | Order online |
| FCSX06LKFPNM | LC Keyed Brown | 6 Port | Order online |
| FCSX06LKFPNN | LC Keyed Black | 6 Port | Order online |
| FCSX06LKFPNO | LC Keyed Orange | 6 Port | Order online |
| FCSX06LKFPNP | LC Keyed Rose | 6 Port | Order online |
| FCSX06LKFPNR | LC Keyed Red | 6 Port | Order online |
| FCSX06LKFPNS | LC Keyed Gray | 6 Port | Order online |
| FCSX06LKFPNV | LC Keyed Violet | 6 Port | Order online |
| FCSX06LKFPNW | LC Keyed White | 6 Port | Order online |
| FCSX06LKFPNY | LC Keyed Yellow | 6 Port | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
Construction
| Overall Height | 1.300 in |
|---|---|
| Overall Width | 6.340 in |
| Overall Length | 8.740 in |
Fiber Cable Construction
| Fiber Type | OS2 |
|---|
Physical Specifications
| Max Capacity | 12 Fibers, 6 LC Duplex Ports |
|---|
Mechanical Characteristics
| Front Connection | Static |
|---|
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C To 60°C |
|---|---|
| Storage Temperature Range | -10°C To 60°C |
Product Material
Materials
| Description | Material | Color |
|---|---|---|
| Adapter Sleeve | Zirconia-Ceramic | |
| Front Connector Body | Plastic - UL94V-0 | Follow Variant table |
| Cassette Assembly | Plastic - UL94V-0 | Black |
Fiber Connector Performance
| Max. Insertion Loss | 0.25 dB |
|---|---|
| Min. Return Loss | -55 dB |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Included Parts | 250um pigtails, splice sleeves and cable ties |
|---|---|
| Related Parts | FX ECX Patch-pannels/ Wallmount Housings, ECX Splice/Splitter Cassettes, Patch Cords |
Product Notes
| Packaging | Individually packaged in a plastic shell, shipped in cardboard box (12/box) |
|---|---|
| Notes | Splice Holder is included. Splice holder is compatible with Belden Splice Sleeves part numbers (Post-Shrink Diameter): FXFUHS900AB25(2.5mm), FXFUHS9T2CB25 (2.0mm), FXFUHS250DB25 (1.5mm) and FXFUHSRIBEB12(Oval 4.1mmX4.6mm). |
History
| Update and Revision | Revision Number: 0.4 Revision Date: 10-23-2025 |
|---|
