FX ECX CASS OS2 03P SPLICING, SC_DX

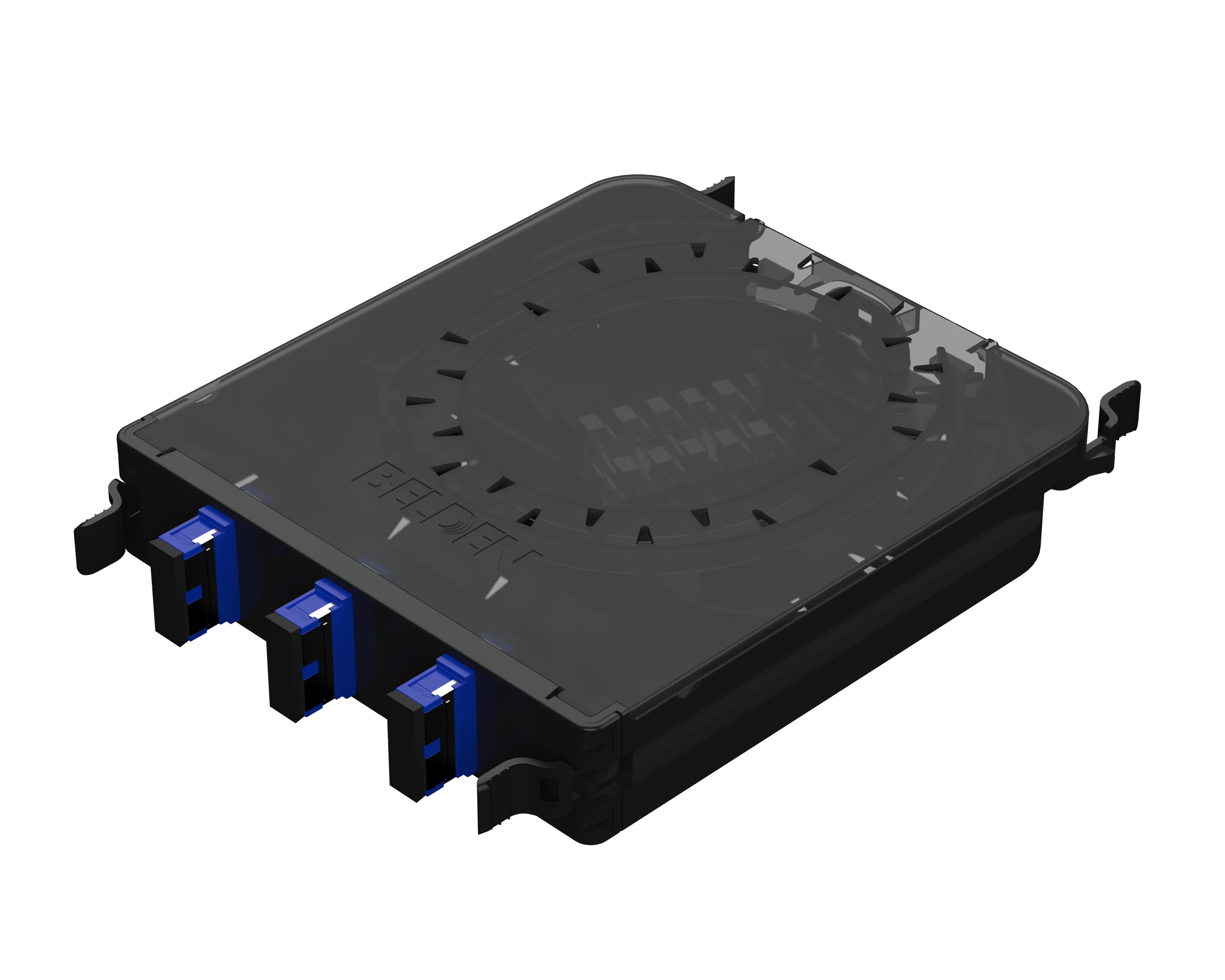

FX ECX CASSETTE, OS2, 03 PORTS, SPLICING, SC DUPLEX, BLUE ADAPTERS
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
Construction
| Weight | 0.584 lbs. |
|---|---|
| Overall Height | 1.300 in |
| Overall Width | 6.340 in |
| Overall Length | 8.740 in |
Fiber Cable Construction
| Fiber Type | OS2 |
|---|
Physical Specifications
| Max Capacity | 6 Fibers |
|---|
Inner Jacket
| Inner Jacket | Inner Jacket |
|---|
Mechanical Characteristics
| Front Connection | Static |
|---|
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C To 60°C |
|---|---|
| Storage Temperature Range | -10°C To 60°C |
Product Material
Materials
| Description | Material | Color | Type |
|---|---|---|---|
| Adapter Sleeve | Zirconia-Ceramic | ||
| Front Connector Body | Plastic - UL94V-0 | Blue | SC Duplex |
| Cassette Assembly | Plastic - UL94V-0 | Black |
Fiber Connector Performance
| Connector Type | SC Duplex |
|---|---|
| Max. Insertion Loss | 0.25 dB |
| Min. Return Loss | -55 dB |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Included Parts | Rubber strip, cable ties |
|---|---|
| Related Parts | FX ECX Panels |
Product Notes
| Packaging | Individually packaged in a plastic shell, shipped in cardboard box (12/box) |
|---|---|
| Notes | Splice holder is included. |
History
| Update and Revision | Revision Number: 0.12 Revision Date: 03-30-2026 |
|---|
