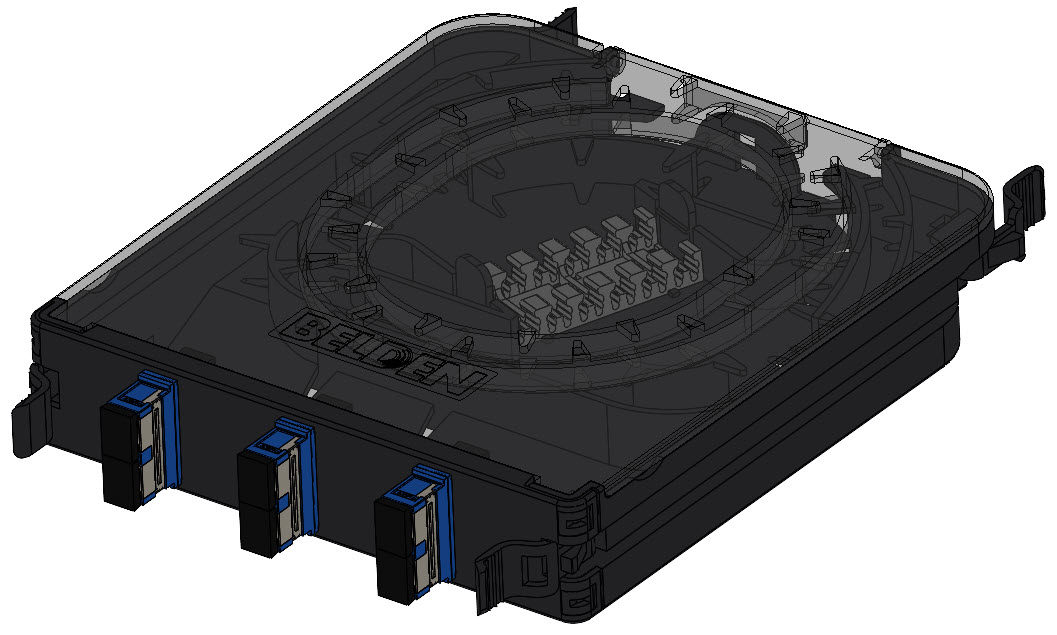

FX ECX CASS OS2 3P W/250-PT SC_DX BL_ADP
FX ECX CASSETTE, OS2, 3 PORTS, WITH 250um PIGTAILS, SC DUPLEX, BLUE ADAPTERS
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
Construction
| Weight | 0.280 lbs. |
|---|---|
| Overall Height | 1.300 in |
| Overall Width | 6.340 in |
| Overall Length | 8.740 in |
Fiber Cable Construction
| Fiber Type | OS2 |
|---|
Physical Specifications
| Max Capacity | 6 Fibers, 3 SC Duplex Ports |
|---|
Mechanical Characteristics
| Front Connection | Static |
|---|
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C To 60°C |
|---|---|
| Storage Temperature Range | -10°C To 60°C |
Product Material
Materials
| Description | Material | Color |
|---|---|---|
| Adapter Sleeve | Zirconia-Ceramic | |
| Front Connector Body | Plastic - UL94V-0 | Blue |
| Cassette Assembly | Plastic - UL94V-0 | Black |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Included Parts | 250um pigtails, splice sleeves, and cable ties |
|---|---|
| Related Parts | FX ECX Panels, Belden Splice Sleeves (see notes) |
Product Notes
| Packaging | Individually packaged in a plastic shell, shipped in cardboard box (12/box) |
|---|---|
| Notes | Splice holder is included. Splice holder compatible with Belden splice sleeves part numbers (Post-Shrink Diameter): FXFUHS900AB25(2.5mm), FXFUHS9T2CB25 (2.0mm), FXFUHS250DB25 (1.5mm), and FXFUHSRIBEB12 (oval 4.1mm x 4.6mm). For additional information about this product, please contact our Technical Support group ( [email protected] ) or your local sales representative. |
History
| Update and Revision | Revision Number: 0.8 Revision Date: 10-23-2025 |
|---|
