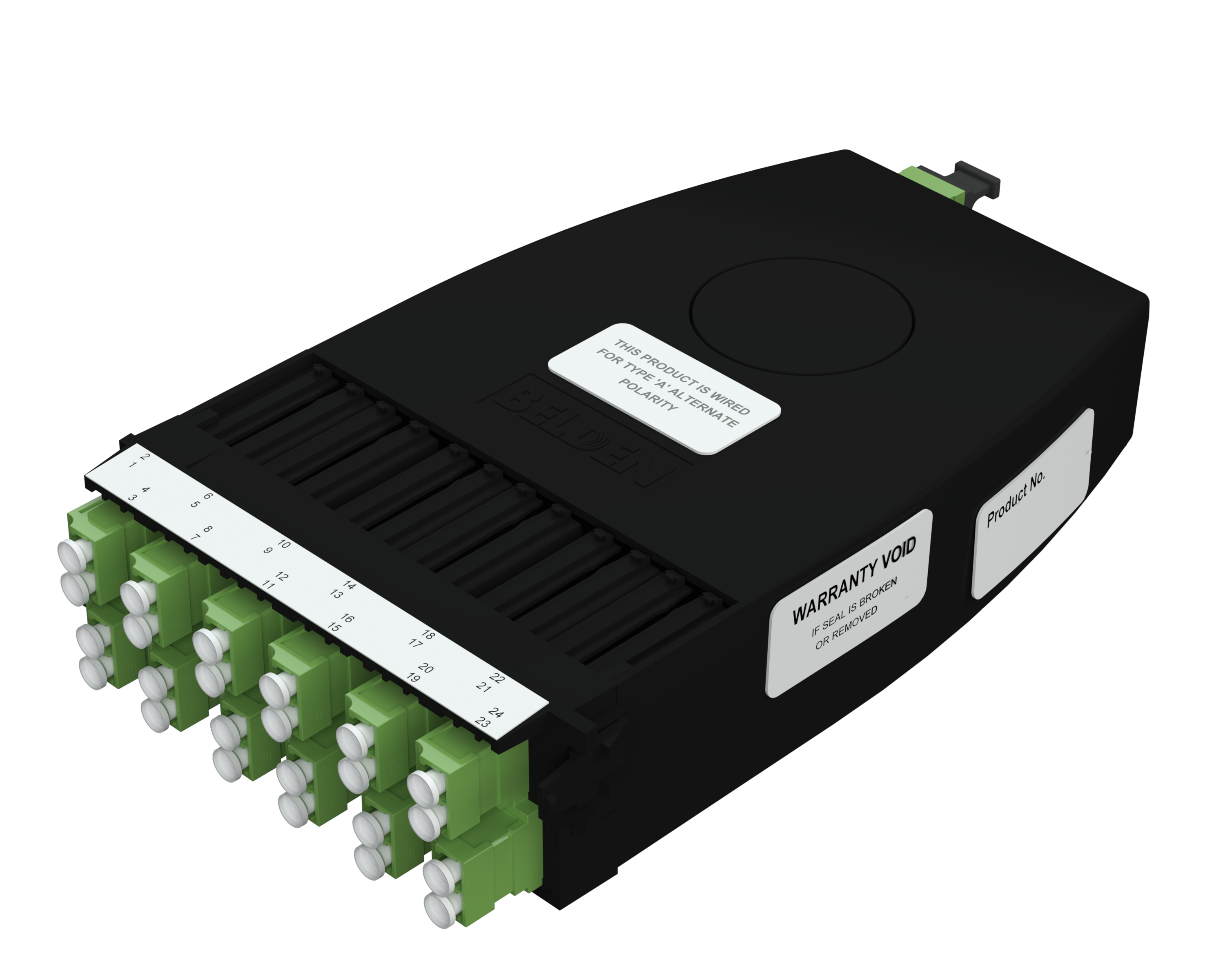

FX Ultra Cassette OM5 12P LC DUPLEX MPO-12(F) ALT
FX ULTRA CASSETTE, OM5, 12 PORTS, MPO-12 (FEMALE), LC DUPLEX, TYPE-A ALT, LIME GREEN ADAPTERS
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | FiberExpress Ultra Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
Construction
| Weight | 0.657 |
|---|---|
| Overall Height | 1.5 in |
| Overall Width | 4.46 in |
| Overall Length | 7.91 in |
Fiber Cable Construction
| Fiber Type | OM5 |
|---|
Physical Specifications
| Max Capacity | 24 Fibers, 12 LC Duplex Ports |
|---|
Inner Jacket
| Inner Jacket | Inner Jacket |
|---|
Mechanical Characteristics
| Front Connection | 1 Inch Pullout |
|---|
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C To 60°C |
|---|---|
| Storage Temperature Range | -10°C To 60°C |
Product Material
| Polarity Identification | Type-A ALT |
|---|
Materials
| Description | Material | Color | Type |
|---|---|---|---|
| Rear Connector Body | Plastic - UL94V-0 | Lime Green | MPO Female |
| Adapter Sleeve | Zirconia-Ceramic | ||
| Front Connector Body | Plastic - UL94V-0 | Lime Green | LC Duplex |
| Cassette Assembly | Plastic - UL94V-0 | Black |
Fiber Connector Performance
| Description | Connector Type | Max. Insertion Loss | Min. Return Loss |
|---|---|---|---|
| Patch Side | LC Duplex | 0.15 dB | -30 dB |
| Trunk Side | MPO12(F) | 0.2 dB | -30 dB |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Related Parts | FX UHD & FXU Patch Panels, FX MPO Trunks |
|---|
Product Notes
| Packaging | Individually packaged in a plastic shell, Shipped in cardboard box (14/box) |
|---|---|
| Notes | Please refer to the label on the back of the cassette for appropriate front port number configuration |
History
| Update and Revision | Revision Number: 0.97 Revision Date: 03-16-2026 |
|---|
