FX ECX CASS OM4 06P SPLICING, LC_DX

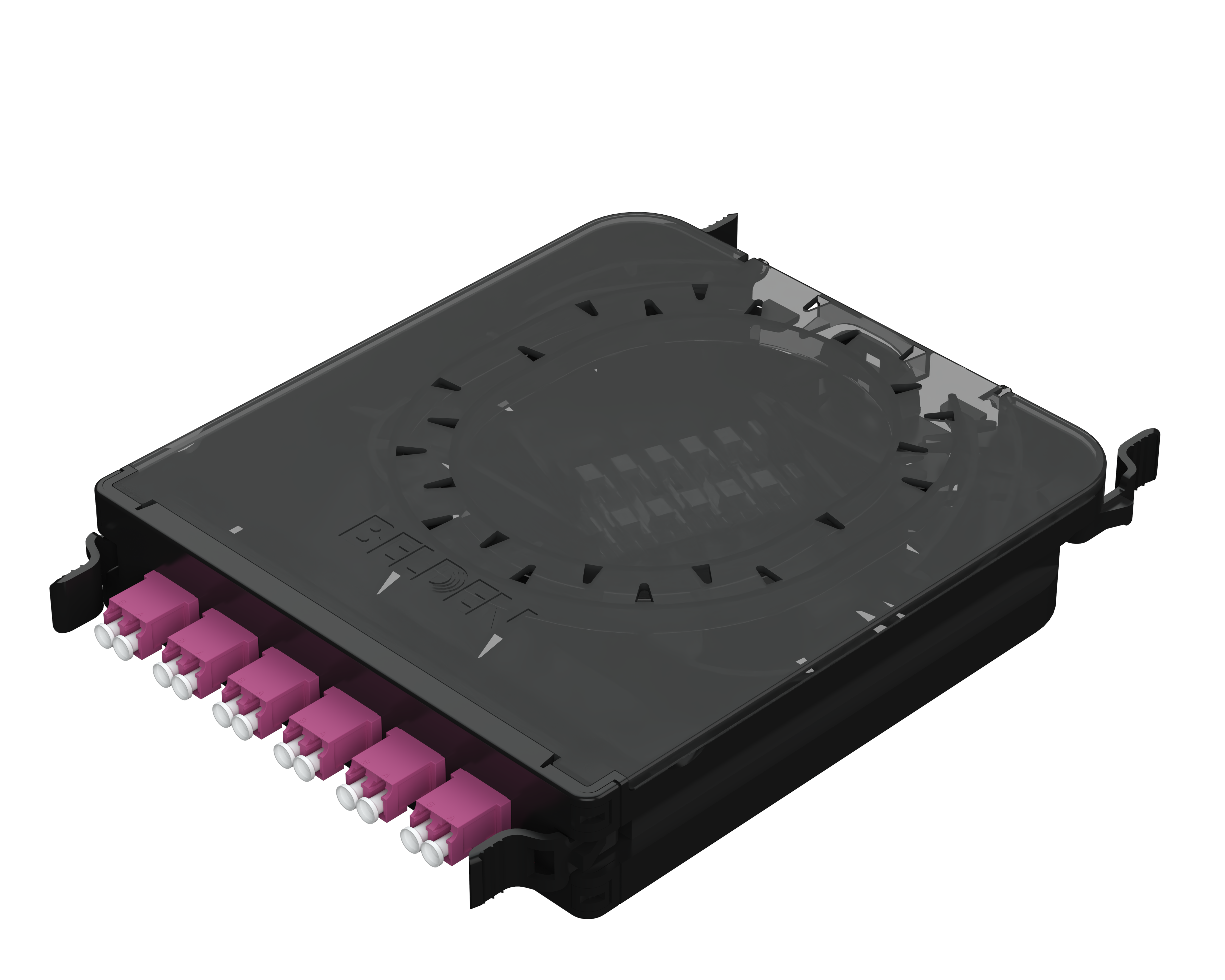

FX ECX CASSETTE, OM4, 06 PORTS, SPLICING, LC DUPLEX, ERIKA VIOLET ADAPTERS
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
FC4X06LDFS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Connector Type | Order |
|---|---|---|---|
| FC4X06LDFS | Erika Violet | LC Duplex | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
Construction
| Weight | 0.584 lbs. |
|---|---|
| Overall Height | 1.300 in |
| Overall Width | 6.340 in |
| Overall Length | 8.740 in |
Fiber Cable Construction
| Fiber Type | OM4 |
|---|
Physical Specifications
| Max Capacity | 12 Fibers |
|---|
Inner Jacket
| Inner Jacket | Inner Jacket |
|---|
Mechanical Characteristics
| Front Connection | Static |
|---|
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C To 60°C |
|---|---|
| Storage Temperature Range | -10°C To 60°C |
Product Material
Materials
| Description | Material | Color | Type |
|---|---|---|---|
| Adapter Sleeve | Zirconia-Ceramic | ||
| Front Connector Body | Plastic - UL94V-0 | Erika Violet | LC Duplex |
| Cassette Assembly | Plastic - UL94V-0 | Black |
Fiber Connector Performance
| Connector Type | LC Duplex |
|---|---|
| Max. Insertion Loss | 0.15 dB |
| Min. Return Loss | -25 dB |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Included Parts | Rubber strip, cable ties |
|---|---|
| Related Parts | FX ECX Panels |
Product Notes
| Packaging | Individually packaged in a plastic shell, shipped in cardboard box (12/box) |
|---|---|
| Notes | Splice holder is included. |
History
| Update and Revision | Revision Number: 0.192 Revision Date: 03-30-2026 |
|---|
