Product Number: FC4H12MPFS

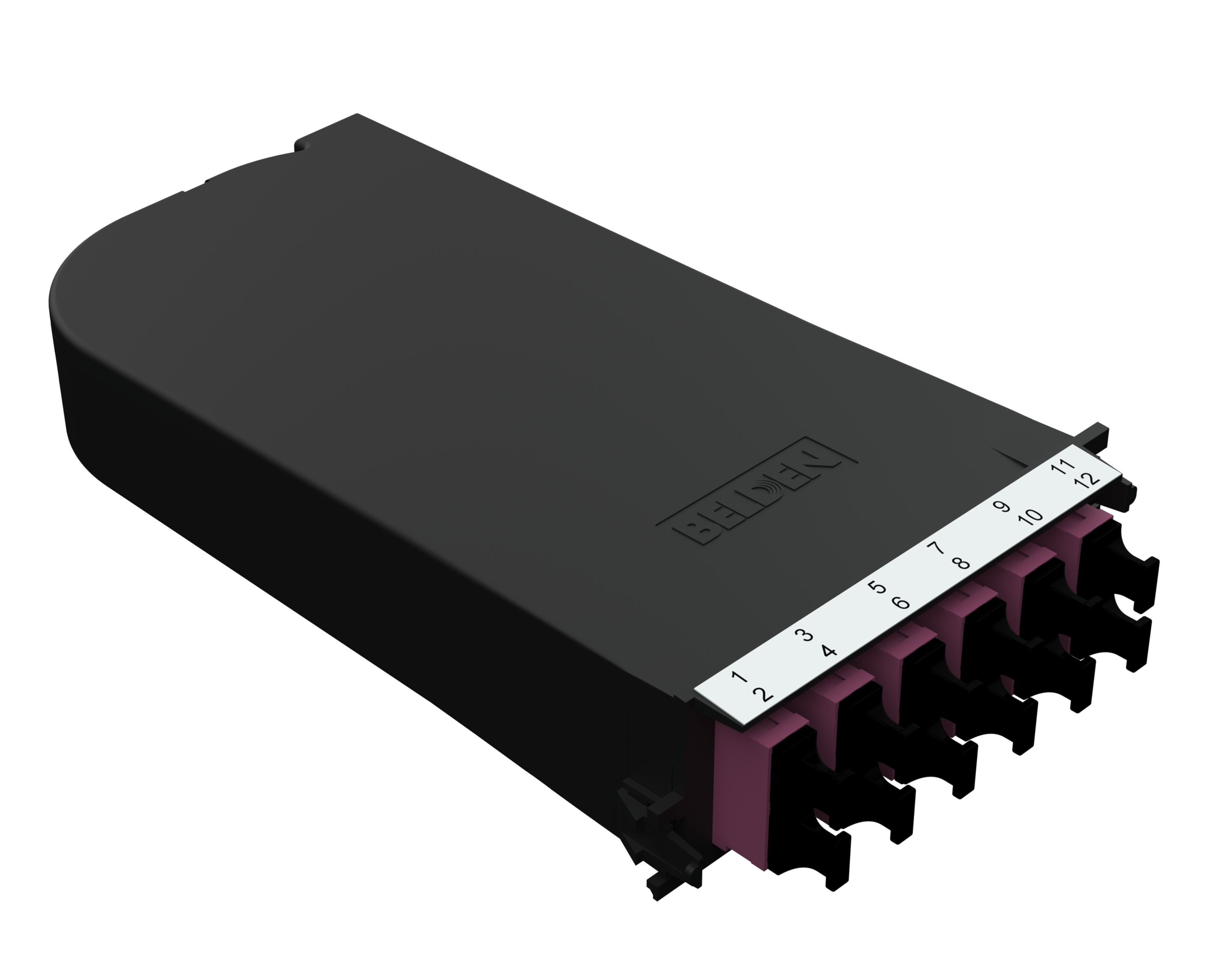

FX UHD Splice Cassette OM3 12 Ports

FX UHD CASSETTE, OM4, 12 PORTS, SPLICING, MPO KEY UP/KEY DOWN, ERIKA VIOLET ADAPTERS

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

FC4H12MPFS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Connector Type	Order
FC4H12MPFS	Erika Violet	MPO Up/Down	Order online

Specifications

Product Overview

Environmental Space	Indoor
Suitable Applications	FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers

Construction

Weight	0.500 lbs
Overall Height	1.5 in
Overall Width	4.5 in
Overall Length	9.08 in

Fiber Cable Construction

Fiber Type	OM4

Physical Specifications

Max Capacity	144 Fibers, 12 MPO Ports

Mechanical Characteristics

Front Connection	Static

Mechanical Tests

Description

Temperature Range

Operating Temperature Range	-10°C To 60°C
Storage Temperature Range	-10°C To 60°C

Product Material

Materials

Description	Material	Color	Type
Adapter Sleeve	Zirconia-Ceramic
Front Connector Body	Plastic - UL94V-0	Erika Violet	MPO Adapter
Cassette Assembly	Plastic - UL94V-0	Black

Fiber Connector Performance

Connector Type	MPO Up/Down
Max. Insertion Loss	0.2 dB
Min. Return Loss	-30 dB

Standards

MII Order #39 (China RoHS)	EUP 50

Related Part Numbers

Related Parts	FX UHD & FXU Patch Panels, FX MPO Trunks

Product Notes

Packaging

Individually packaged in a plastic shell, Shipped in cardboard box (14/box)

Notes

Splice holders are included (total of 24 splices). 3 variants of splice holders are supplied with the splice cassette, they can accommodate for the 900-900μm, the 900-250μm, the 250-250μm, and the 12F RIBBON splice protectors. Pigtails are not included, they need to be ordered separately. For additional information about this product, please contact our Technical Support group ( [email protected] ) or your local sales representative.
