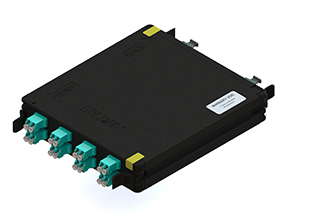

FX ECX CASS OM3 08P MPO12(F)/8F LC_DX SR4 AQ_ADP
FX ECX CASSETTE, OM3, 08 PORTS, MPO-12 (FEMALE) BASE 8, LC DUPLEX, 40G/100G SR4, AQUA ADAPTERS
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
|---|
Construction
| Weight | 0.500 lbs |
|---|---|
| Overall Height | 1.290 in. |
| Overall Width | 6.340 in |
| Overall Depth | 8.696 in |
Physical Specifications
| Max Capacity | 16 Fibers |
|---|
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C to +60°C |
|---|---|
| Storage Temperature Range | -10°C to +60°C |
Product Material
Materials
| Description | Material | Color | Type |
|---|---|---|---|
| Front Connector/Adapter | Plastic - UL94V-0 | Aqua | LC Duplex |
| Rear Connector/Adapter | Plastic - UL94V-0 | Aqua | MPO Female |
| Cassette Assembly | PC/ABS | Black |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Related Parts | FX ECX Patch Panels, Patch Cords, MPO Trunks |
|---|
Product Notes
| Packaging | Individually packaged in a plastic shell, Shipped in cardboard box |
|---|---|
| Notes | For more information, please refer to our website at http://www.belden.com |
History
| Update and Revision | Revision Number: 0.11 Revision Date: 10-23-2025 |
|---|
