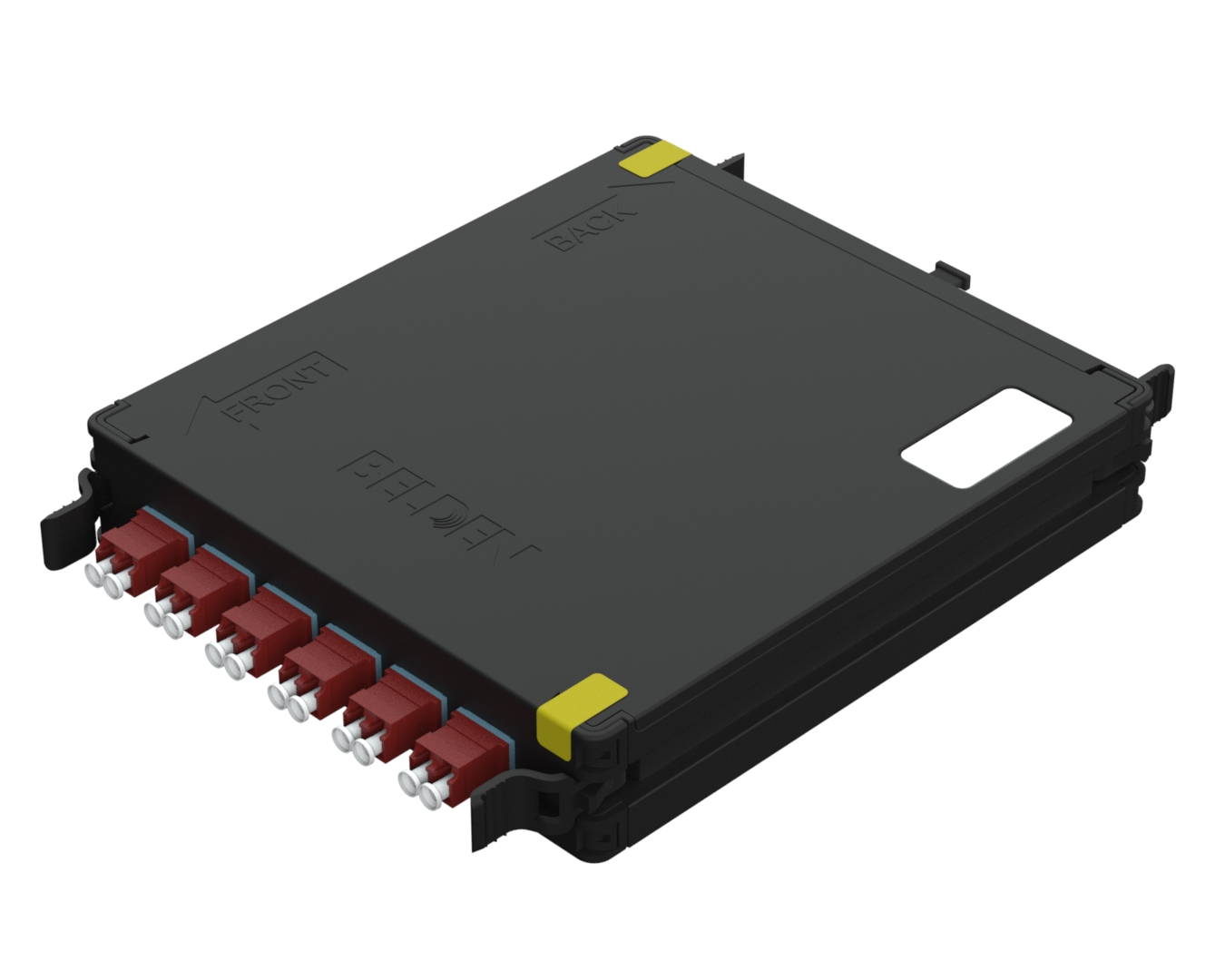

FX ECX CASS OM3 06P MASS FUSION PIGTAIL LC KEYED DUPLEX
FX ECX CASSETTE, OM3, 06 PORTS, WITH 250um MASS FUSION RIBBON PIGTAILS, LC KEYED DUPLEX, ADAPTERS WITH VARIOUS KEY COLORS AVAILABLE
- Availability
- Global
- Status
- Active
- Orderable items
- 12
Part numbers
FC3X06LKFMNx is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Connector Type | Port Count | Order |
|---|---|---|---|
| FC3X06LKFMNA | LC Keyed Aqua | 6 Port | Order online |
| FC3X06LKFMNB | LC Keyed Blue | 6 Port | Order online |
| FC3X06LKFMNG | LC Keyed Green | 6 Port | Order online |
| FC3X06LKFMNM | LC Keyed Brown | 6 Port | Order online |
| FC3X06LKFMNN | LC Keyed Black | 6 Port | Order online |
| FC3X06LKFMNO | LC Keyed Orange | 6 Port | Order online |
| FC3X06LKFMNP | LC Keyed Rose | 6 Port | Order online |
| FC3X06LKFMNR | LC Keyed Red | 6 Port | Order online |
| FC3X06LKFMNS | LC Keyed Gray | 6 Port | Order online |
| FC3X06LKFMNV | LC Keyed Violet | 6 Port | Order online |
| FC3X06LKFMNW | LC Keyed White | 6 Port | Order online |
| FC3X06LKFMNY | LC Keyed Yellow | 6 Port | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
Construction
| Overall Height | 1.300 in |
|---|---|
| Overall Width | 6.340 in |
| Overall Length | 8.740 in |
Fiber Cable Construction
| Fiber Type | OM3 |
|---|
Physical Specifications
| Max Capacity | 12 Fibers, 6 LC Duplex Ports |
|---|
Mechanical Characteristics
| Front Connection | Static |
|---|
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C To 60°C |
|---|---|
| Storage Temperature Range | -10°C To 60°C |
Product Material
Materials
| Description | Material | Color |
|---|---|---|
| Adapter Sleeve | Zirconia-Ceramic | |
| Front Connector Body | Plastic - UL94V-0 | See Table Below |
| Cassette Assembly | Plastic - UL94V-0 | Black |
Fiber Connector Performance
| Max. Insertion Loss | 0.25 dB |
|---|---|
| Min. Return Loss | -30 dB |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Included Parts | 250um pigtails, splice sleeves and cable ties |
|---|---|
| Related Parts | FX ECX Patch-pannels/ Wallmount Housings, ECX Splice/Splitter Cassettes, Patch Cords |
Product Notes
| Packaging | Individually packaged in a plastic shell, shipped in cardboard box (12/box) |
|---|---|
| Notes | Splice Holder is included. Splice holder is compatible with Belden Splice Sleeves part numbers (Post-Shrink Diameter): FXFUHS900AB25(2.5mm), FXFUHS9T2CB25 (2.0mm), FXFUHS250DB25 (1.5mm) and FXFUHSRIBEB12(Oval 4.1mmX4.6mm). |
History
| Update and Revision | Revision Number: 0.4 Revision Date: 10-23-2025 |
|---|
