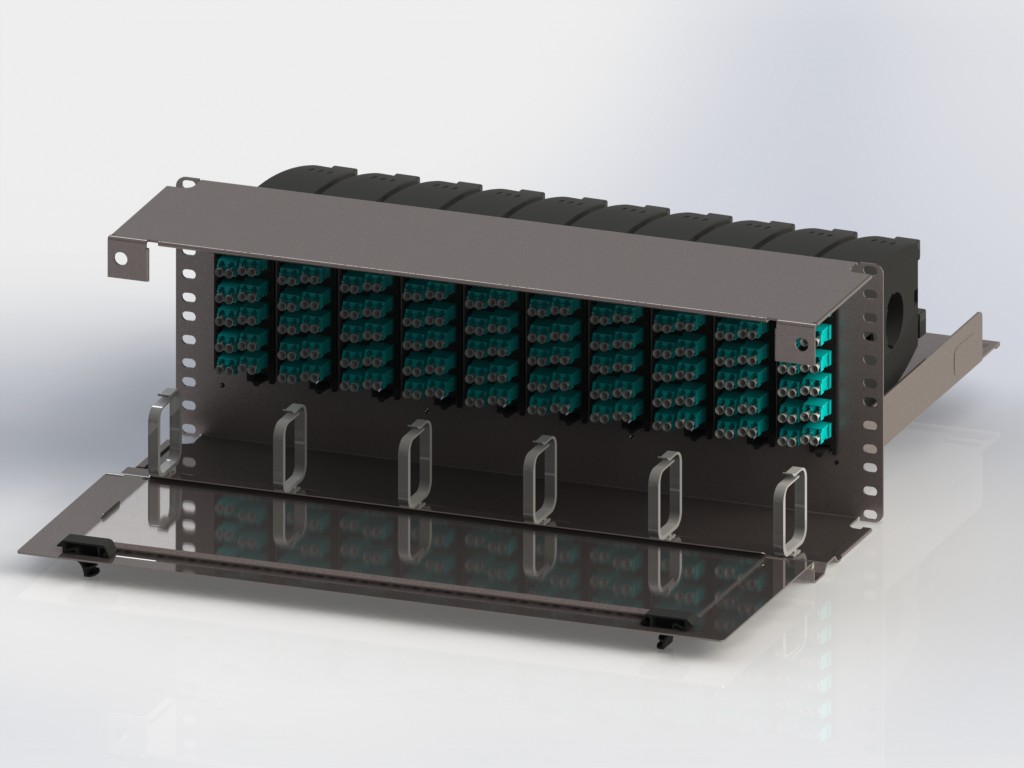

FX Ultra HD Standard Shelf 4U
FX Ultra HD 4U Standard Shelf, 10 slots, Empty. Available in Titanium or Black finish.
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
FX UHD Standard Shelf 4U is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| AX105675 | Black | 611589153218 | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
Construction
| Weight | 4.531 kg |
|---|---|
| Overall Height | 174.752 m |
| Overall Width | 444.500 mm |
| Overall Depth | 381.000 |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C To +60°C |
|---|---|
| Storage Temperature Range | -40°C To +70°C |
Product Material
Materials
| Description | Material |
|---|---|
| Panel | Steel/Aluminum |
| Door | Aluminum |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Included Parts | Screws (12-24); Screws (10-32); Velcro Straps; Identification Labels |
|---|
Product Notes
| Packaging | Individually packaged in a cardboard box. |
|---|---|
| Notes | For more information, please refer to our web site at http://www.belden.com . Installation Guide: PX105539. |
History
| Update and Revision | Revision Number: 0.91 Revision Date: 02-12-2025 |
|---|
