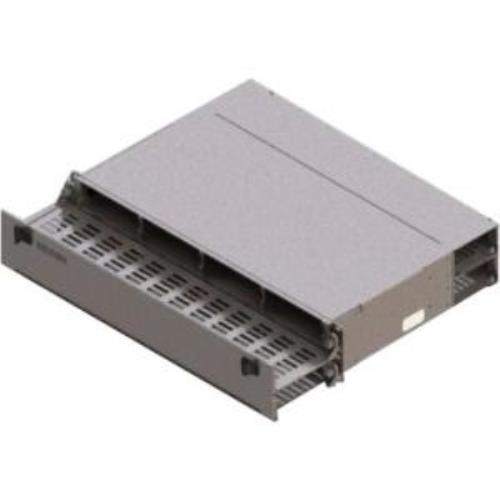

FX UHD Patch Panel Housing 2U
FX UHD Patch Panel Housing 2U, 8 Slots, Empty. Available in Titanium, Signal White, or Black finish
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
Construction
| Weight | 10.14 lbs |
|---|---|
| Overall Height | 3.5 in |
| Overall Width | 19 in |
| Overall Length | 17.54 in |
Mechanical Characteristics
| Front Connection | Static FX UHD / 1 inch Pullout FXU |
|---|
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C To +60°C |
|---|---|
| Storage Temperature Range | -40°C To +70°C |
Product Material
Materials
| Description | Material |
|---|---|
| Panel | Steel/Aluminum |
| Cable Tray Cover | Aluminum |
| Patch Cord Tray | Steel |
| Cable Tray | Steel |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Included Parts | Screws (12-24); Screws (10-32); Cable ties; Kurly locks; Velcro Straps; Mkr Wire Card-Blue; Identification Labels; Installation guide |
|---|---|
| Related Parts | FiberExpress Ultra and Ultra High Density Frames and Cassettes |
Product Notes
| Packaging | Individually packaged in a cardboard box |
|---|---|
| Notes | For more information, please refer to our web site at http://www.belden.com . Installation Guide: PX105678. |
History
| Update and Revision | Revision Number: 0.220 Revision Date: 03-12-2026 |
|---|
