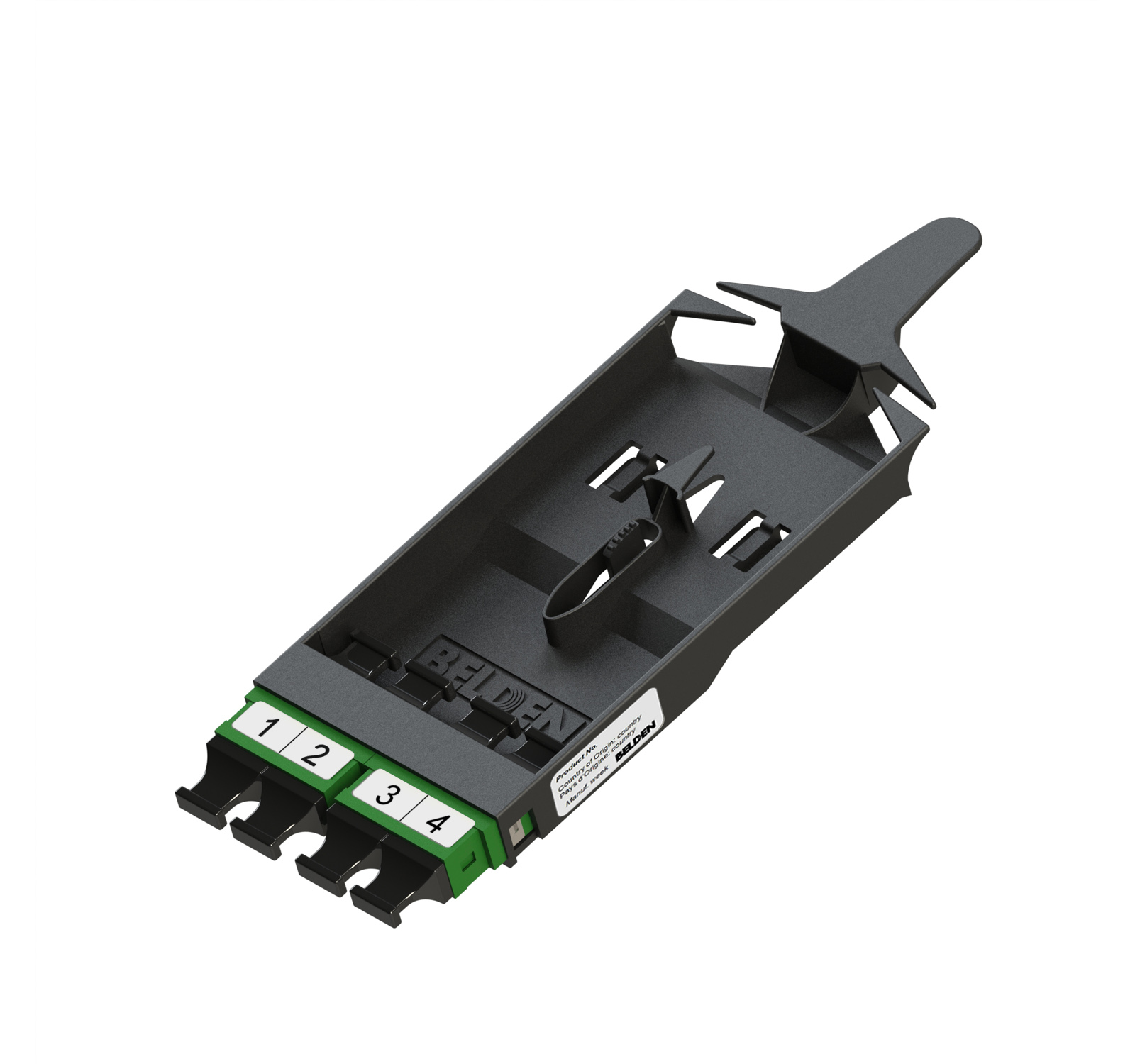

FX DCX FRAME, OS2, 04 PORTS, MPO KEY UP/KEY DOWN
FX DCX FRAME, OS2, 04 PORTS, MPO KEY UP/KEY DOWN, GREEN ADAPTERS
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
FFSD04MP is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Connector Type | Port Count | Fiber Type | Order |
|---|---|---|---|---|---|
| FFSD04MP | Green | MPO Male | 4 Port | OS2 | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | Optical Distribution Frame, Data Centers, Central Equipment Room |
Construction
| Weight | 0.066 lbs |
|---|---|
| Overall Height | 0.448 in |
| Overall Width | 2.260 in |
| Overall Depth | 5.7 in |
Fiber Cable Construction
| Fiber Type | OS2 |
|---|
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C To 60°C |
|---|---|
| Storage Temperature Range | -10°C To 60°C |
Product Material
Materials
| Description | Material | Color |
|---|---|---|
| Frame | Plastic - UL94V-0 | Black |
| Front Connector Body | Plastic - UL94V-0 | Green |
Standards
| MII Order #39 (China RoHS) | EUP 50 |
|---|
Related Part Numbers
| Related Parts | DCX Frame Module & Patch Pannel |
|---|
Product Notes
| Packaging | Individually packaged in a plastic shell, Shipped in cardboard box |
|---|
History
| Update and Revision | Revision Number: 0.39 Revision Date: 10-23-2025 |
|---|
