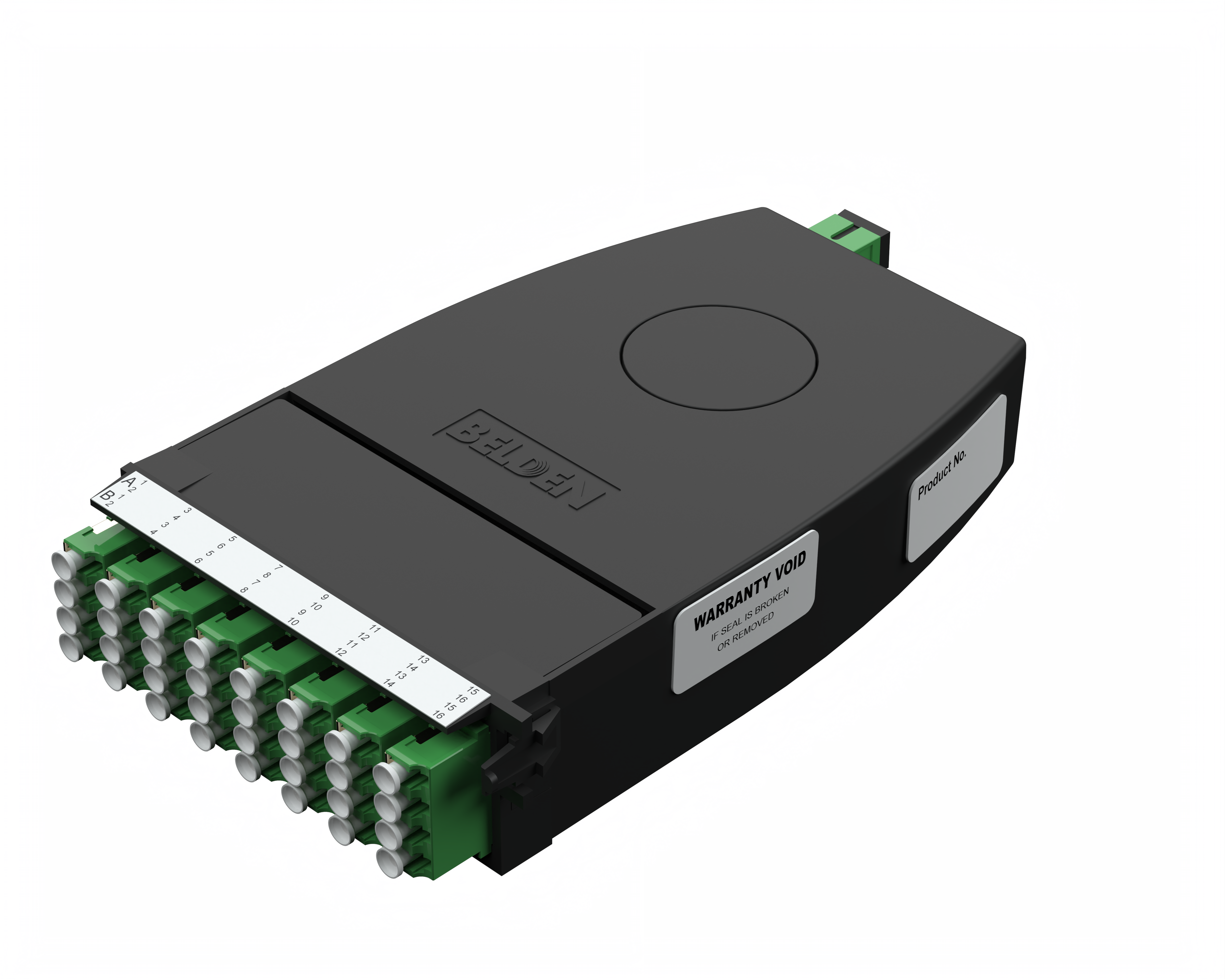

FX UHD Splitter Cassette OS2, 1x16
FX UHD Splitter Cassette, OS2, 1x16, 2 Splitters, SC/APC Input, LC/APC Output, Rear
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Environmental Space | Indoor |
|---|---|
| Suitable Applications | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
Construction
| Weight | 0.5 lbs |
|---|---|
| Overall Height | 1.5 in |
| Overall Width | 4.5 in |
| Overall Length | 7.4 in |
Fiber Cable Construction
| Fiber Type | OS2, G.657.A1, G.652.D |
|---|
Physical Specifications
| Max Capacity | 32 Fibers (Output) |
|---|
Inner Jacket
| Inner Jacket | Inner Jacket |
|---|
Optical Characteristics
| Wavelength | 1260-1650 NANOMETERS |
|---|
Mechanical Characteristics
| Front Connection | Static |
|---|---|
| Termination Style | Front |
Mechanical Tests
| Description |
|---|
Temperature Range
| Operating Temperature Range | -10°C To 60°C |
|---|---|
| Storage Temperature Range | -10°C To 60°C |
Product Material
Materials
| Description | Material | Color | Type |
|---|---|---|---|
| Housing | PC/ABS | Black | |
| Cover | Polycarbonate | Black | |
| Frame | PC/ABS | Black | Lead Frame |
| Adapter Output (Front) | Plastic - UL94V-0 | Green | LC-Quad w/ Internal Shutters |
| Adapter Input (Rear) | Plastic - UL94V-0 | Green | SC-Simplex/APC |
Transmission Specifications
| Splitter Configuration | 1 x 16 |
|---|---|
| IL Max (dB) | 14 |
| Uniformity Max (dB) | 1.2 |
| PDL Max (dB) | 0.3 |
| Directivity Min (dB) | -55 |
| RL Min (dB) | -55 |
Standards
| TIA/EIA Compliance | Telcordia GR-1209-CORE (splitters only), Telcordia GR-1221-CORE (splitters only) |
|---|---|
| MII Order #39 (China RoHS) | EUP 50 |
Related Part Numbers
| Related Parts | FX UHD & FXU Patch Panels, FX Patch Cords |
|---|
Product Notes
| Packaging | Individually packaged in a plastic shell, Shipped in cardboard box (14/box) |
|---|
History
| Update and Revision | Revision Number: 0.15 Revision Date: 10-23-2025 |
|---|
